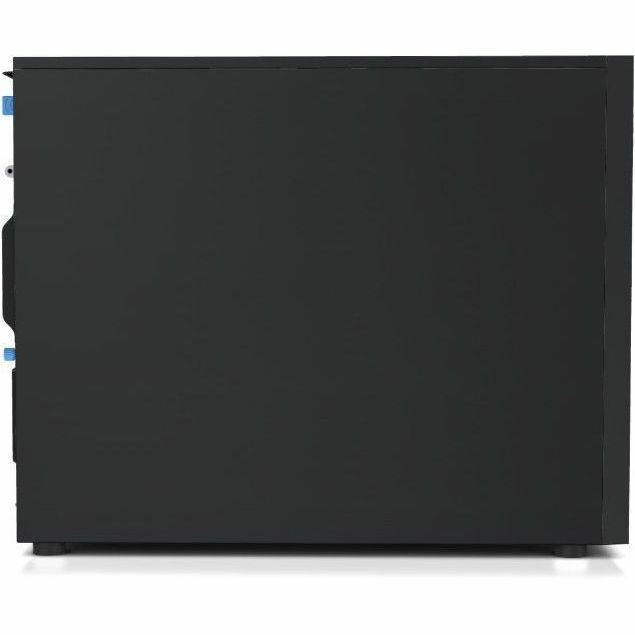

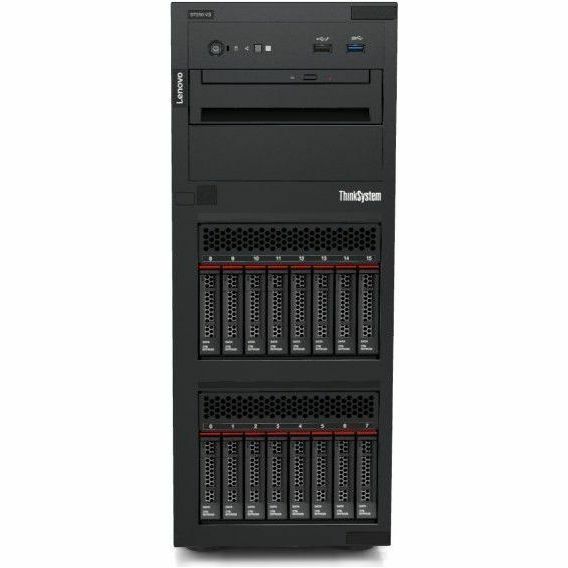

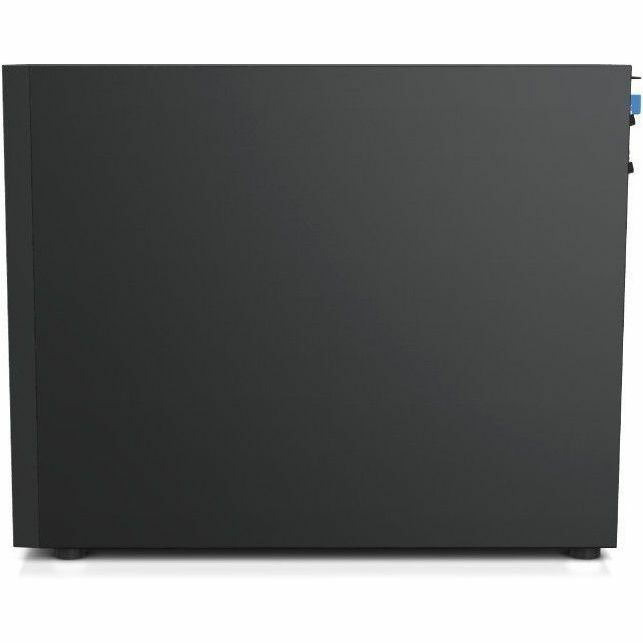

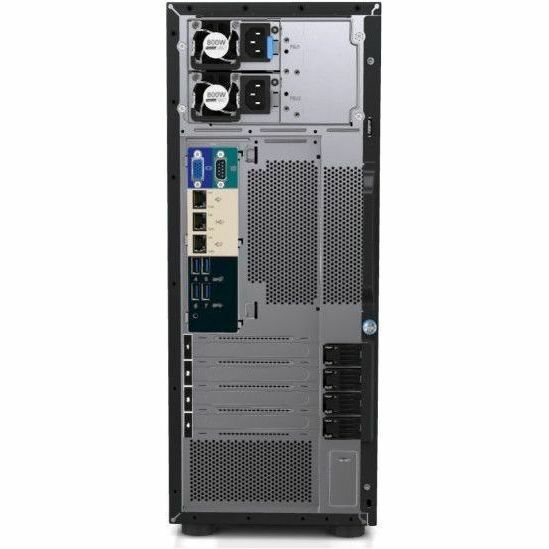

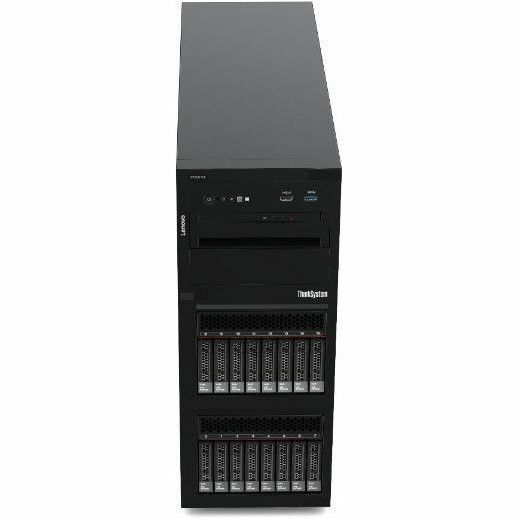

LENOVO 7DCEA01TNA ThinkSystem ST250 V3 55W 16G

The Lenovo ThinkSystem ST250 V3 is a mainstream 1-socket tower server that also be rack mounted as a rack server. It is ideal for small-to-medium businesses, remote offices, branch offices, banking and public sector. The server supports the new Intel Xeon E-2400 Series processors, formerly codenamed "Raptor Lake".

General Information
Manufacturer	Lenovo Group Limited
Manufacturer Part Number	7DCEA01TNA
Manufacturer Website Address	http://www.lenovo.com/us/en/
Brand Name	Lenovo
Product Line	ThinkSystem
Product Series	ST250 V3
Product Model	7DCEA01TNA
Product Name	ThinkSystem ST250 V3 7DCEA01TNA Server
Product Type	Server
Processor
Number of Processors Supported	1
Number of Processors Installed	1
Processor Type	Xeon
Processor Model	E-2434
Processor Core	Quad-core (4 Core)
Processor Speed	3.40 GHz
Cache	8 MB
Chipset
Chipset Manufacturer	Intel
Chipset Model	C266
Memory
Standard Memory	16 GB
Maximum Memory Supported	128 GB
Memory Technology	TruDDR5
Memory Clock Speed	4.80 GHz
Error Checking	ECC
Number of Occupied Memory Slots	1
Signal Processing	Unregistered (Unbuffered)
Controllers
Controller Type	12Gb/s SAS
Controller Model	5350-8i
RAID Supported	Yes
RAID Levels	0, 1, 5, 10, JBOD
I/O Expansions
Number of Total Expansion Bays	10
Number of External 5.25" Bays	2
Number of Internal 2.5" Bays	8
Number of SFF Bays	8
Hot Swappable Bays	Yes
Total Number of Expansion Slots	4
PCI Express Details	4x PCIe slots (x4, x16, x4, x4)
Display & Graphics
Graphics Controller Model	G200
Graphics Memory Capacity	16 MB
Network & Communication
Ethernet Technology	Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports	7
Number of USB 2.0 Ports	1
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	2
VGA	Yes
Number of VGA Ports	1
Remote Management	Yes
Remote Management Controller	XClarity Controller
Operating System
Operating System Supported	Ubuntu 24.04 LTS x64
Operating System Supported	Red Hat Enterprise Linux 9.3
Operating System Supported	Red Hat Enterprise Linux 9.2
Operating System Supported	Windows Server 2022
Operating System Supported	Red Hat Enterprise Linux 8.8
Operating System Supported	Red Hat Enterprise Linux 8.10
Operating System Supported	Red Hat Enterprise Linux 8.9
Operating System Supported	SUSE Linux Enterprise Server 15 SP5
Operating System Supported	Ubuntu 22.04 LTS x64
Operating System Supported	Red Hat Enterprise Linux 9.4
Operating System Supported	SUSE Linux Enterprise Server 15 SP6
Power Description
Input Voltage	230 V AC
Input Voltage	120 V AC
Number of Power Supplies Supported	2
Number of Power Supplies Installed	1
Plug/Connector Type	C13
Maximum Power Supply Wattage	300 W
Power Source	Power Supply
Physical Characteristics
Form Factor	Tower
Height	17.5"
Width	6.9"
Depth	22.8"
Weight (Approximate)	34.86 lb
Miscellaneous
Package Contents	ThinkSystem ST250 V3 7DCEA01TNA Server Documentation Flyer Power Cord
Security Features	Power-on password Administrator's Password Trusted Platform Module, supporting TPM 2.0. Padlock loop and Kensington Cable Slot Chassis Intrusion Switch
Energy Star	Yes
Environmentally Friendly	Yes
Environmental Certification	Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze)
Environmental Certification	China Environmental Labeling Program (CELP)
Environmental Certification	GREENGUARD
Energy Efficiency Certification	ENERGY STAR 4.0
Energy Efficiency Certification	China Energy Conservation Program (CECP)
Energy Efficiency Compliance	Energy-related Products Directive Lot 9 (ErP Lot 9)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	3 Year
Additional Warranty Information	Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD)
