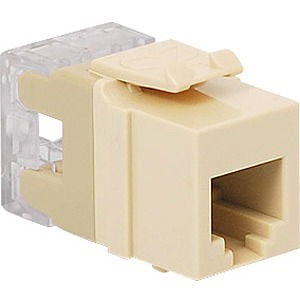

IC1076F0AL ICC Voice, RJ-11/14/25, HD, Modular Connector, Almond
Mfg Part Number: IC1076F0AL , Item #: 494240
, PO and Wire.
Overview:
The voice High Density (HD) modular jacks, RJ-11 keystone jack, is 6-position 6-conductor (6P6C). It's HD design offers a smaller rear footprint, maximizing space in confined work areas, and allows the use of more modular jacks within the same space. The voice High density modular jacks is designed for business system applications. The IDC accepts 22-24 AWG solid wire and is suitable for use with Apple Talk, DSL, Voice, and Arcnet applications. Compatible with RJ11/14 and 25 modular jacks and plugs.
Feature:
? Designed for all voice connectivity applications
? PCB technology provides maximum performance and superior signal quality
? Engineered to provide 110 IDC termination reducing installation time
? Reduced rear footprint allows for greater connectivity density and provides for more port configurations in a smaller area
? Includes an integrated USOC/UTP color wiring diagram
? Compatible with all ICC faceplates, Decorex inserts, surface mount boxes, and blank patch panels
? Works with ICC telephone line cords
? Installation instructions included
? UL listed
Specification:
1. RJ-11 Voice Module:
A. Electrical:
Current rating: 1.5 amps max.
Voltage rating: 150 volts alternating
Dielectric withstanding voltage: 1000 volts rms, 60Hz
Insulation resistance: >10 mohms
B. Mechanical:
Mated force: 5 lbs max.
Unmated force: 5 lbs max.
Plug retention force: 20 lbs min.
Durability: 750 cycles
C. Physicals:
Housing: ABS, UL 94V-0
Contact: Phosphor bronze alloy plated with 50 micro inches of gold over 70~100 micro inches of nickel
Gold plating: 1.27 micron/50 micro inch min.
Connector: insulation displacement connector (IDC) accepts 22~24 AWG solid wire
D: Colors:
XX: AL-Almond, BK-Black, BL-Blue, GY-Gray, IV-Ivory, OR-Orange, PR-Purple, RD-Red, & WH-White
2. Termination cap:
A. Material: PC, UL 94V-0
B. Color: Clear
| General Information | |
| Manufacturer | ICC |
| Manufacturer Part Number | IC1076F0AL |
| Manufacturer Website Address | http://www.icc.com |
| Brand Name | ICC |
| Product Model | IC1076F0 |
| Product Name | Voice, RJ-11/14/25, HD, Modular Connector, Almond |
| Packaged Quantity | 1 |
| Product Type | Phone Connector |
| Technical Information | |
| Connector Type | RJ-11 Phone - Female |
| Connector Details | 1 x RJ-11 Phone Female |
| 110 Block | Yes |
| Contact Plating | Gold |
| Contact Plating | Phosphor Bronze |
| Physical Characteristics | |
| Product Color | Almond |
| Product Material | Acrylonitrile Butadiene Styrene (ABS) |
| Miscellaneous | |
| Package Contents |
|
| Compatibility |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
