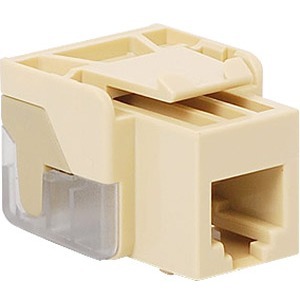

IC1076V0AL ICC Voice, RJ-11/14/25, EZ Modular Connector, Almond
Mfg Part Number: IC1076V0AL , Item #: 473408
, PO and Wire.
Overview:
The EZ® voice modular jacks, RJ-11 keystone jacks 6-position 6-conductor (6P6C), is designed for business system applications. The modular jacks utilizes IDC termination, accepts 22-24 AWG solid wire. Termination can be done using 110 punch down tool, or by using the JackEasy termination tool for fast and easy termination. For use with applications: Apple Talk, Voice, and Arcnet. Compatible with RJ11/14 and 25 keystone jacks and plugs.
Feature:
- Designed for all voice connectivity applications
- Lead frame technology provides maximum performance and superior signal quality
- Terminate with 110 punch down tool ICACSPDT00
- Includes an integrated USOC/UTP color wiring diagram
- Compatible with all ICC faceplates, Decorex inserts, surface mount boxes, and blank patch panels
- Works with ICC telephone line cords
- Installation instructions included
- UL listed
Specification:
1. RJ-11 Voice Module:
A. Electrical:
Current rating: 1.5 amps max.
Voltage rating: 150 volts alternating
Dielectric withstanding voltage: 1000 volts rms, 60Hz
Insulation resistance: >10 mohms
B. Mechanical:
Mated force: 5 lbs max.
Unmated force: 5 lbs max.
Plug retention force: 20 lbs min.
Durability: 750 cycles
C. Physicals:
Housing: ABS, UL 94V-0
Contact: Phosphor bronze alloy plated with 50 micro inches of gold over 70~100 micro inches of nickel
Gold plating: 1.27 micron/50 micro inch min.
Connector: insulation displacement connector (IDC) accepts 22~24 AWG solid wire
D: Colors:
XX: AL-Almond, BK-Black, BL-Blue, GN-Green, GY-Gray, IV-Ivory, OR-Orange, PR-Purple, WH-White, & YL-Yellow
2. Termination cap:
A. Material: PC, UL 94V-0
B. Color: Clear
| General Information | |
| Manufacturer | ICC |
| Manufacturer Part Number | IC1076V0AL |
| Manufacturer Website Address | http://www.icc.com |
| Brand Name | ICC |
| Product Model | IC1076V0AL |
| Product Name | Voice, RJ-11/14/25, EZ Modular Connector, Almond |
| Product Type | Phone Connector |
| Technical Information | |
| Connector Type | RJ-11 Phone - Female |
| Connector Details | RJ-11 Phone Female |
| Contact Plating | Gold |
| Contact Plating | Phosphor Bronze |
| Physical Characteristics | |
| Product Color | Almond |
| Product Material | Acrylonitrile Butadiene Styrene (ABS) |
| Miscellaneous | |
| Compatibility | UL |
| Environmentally Friendly | Yes |
