APC
APC SRTL5KTF SMART-UPS ULTRA ON LINE SRTL 5KVA ISOLATION/STEP-DOWN TRANSFORM
Mfg Part Number: SRTL5KTF , Item #: 4896731
Special Note: Feb 12, 2024
NCNR; If you do not have loading facility, please contact our CST for special handling service.
Image may not reflect the actual item.
Price: $1,635.12
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 07, 2025
No Sales Tax except these states
, PO and Wire.

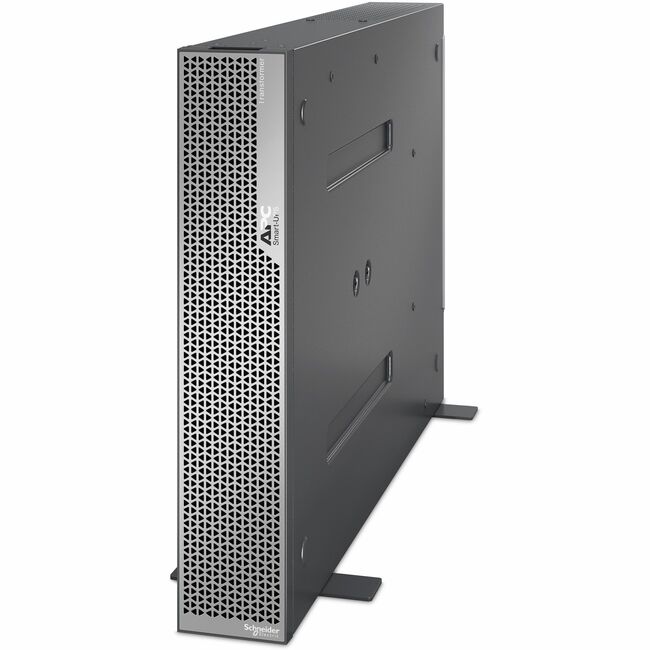

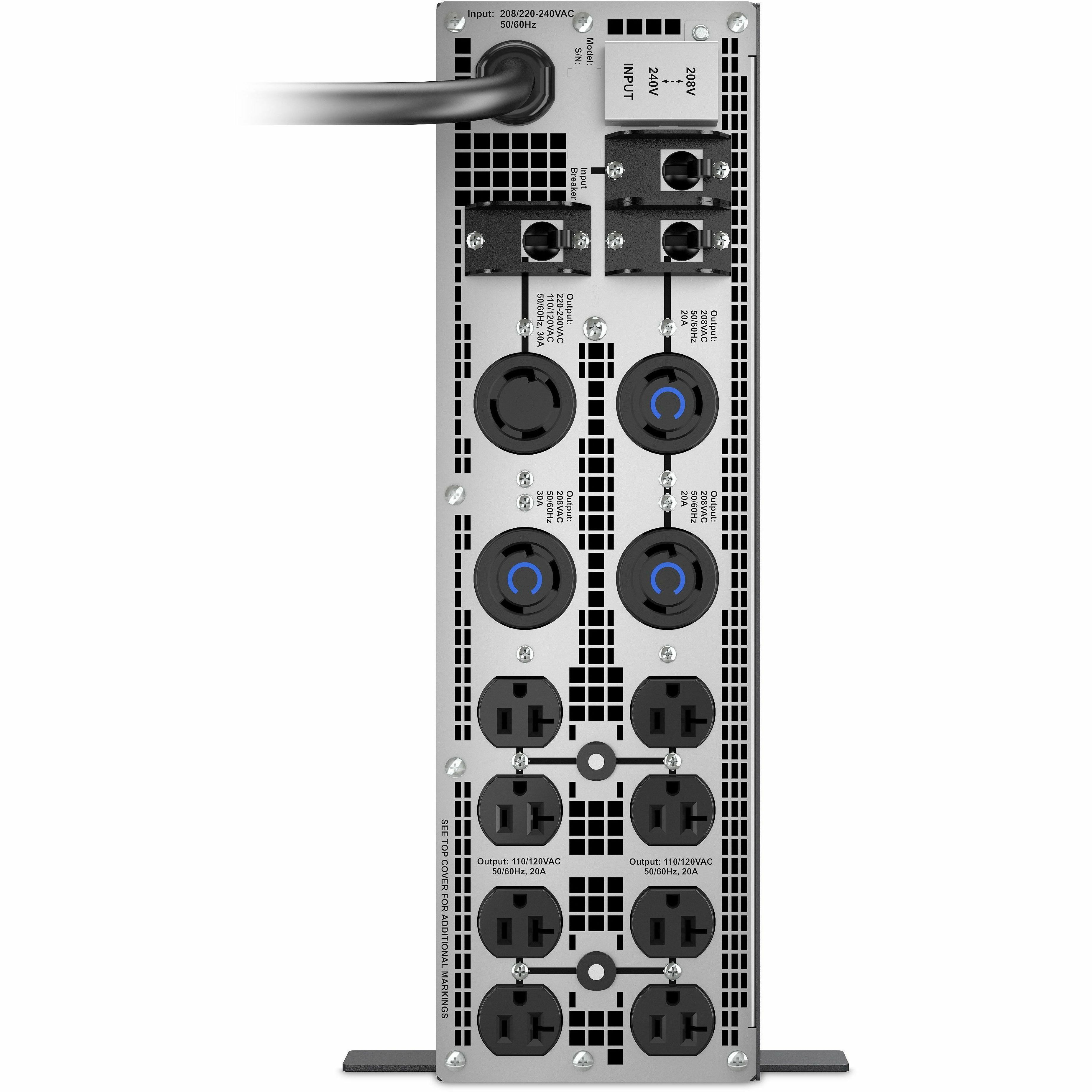

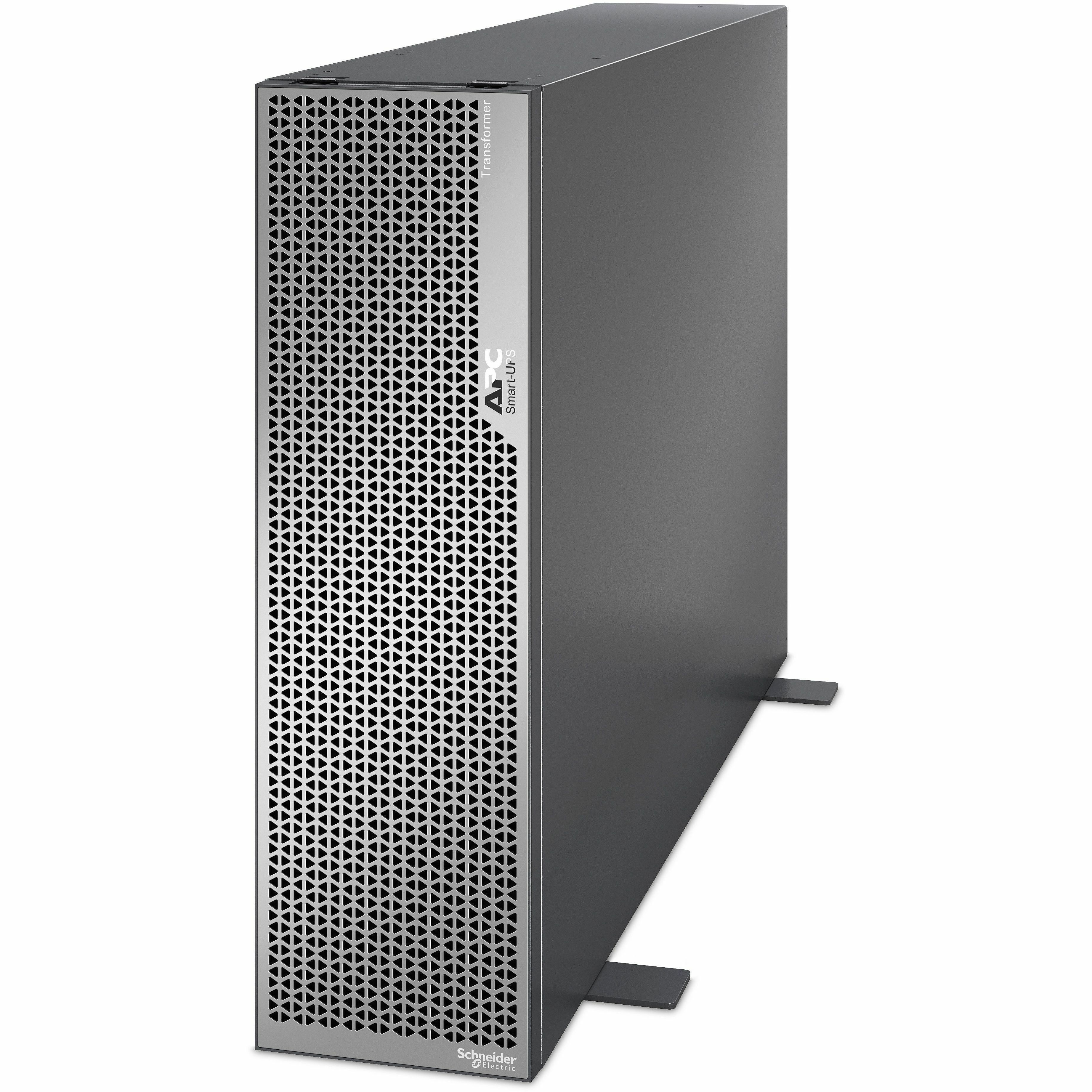

The Smart-UPS Ultra SRTL 5kW, 3U rack/tower convertible, Step-Down Transformer lets you connect multiple voltage equipment to your existing SRTL5K power protection. User Selectable: 110V/ 120V/ 208V/ 240V, depending on the UPS output voltage and the Switch position. Connections: (2) L6-20R, (8) 5-20R, (1) L6-30R, (1) L14-30R Ships as tower Configuration. Install the step-down transformer to the left/above the compatible STLR 5kW UPS. Rackmount configuration is available with SRTRK2 rail kit accessory, sold separately. Standard warranty, 5 years repair or replace.
Main Specification
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SRTL5KTF |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS Ultra |
| Product Name | Smart-UPS Ultra 5kVA Tower UPS |
| Packaged Quantity | 1 |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L6-30P |
| Receptacle Type | NEMA L6-30P |
| Receptacle Detail | 1 x NEMA L14-30R |
| Receptacle Detail | 1 x NEMA L6-30R |
| Receptacle Detail | 8 x NEMA 5-20R |
| Receptacle Detail | 2 x NEMA L6-20R |
| Cord Length | 3 ft |
| Power Description | |
| Load Capacity (VA) | 5000 VA |
| Input Voltage | 208 V |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Storage Relative Humidity | 95% |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 17" |
| Width | 5.1" |
| Depth | 26" |
| Form Factor | Tower |
| Weight (Approximate) | 125 lb |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | CSA |
| Product Take Back Program | No |
| Mercury Free | Yes |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=559852796&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=559852796&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2311011_V1 |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI2311011_V1 |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5 years repair or replace |
