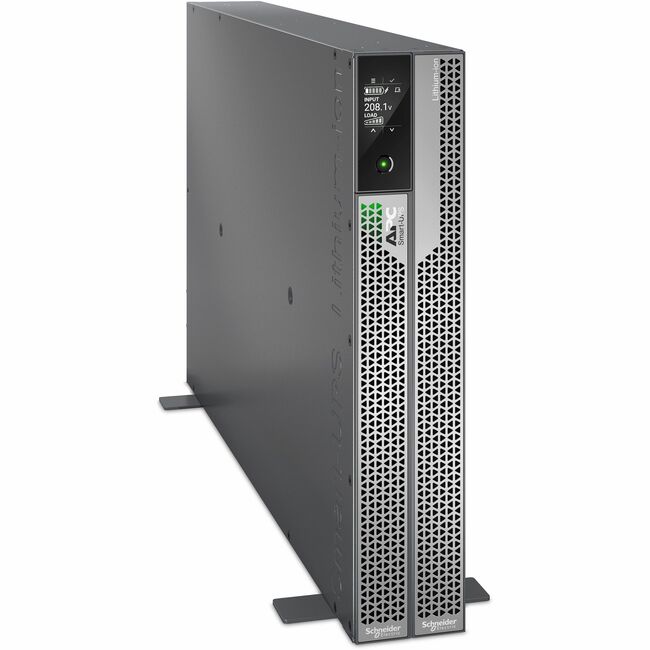

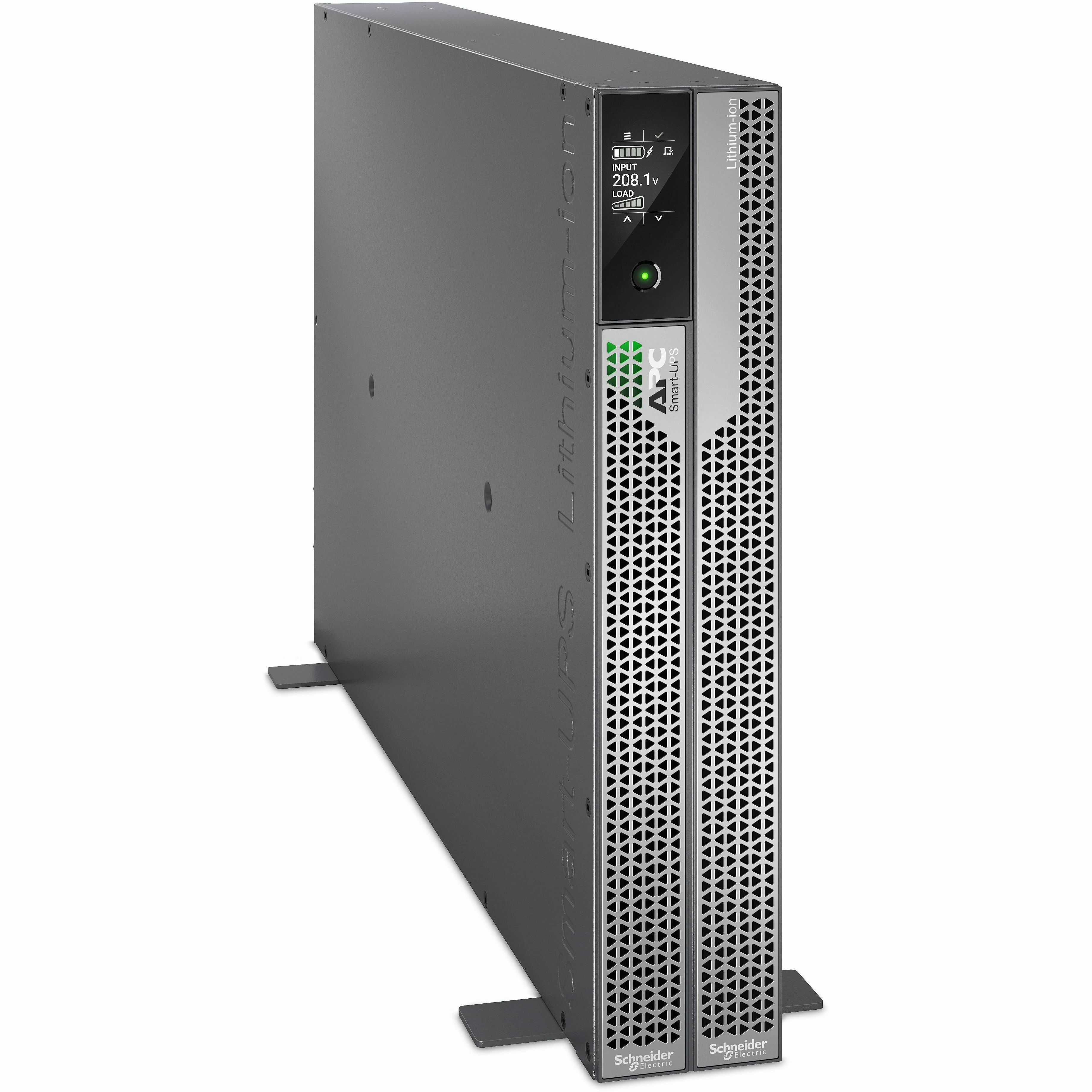

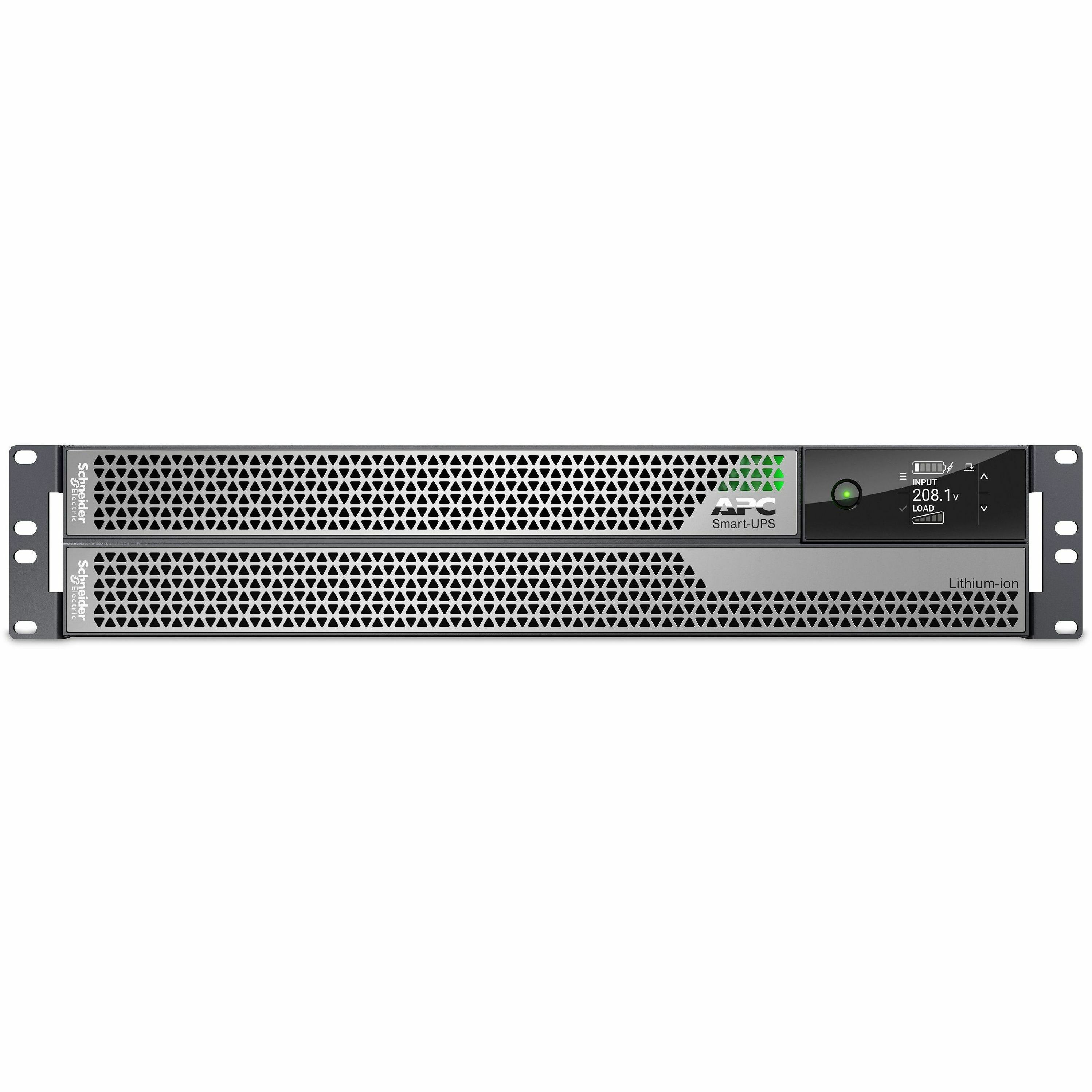

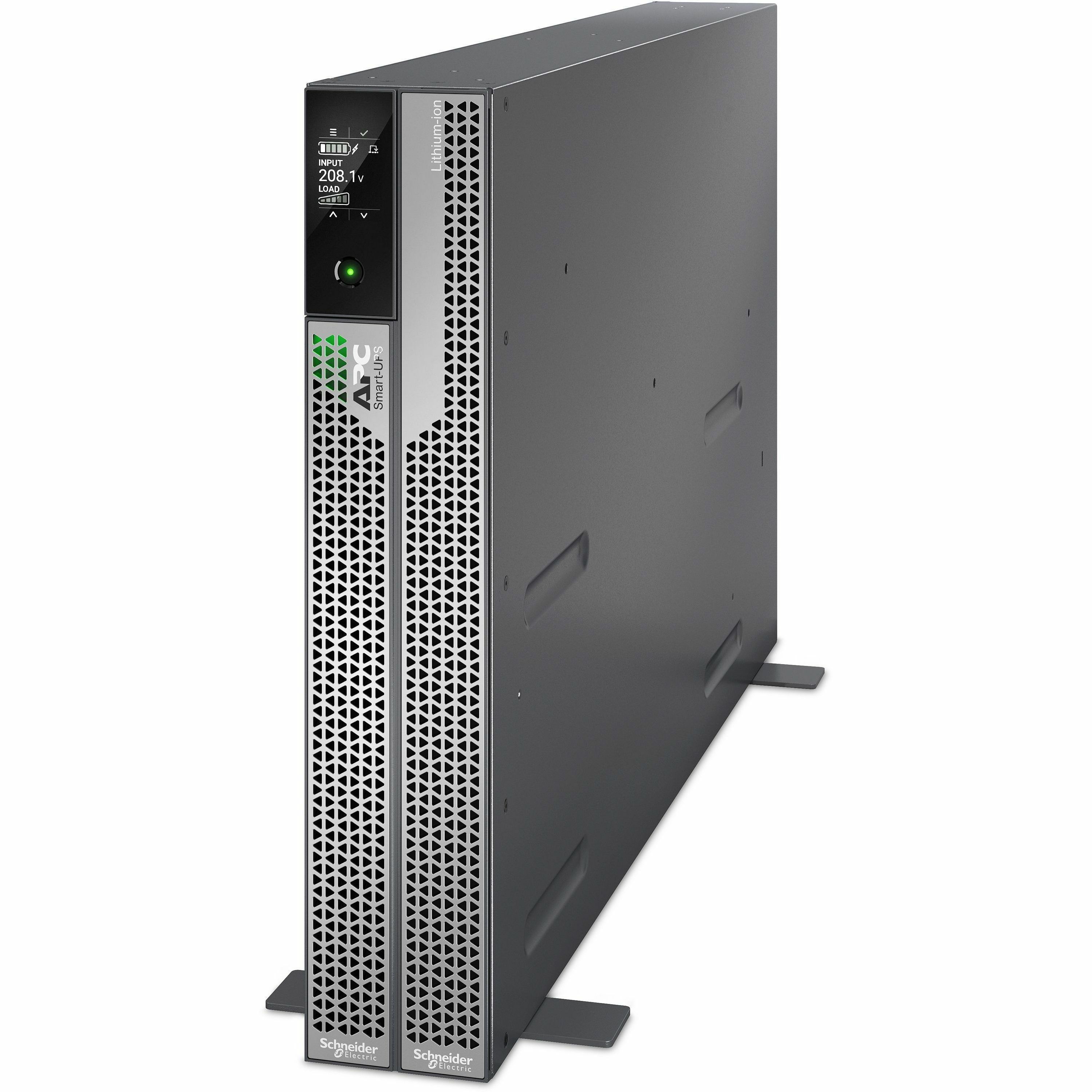

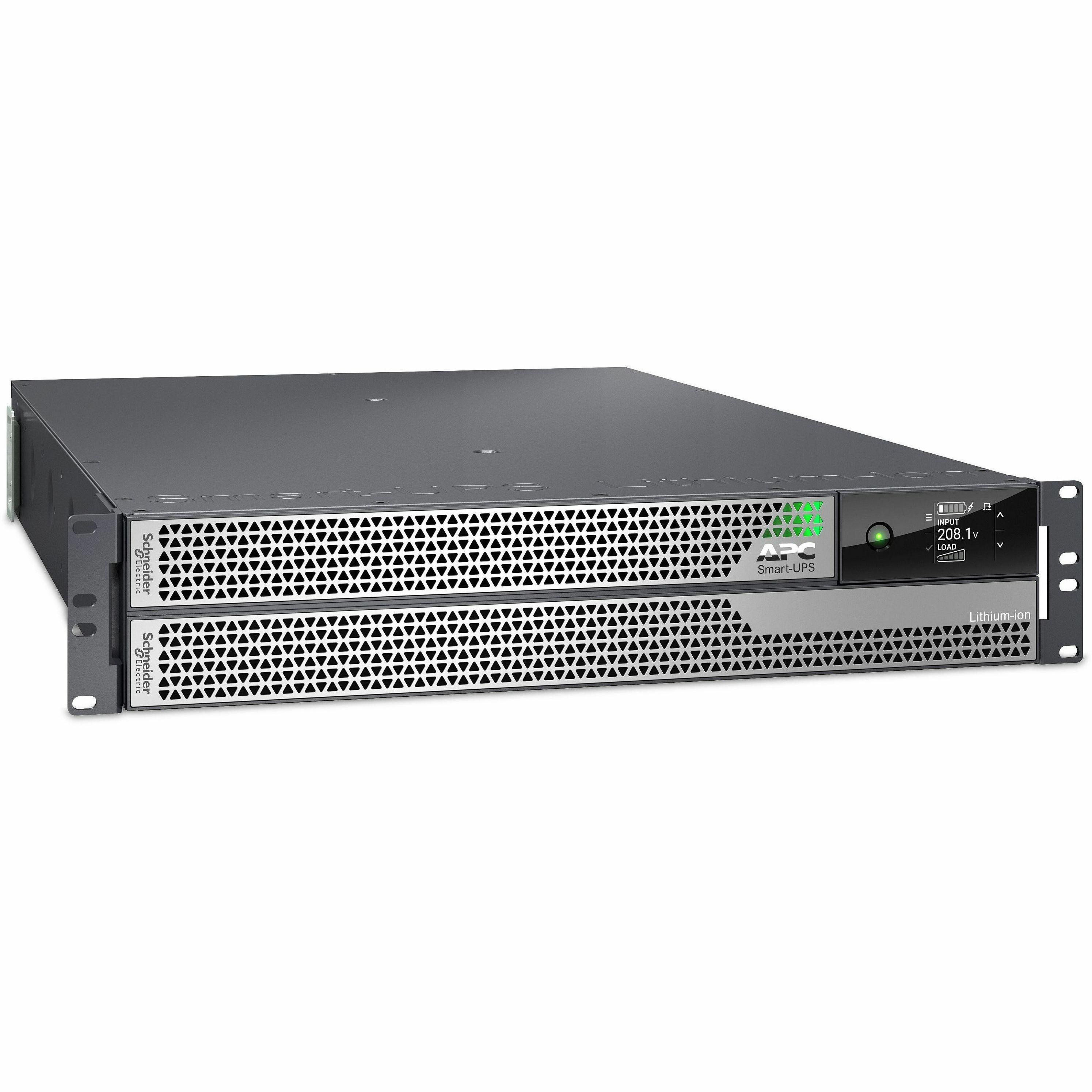

APC SRTL5KRM2UT SMART-UPS ULTRA ON-LINE LITHIUM ION 5KVA/5KW 2U RACK/TOWER 208V

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRTL comes with NEMA L6-30P input, 2x NEMA L6-20R and 2x NEMA L6-30R outlets. The Smart-UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Serial Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery. The SRTL delivers clean power with zero transfer time for critical or sensitive devices. Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications.

More from the Manufacturer

General Information
Manufacturer	Schneider Electric SA
Manufacturer Part Number	SRTL5KRM2UT
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Name	Smart-UPS Ultra On-Line Lithium ion, 5KVA/5KW, 2U Rack/Tower, 208V
Packaged Quantity	4 Pack
Product Type	Double Conversion Online UPS
Technical Information

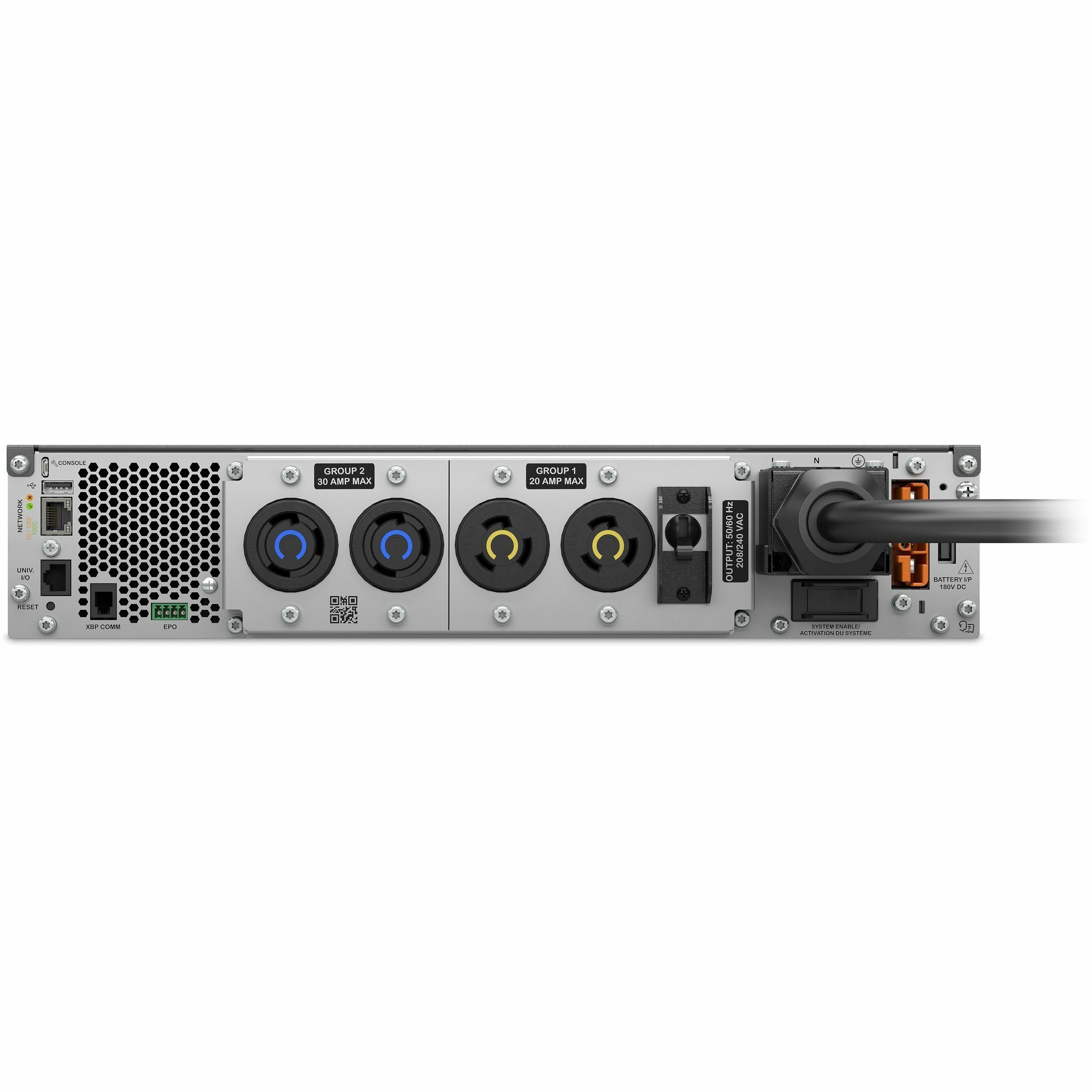

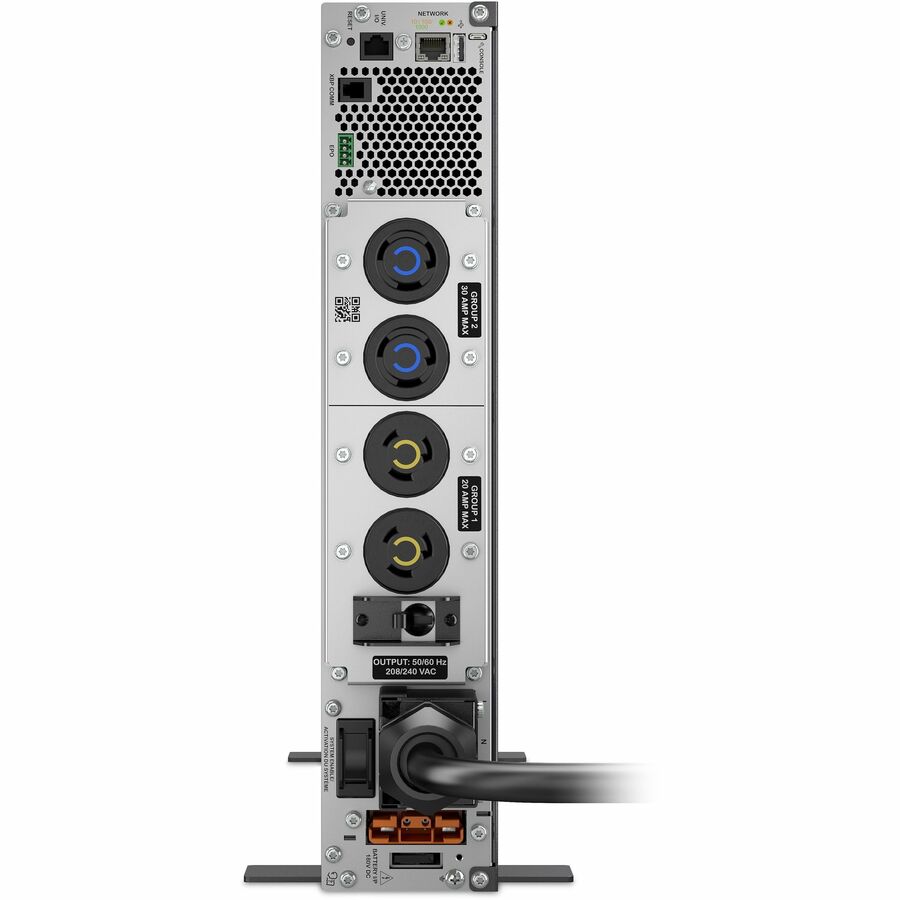

Plug/Connector Type	NEMA L6-30P
Receptacle Type	NEMA L6-30P
Receptacle Detail	2 x NEMA L6-20R
Receptacle Detail	2 x NEMA L6-30R
Cord Length	10 ft
Power Description
Load Capacity (VA)	4900 VA
Load Capacity (Watt)	5000 W
Input Voltage	208 V
Output Voltage	208 V AC
Input Frequency	70 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	1260 J
Controls/Indicators
Status Indicators	Multi-function LCD Status and Control Console
Interfaces/Ports
EPO Port	Yes
USB (HID Compliant) Port	No
Battery Information
DC System Voltage	180 V DC
Battery Chemistry	Lithium Ion (Li-Ion)
Battery Energy	2592 kJ
Battery Life	10 Year
Typical Battery Recharge Time	1.50 Hour
Environmental Conditions
Maximum Operating Temperature	104°F (40°C)
Maximum Operating Elevation	10000 ft
Storage Relative Humidity	0% - 95%
Sound Emission (A-Weighted)	55 dB(A)
Thermal Dissipation	306.85 W
Physical Characteristics
Color Family	Silver
Product Color	Silver Gray

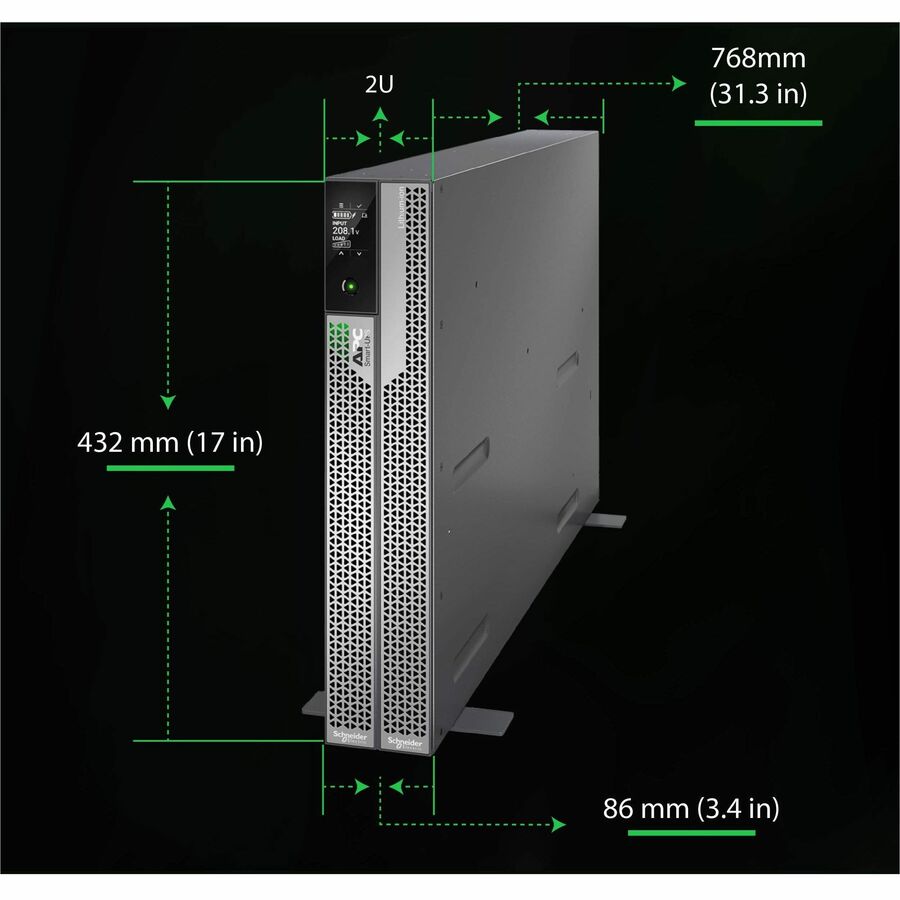

Height	3.4"
Width	17"
Depth	27.6"
Rack Height	2U
Form Factor	Rack/Tower
Weight (Approximate)	64.37 lb
Miscellaneous
Package Contents	Smart-UPS Ultra On-Line Lithium ion, 5KVA/5KW, 2U Rack/Tower, 208V 1 x CD (Software and Documentation) Network Cable Rack Mounting Brackets
Certifications & Standards	ENERGY STAR V2.0 (USA)
Energy Star	Yes
Product Take Back Program	No
Mercury Free	Yes
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=555124200&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=555124200&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP2311011_V1
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI2311011_V1
Energy Star URL	https://www.energystar.gov/products/uninterruptible_power_supplies
REACH free of SVHC	No
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin	Philippines
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	5 Year
Additional Warranty Information	5 years
