BLACK BOX

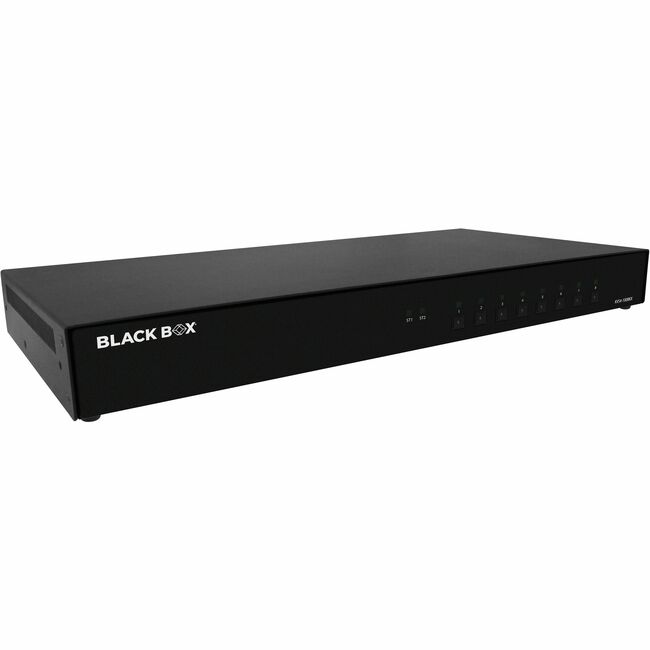

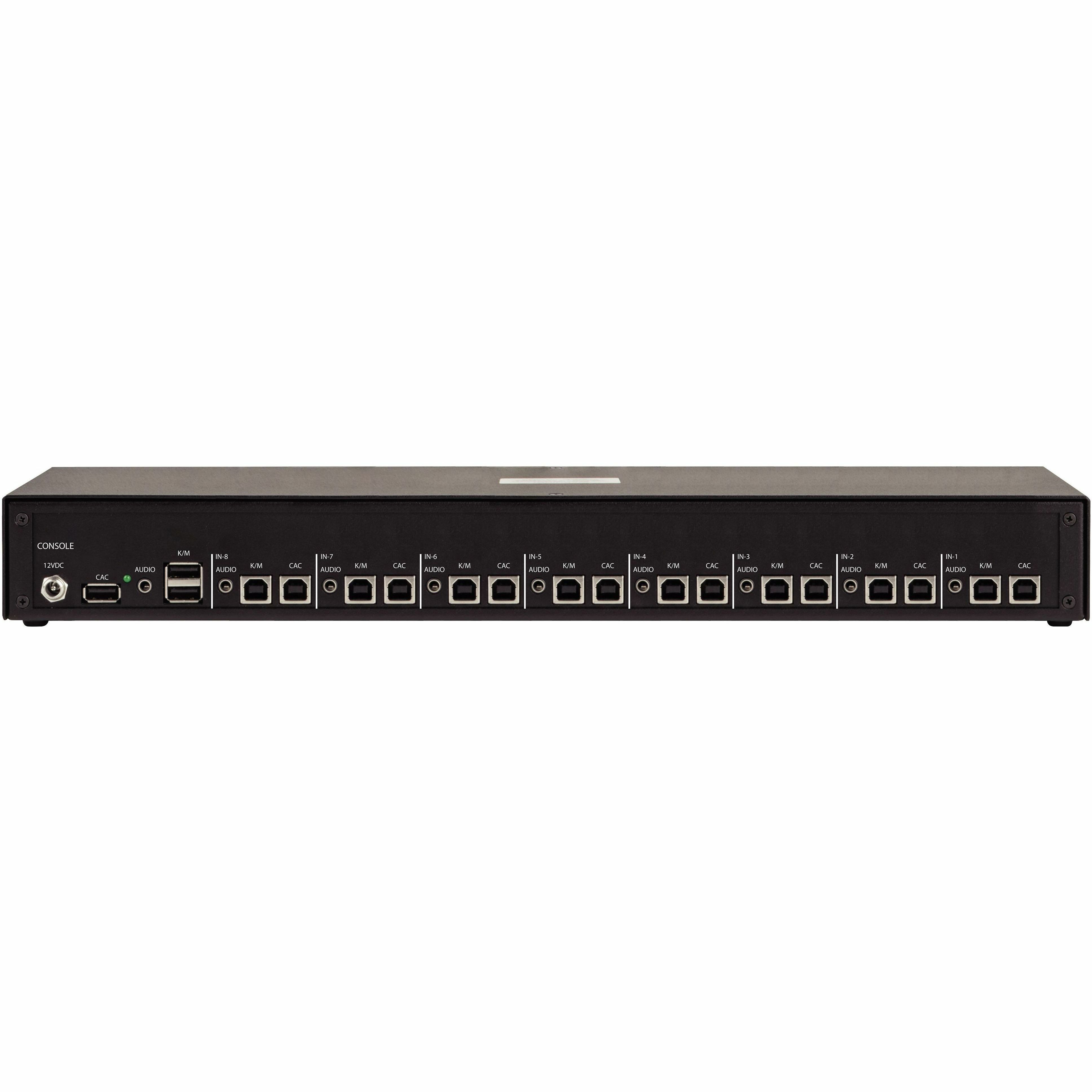

BLACK BOX KVS4-1008KX KM SWITCH, NIAP 4.0 CERTIFIED - 8-PORT, CAC

Mfg Part Number:  KVS4-1008KX
Image may not reflect the actual item.
Price: $1,637.21 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Oct 02, 2025
No Sales Tax except these states
, PO and Wire.

The Black Box Secure KM switches allow a single operator using just one keyboard and mouse to control up to four or eight computers simply by moving the mouse cursor from monitor to monitor, saving time, money, and space on the desk. Connect the switch to all computers that need to be accessed and all monitors directly to the computers. The switches are ideal for secure command and control applications, government agencies, 911 emergency call centers, and many more. The Secure KM Switches provide peace of mind knowing that each connection is secure. Options include 4-port or 8-port switches with CAC support.

The Secure KM Switches protect your sensitive data using the latest technology. The switches have isolated channels to ensure that data is not leaked between secure ports and the outside world. To prevent eavesdropping attempts through vulnerable devices, the switches support uni-directional data flow from computer to peripheral. Mechanical, electrical, and optical isolation stop hacking and data leaks in environments where security is critical. Plus, secure EDID learning prevents unwanted and unsecure data from being transmitted through DDC lines. The Secure KM Switches use protected firmware to keep intruders from re-programming or reading the firmware. Keyboard/internal cache wiping and chassis intrusion protection provide even more security. The Secure KM Switches also use anti-tamper switches and tamper-evident seals to shield your confidential data.

Why Secure KM

Secure KM Switches from Black Box are NIAP PP 4.0 certified and equipped with the highest security features that meet today's Information Assurance safe control standards. The switches contain unique hardware configurations that prevent data leakage between PCs and connected peripherals eliminating potential cyber threats.


Main Specification
General Information
Manufacturer Black Box Corporation
Manufacturer Part Number KVS41008KX
Manufacturer Website Address http://www.blackbox.com
Brand Name Black Box
Product Line Secure
Product Model KVS4-1008KX
Product Name Secure NIAP 4.0 Certified KM Switch - CAC
Packaged Quantity 1
Product Type KM Switchbox
Technical Information
Connectivity Technology Wired
Number of Computers Supported 8
Device Type Secure KM
Features Anti-tamper Switch
Features Intrusion Detection
Interfaces/Ports
USB Yes
Number of USB Ports 19
Environmental Conditions
Minimum Operating Temperature 32°F (0°C)
Maximum Operating Temperature 104°F (40°C)
Power Description
Input Current 3 A
Physical Characteristics
Form Factor Desktop
Height 1.8"
Width 12.6"
Depth 6.7"
Weight (Approximate) 4.20 lb
Miscellaneous
Package Contents
  • 1x Secure KM Switch
  • 1x 12 VDC Wallmount Supply (ICP36-120-3000) with US, EU, UK, and AU adapter clips
  • 1x Set of 4 rubber feet (already be attached)
  • 1x Quick Start Guide


Country of Origin United States
TAA Compliant Yes
Warranty
Limited Warranty 3 Year
Additional Warranty Information

3 Year Double Diamond™ Warranty (Standard)
