BLACK BOX
BLACK BOX KVSC-16 ENABLES CONTROL OF A SECURE KVM SWITCH FROM JUST ONE USB CABLE WITH AN OPTIONAL
Mfg Part Number: KVSC-16 , Item #: 4215235
, PO and Wire.

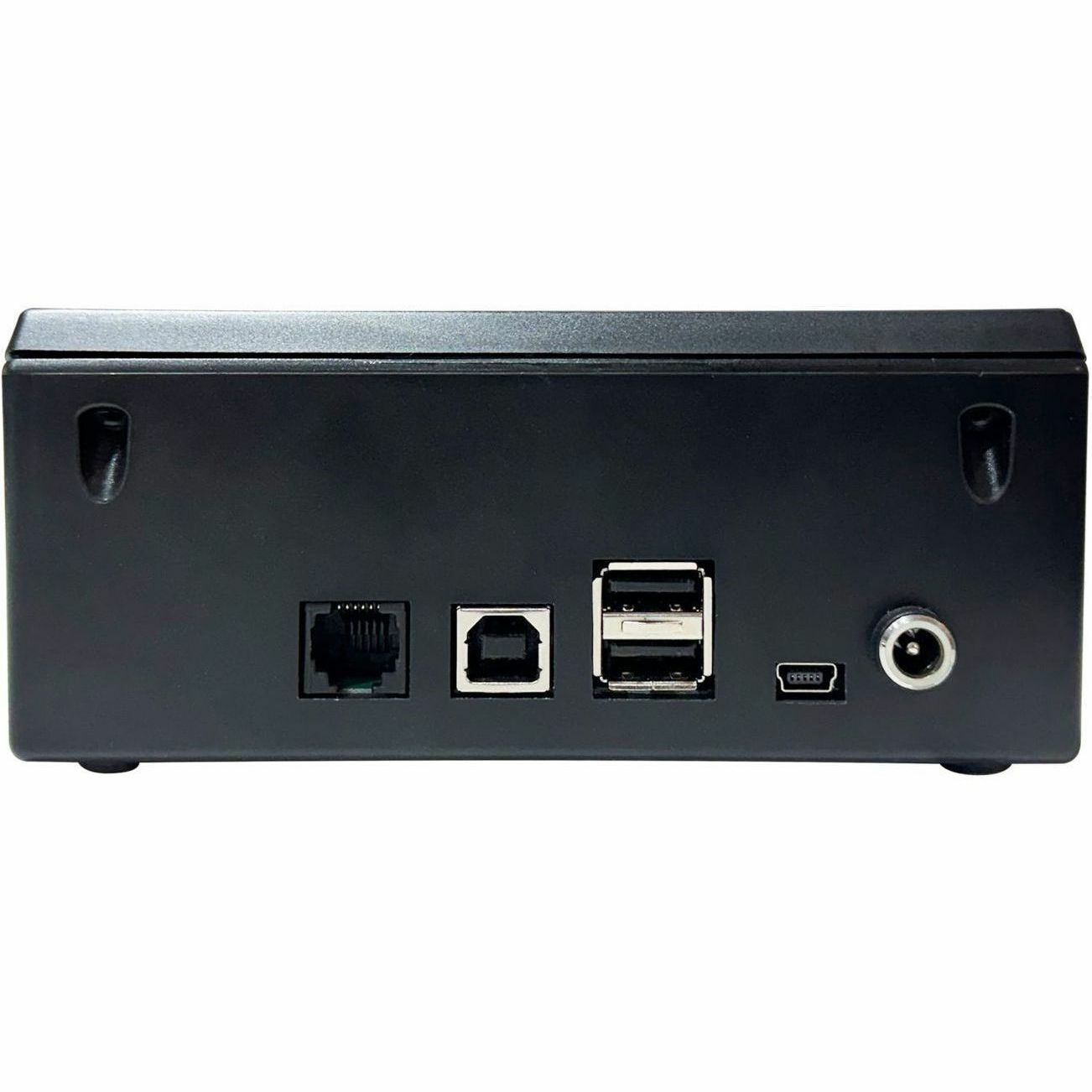

Perfect for government operations, defense applications, secure control rooms in airports and other transportation hubs, medical facilities, banks, factories, and more, the Touchscreen Controller, KVM enables control of a Secure KVM Switch from just one USB cable. The Controller is compatible with any new switch from the existing Black Box Secure KVM and KM product offering. Control your switch from a keyboard/mouse located up to 30ft (9m) away while protecting your valuable data with this secure solution.
Visualize Your Connection
The Touchscreen Controller clearly shows the active computer selection and features a color LCD Touchscreen display with a backlight for clear and efficient switching. Instantly synchronize the controller to the switch via the switch's front-panel indicators.
Automatic Port Detection
Connect to any secure switch, up to 16 channels. The controller automatically detects the number of ports.
Easy Channel Switching
Easily switch between channels and activate CAC up to 30ft (9m) away from the switch.
Supports Keyboard/Mouse Extension
Control the connected PCs up to 30ft (9m) away from the keyboard/mouse.
Create a Futureproof, Hybrid Installation
The Touchscreen Controller can easily be integrated in the future to work seamlessly between Secure and Non-Secure KVM Switches. Instantly synchronize the controller to the switch via the switch's front-panel indicators. Leverage RS-232 to customize settings for future control of other devices.
| General Information | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KVSC-16 |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Line | Secure |
| Product Name | Secure KVM Touchscreen Controller |
| Product Type | KVM Switchbox |
| Technical Information | |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 30 ft |
| Device Type | Secure KVM |
| Features | LED Indicator |
| Video | |
| Maximum Video Resolution | 320 × 480 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 4 |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Power Description | |
| Input Current | 3 A |
| Physical Characteristics | |
| Height | 2.3" |
| Width | 5.4" |
| Depth | 3.9" |
| Weight (Approximate) | 6.72 oz |
| Miscellaneous | |
| Package Contents |
|
| Warranty | |
| Limited Warranty | 3 Year |
