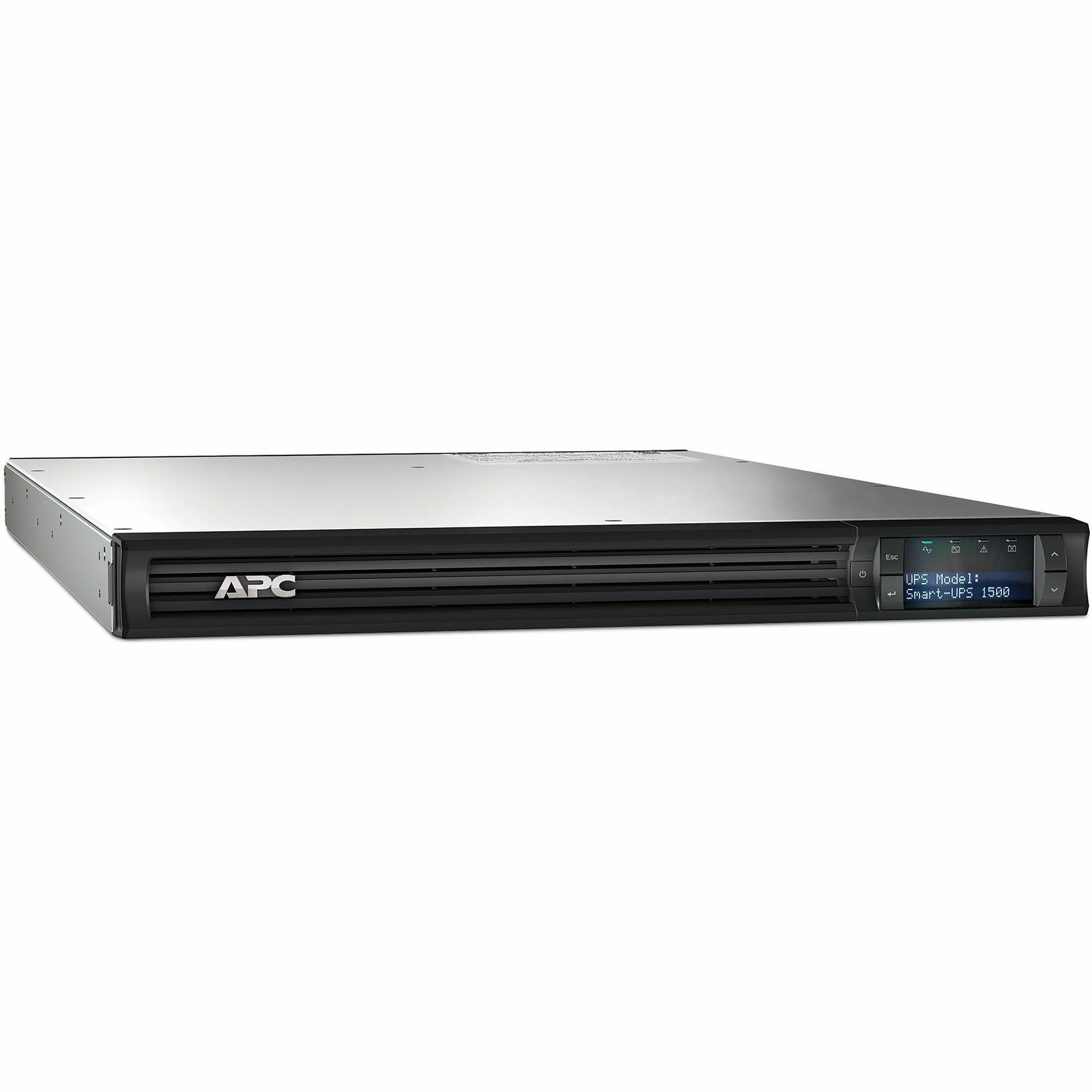

SMT1500RM1UC APC SMART_UPS WITH SMARTCONNECT 1500VA RN 1U 120V

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1440VA line interactive 1U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with 4 NEMA 5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional NMC purchase that enables network-based UPS monitoring & management via PowerChute Network Shutdown and the ability to connect to EcoStruxure IT or third-party management platform. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.

More from the Manufacturer

General Information
Manufacturer	Schneider Electric SA
Manufacturer Part Number	SMT1500RM1UC
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS
Product Series	SMT
Product Name	Smart-UPS SMT 1500VA Rack-mountable UPS
Packaged Quantity	1
Product Type	Line-interactive UPS
Technical Information
AVR	Yes
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15P

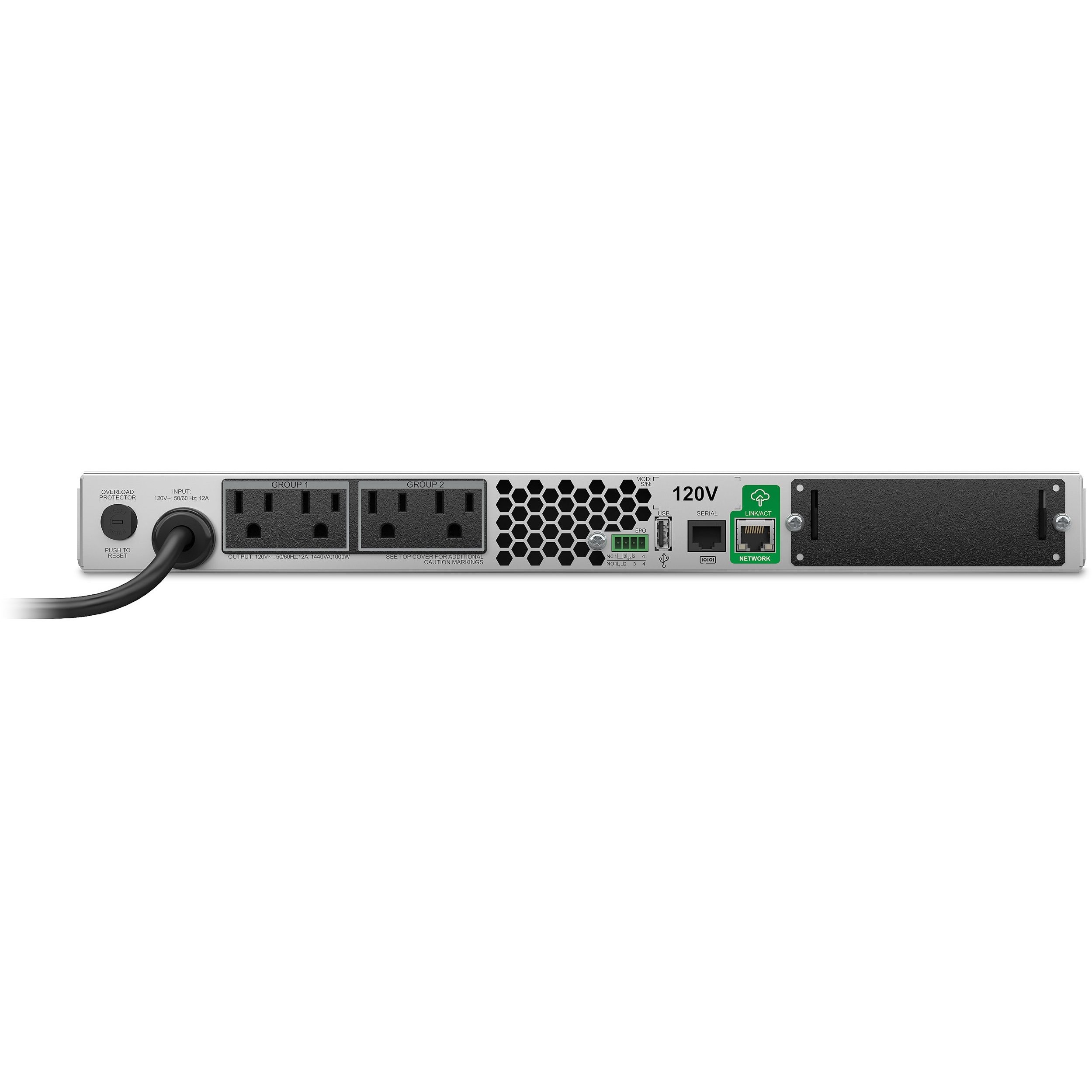

Receptacle Detail	4 x NEMA 5-15R
Cord Length	8 ft
Transfer Time	4 ms
Application/Usage	Critical System
Application/Usage	Network Closet
Application/Usage	Education
Application/Usage	Electronic
Application/Usage	Server
Application/Usage	Switch
Application/Usage	Edge Computing
Application/Usage	Healthcare
Application/Usage	Router
Application/Usage	Storage
Application/Usage	Network Device
Application/Usage	Business
Application/Usage	POS
Application/Usage	Hub
Application/Usage	VoIP
Application/Usage	IT
Application/Usage	Retail
Power Description
Load Capacity (VA)	1440 VA
Load Capacity (Watt)	1000 W
Input Voltage	120 V
Input Voltage Range	93.5 V AC - 143 V AC
Input Voltage Range	85 V AC - 155 V AC
Input Current	12 A
Output Voltage	120 V AC
Input Frequency	60 Hz
Output Frequency	60 Hz
Waveform Type	Sine Wave
Surge Energy Rating	645 J
Input Power Factor	0.7
Display & Graphics
Display	LCD
Management
Network Management	SmartConnect
Alarm	Configurable Delay
Alarm	On Battery
Alarm	Low Battery
Controls/Indicators
Status Indicators	Console d'état et de contrôle LCD multifonction
Interfaces/Ports
Serial Port	Yes
Network (RJ-45)	Yes
USB	Yes
EPO Port	Yes
Battery Information
Battery Chemistry	Lead Acid
Battery Size	36V
Battery Capacity	54000 mAh
Battery Energy	1054.8 kJ
Backup/Run Time (Full Load)	4.75 Minute
Backup/Run Time (Half Load)	16.57 Minute
Battery Life	5 Year
Typical Battery Recharge Time	4 Hour
Replaceable Battery	Yes
Environmental Conditions
Maximum Operating Temperature	104°F (40°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
Maximum Storage Elevation	50000 ft
Storage Relative Humidity	0% - 95%
Sound Emission	46 dB
Thermal Dissipation	34 W
Physical Characteristics
Color Family	Black
Product Color	Black
Height	1.7"
Width	17"
Depth	26.2"
Rack Height	1U
Form Factor	Rack-mountable
Mounting Preference	Lower
Mounting Location	Front
Weight (Approximate)	54.01 lb
Miscellaneous
Package Contents	Smart-UPS SMT 1500VA Rack-mountable UPS Installation Guide Rack Mounting Support Rails Smart UPS Signalling RS-232 Cable USB Cable Safety Guide 2 x IEC Jumper Cable
Certifications & Standards	ENERGY STAR V2.0 (USA)|CSA|UL 1778 5th edition|FCC part 15 class A|cUL
Software Included	Powerchute Serial Edition
Energy Star	Yes
Optimized Energy Efficiency	Yes
Product Take Back Program	No
Mercury Free	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT1500RM1UC_ROHS_DECLARATION&p_FileName=SMT1500RM1UCKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=555108618&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=555108618&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
Energy Star URL	https://www.energystar.gov/products/uninterruptible_power_supplies
REACH free of SVHC	No
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Country of Origin	Philippines
Environmentally Friendly	Yes
Energy Efficiency Certification	ENERGY STAR 2.0
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty	3 Year
Additional Warranty Information	3 years repair or replace (excluding battery) and 2 years for battery
Directly Connected Equipment Guarantee	$150000 Lifetime
