MIDDLE ATLANTIC DWR-24-22 24 Space 42" Sectional Wall Rack, Fits 20" Deep Equip, Black ***Drop Ship Only***

Mfg Part Number:  DWR-24-22

Special Note: Jan 05, 2020
NCNR; If you do not have loading facility, please contact our CST for special handling service.

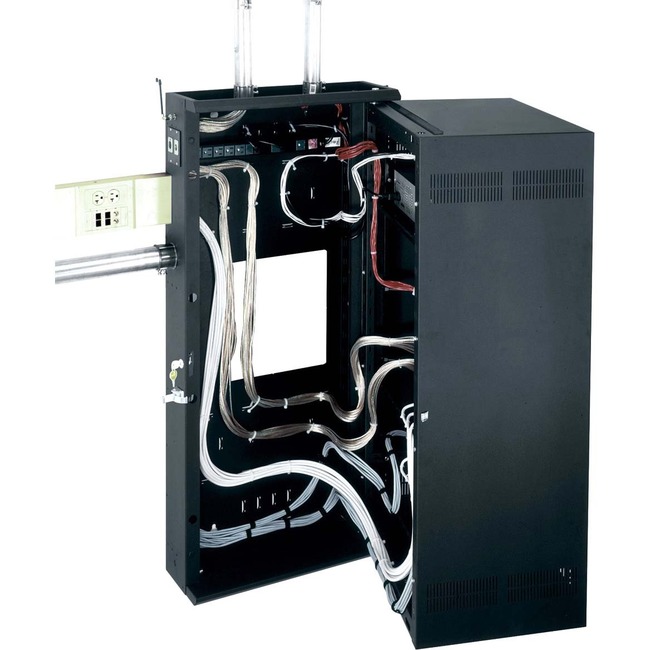

Image may not reflect the actual item.
MAP Price: $1,415.70
Quantity:
More to Come
Last Updated: Sep 21, 2025
No Sales Tax except these states
, PO and Wire.

The DWR Series Wall Racks are now Forward and Lever Lock compatible providing maximum mounting capacity on and off the rail and a suite of tool-free accessories making rack installations 5Xs faster! 24RU and 22in Deep. Now equipped with the revolutionary Forward rack rail giving you the ability to use Forward blank panels, vent panels and horizontal cable management. Rear rack rail is optional (FWD-DWR-RRxx). Now accepts patented Lever Lock tool free and hardware free internal device and cable management system accessories in the center section and the backpan (with LL-DWR/SR-BP). Robust welded steel construction, with Seismic certification when used with DWRSR-ZL latch. Center section rear channel accommodates optional PDT and PD Slim PDUs to save space. Tool-Free Quick-Mount system for easy, one-person mounting of the center section to the backpan on the jobsite. Optional minimum-clearance latch allows side-by-side or interior corner mounting to save room. Center section swing is reversible, and can be both key-locked and padlocked. Center section is keyed differently from optional front door for additional security. Designed for active or passive cooling to support all systems. Comes with a factory installed plexi door.


Main Specification
General Information
Manufacturer Legrand Group
Manufacturer Part Number DWR2422
Manufacturer Website Address http://www.legrand.us
Brand Name Middle Atlantic
Product Series DWR
Product Model DWR-24-22
Product Name DWR Series 24RU Pivoting Wall Mounted Rack - 22in Depth Wall Mounted Cabinet
Product Type Rack Cabinet
Technical Information
Rack Type Enclosed Cabinet
Ventilation Yes
Features Lockable
Features Cable Management
Features Key Lock
Features Powder Coated
Physical Characteristics
Form Factor Wall Mountable
Color Family Black
Product Color Black
Product Material Steel
Product Material Plexiglas
Maximum Weight Capacity 300 lb
Height 49.1"
Width 23.4"
Depth 22"
Weight (Approximate) 89.15 lb
Rack Height 24U
Rack Depth 20"
Miscellaneous
Additional Information
  • UL Listed
  • Welded construction
  • Abundant Hook and Loop Fastener and internal cable tie points
  • Standard adjustable front 11-gauge 10-32 threaded rackrail with marked rackspace increments to speed equipment mounting
  • Center section hinges for left or right opening accessories
  • 2"" knockouts, 4"" knockouts for Wiremold 4000 Series raceways, and knockouts for UCP series universal connector panels on side
  • Grounding/bonding stud in top and bottom of center section and backpan facilitates proper grounding and bonding of electronic equipment, as per NEBS and NEC standards
    		•
    Country of Origin United States
    TAA Compliant Yes
    Environmentally Friendly Yes
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty Lifetime
