BLACK BOX

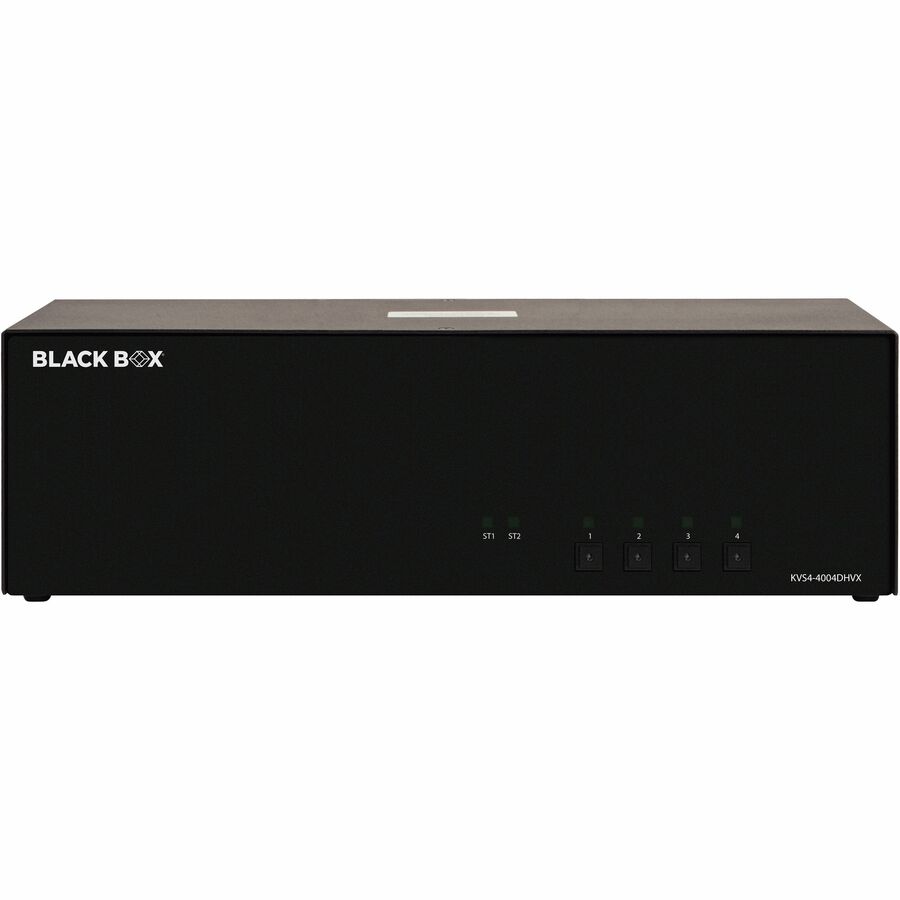

BLACK BOX KVS4-4004DHVX NIAP4 SECURE KVM SWITCH 4PORT QUAD HEAD DVI HDMI DP CAC
Mfg Part Number: KVS4-4004DHVX , Item #: 4596485
, PO and Wire.
Guard sensitive data in defense applications, secure control rooms, server operations, corporate, educational, medical, banking, insurance, transit, or industrial applications, and more. This switch uses mechanical, electrical, and optical signal isolation to prevent hacking and data leakage. Control KVM (Keyboard, Video, and Mouse) operation on up to 8 DisplayPort, 4 HDMI, and 4 DVI-I computers plus analog audio using just 1 set of keyboard and mouse, 2 DisplayPort, 1 HDMI, 1 DVI-I displays, and analog audio.
NOTE: The switches support HDMI 1.4 and DisplayPort 1.2.
Complies with NIAP Protection Profile for Peripheral Sharing Device Version 4.0
The switches are tested and certified under the USA scheme for NIAP Protection Profile 4.0.
Front-Panel Buttons
Securely switch between sources.
Maximum Security
Inverted signals control data relays to guard connections against outside intrusion. Each port has an isolated data channel and each unit uses non-reprogrammable ROM with no data leakage between ports. Isolated connections also prevent data leaks between secure ports and the outside world when accessing classified and public networks over the internet.
Secure EDID Learn and Video Emulation
The switch emulates a keyboard and mouse for each attached computer via a USB cable. Selected and non-selected computers maintain a connection with the unit's keyboard-mouse emulation controllers, allowing for ultra-fast switching and restricting the discovery of newly connected peripherals during switching. Emulation also prevents the direct connection between peripherals and connected computers.
Tamperproof Seals
Built-in tamperproof seals and a long-life internal anti-tamper battery keep devices secure.
Optional CAC Port
Add a Common Access Card (CAC) reader at point-of-sale in retail or for access in other industries.
| General Information | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KVS4-4004DHVX |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Line | Secure |
| Product Model | KVS4-4004DHVX |
| Product Name | Secure NIAP 4.0 Certified KVM Switch - 4-Port, Quad-Monitor, DVI, HDMI, DisplayPort, CAC |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 4 |
| Maximum Operating Distance | 20 ft |
| Device Type | Secure KVM |
| Features | Intrusion Detection |
| Features | Tamper Proof |
| Video | |
| Maximum Video Resolution | 3840 x 2160 |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DVI | Yes |
| DisplayPort | Yes |
| Number of USB Ports | 11 |
| Number of HDMI Ports | 5 |
| Number of DVI Ports | 5 |
| Number of DisplayPorts | 10 |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Power Description | |
| Input Voltage Range | 12V DC |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 1.8" |
| Width | 12.6" |
| Depth | 6.7" |
| Weight (Approximate) | 4.20 lb |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
