General Information | |
Manufacturer | Schneider Electric SA |
Manufacturer Part Number | SMTL1500RM3UCNC |
Manufacturer Website Address | http://www.schneider-electric.com |
Brand Name | APC by Schneider Electric |
Product Line | Smart-UPS |

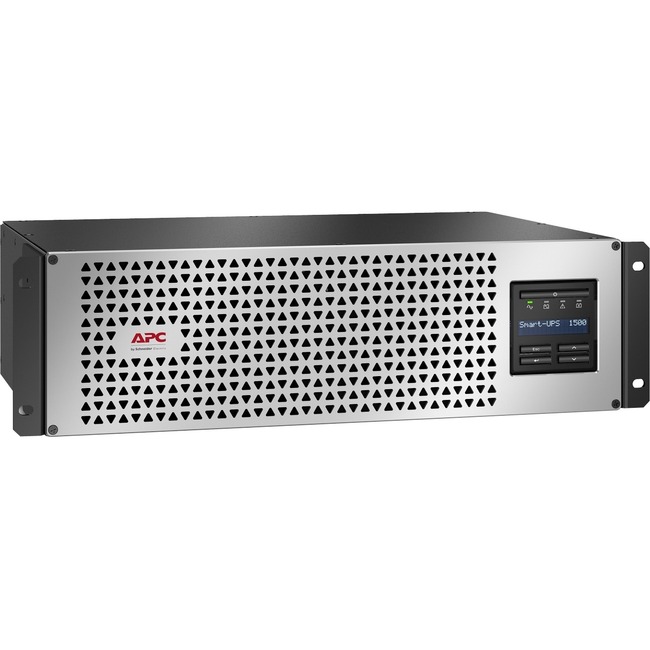

Product Name | Smart-UPS 1500VA Rack-mountable UPS |
Product Type | Line-interactive UPS |
Technical Information | |
Plug/Connector Type | NEMA 5-15P |
Receptacle Type | NEMA 5-15P |
Receptacle Detail | 6 x NEMA 5-15R |
Number of Battery & Surge Outlets | 6 |
Dataline Protection | RJ-45 |
Overload Protection | Yes |
Cord Length | 8 ft |
Transfer Time | 6 ms |
Power Description | |
Load Capacity (VA) | 1440 VA |
Load Capacity (Watt) | 1350 W |
Input Voltage | 120 V |
Input Voltage Range | 75 V AC -154 V AC |
Input Voltage Range | 82 V AC - 144 V AC |
Output Voltage | 120 V AC |
Input Frequency | 60 Hz |
Waveform Type | Sine Wave |
Surge Energy Rating | 680 J |
Management | |
Network Management | SmartConnect |
Alarm | Configurable Delay |
Alarm | Low Battery |
Alarm | On Battery |
Controls/Indicators | |
Status Indicators | Multifunction LCD Status and Control Console |
Interfaces/Ports | |
Serial Port | Yes |
Network (RJ-45) | Yes |
USB (HID Compliant) Port | Yes |
Battery Information | |
DC System Voltage | 36 V DC |
Battery Chemistry | Lithium Ion (Li-Ion) |
Battery Energy | 864 kJ |
Backup/Run Time (Full Load) | 3.03 Minute |
Backup/Run Time (Half Load) | 8.87 Minute |
Typical Battery Recharge Time | 3 Hour |
Environmental Conditions | |
Maximum Operating Elevation | 10000 ft |
Maximum Storage Elevation | 25000 ft |
Storage Temperature | -40°F (-40°C) - 95°F (35°C) |
Storage Relative Humidity | 0% - 95% |
Maximum Operating Temperature | 104°F (40°C) |
Sound Emission (A-Weighted) | 45 dB(A) |
Thermal Dissipation | 39.56 W |
Physical Characteristics | |
Product Color | Black |
Product Color | Silver |
Height | 5.2" |
Width | 17.2" |
Depth | 11.9" |
Rack Height | 3U |
Form Factor | Rack-mountable |
Weight (Approximate) | 42.99 lb |
Miscellaneous | |
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Country of Origin | Philippines |
Warranty | |
Limited Warranty | 5 Year |
Additional Warranty Information | 5 year repair or replace |
