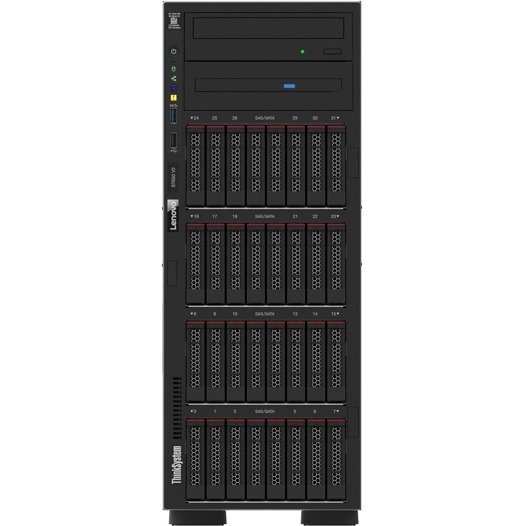

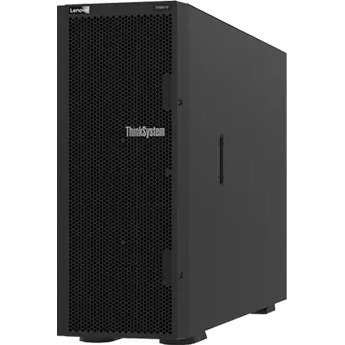

LENOVO 7Z74A01TNA THINKSYSTEM ST650 V2 4309Y 16GB

The Lenovo ThinkSystem ST650 V2 is an ideal 2-socket 4U tower server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The ST650 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.

General Information
Manufacturer	Lenovo Group Limited
Manufacturer Part Number	7Z74A01TNA
Manufacturer Website Address	http://www.lenovo.com/us/en/
Brand Name	Lenovo
Product Line	ThinkSystem
Product Series	ST650 V2
Product Model	7Z74A01TNA
Product Name	ThinkSystem ST650 V2 7Z74A01TNA Server
Product Type	Server
Processor
Number of Processors Supported	2
Chipset
Chipset Manufacturer	Intel
Chipset Model	C621A
Memory
Memory Technology	TruDDR4
Memory Clock Speed	3.20 GHz
Error Checking	ECC
Total Number of Memory Slots	32
Intel Optane Memory Ready	Yes
Controllers
Controller Type	Serial ATA/600
Controller Type	12Gb/s SAS
RAID Supported	Yes
I/O Expansions
Number of External 5.25" Bays	2
Number of Media Drive Bays	2
Total Number of Expansion Slots	9
PCI Express x8 (Gen 3.x) Slots	5
PCI Express x16 (Gen 3.x) Slots	4
Display & Graphics
Graphics Controller Model	G200
Graphics Memory Capacity	16 MB
Network & Communication
Ethernet Technology	10 Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports	7
Number of USB 2.0 Ports	1
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	3
VGA	Yes
Number of VGA Ports	1
Remote Management	Yes
Remote Management Controller	XCC local management
Operating System
Operating System Supported	Windows Server 2019
Operating System Supported	Red Hat Enterprise Linux 8.2
Operating System Supported	Windows Server 2016
Operating System Supported	SUSE Linux Enterprise Server 15 SP2
Operating System Supported	Windows Server 2022
Operating System Supported	Red Hat Enterprise Linux 8.3
Operating System Supported	Red Hat Enterprise Linux 7.9
Operating System Supported	SUSE Linux Enterprise Server 12 SP5
Power Description
Input Voltage	230 V AC
Input Voltage	120 V AC
Number of Power Supplies Supported	2
Physical Characteristics
Form Factor	Tower
Rack Height	4U
Height	18.2"
Width	6.9"
Depth	28.9"
Weight (Approximate)	86.60 lb
Miscellaneous
Package Contents	ThinkSystem ST650 V2 7Z74A01TNA Server Power Cord
Security Features	Administrator and Power-on Password Trusted Platform Module (TPM) Self-encrypting Drives with Support for IBM Security Key Lifecycle Manager Lockable sSde Cover to Help Prevent Access to Internal Components
Energy Star	Yes
Environmentally Friendly	Yes
Energy Efficiency Certification	China Energy Conservation Program (CECP)
Energy Efficiency Certification	ENERGY STAR 3.0
Warranty
Limited Warranty	3 Year
