LENOVO 7Z75A002NA THINKSYSTEM ST650 V2 4309Y 32GB

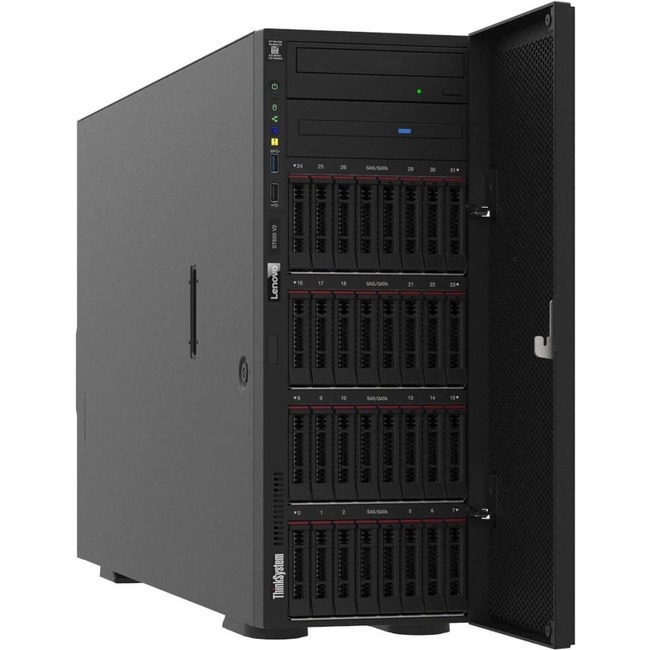

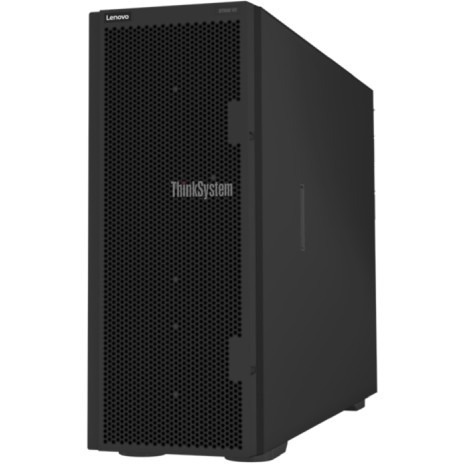

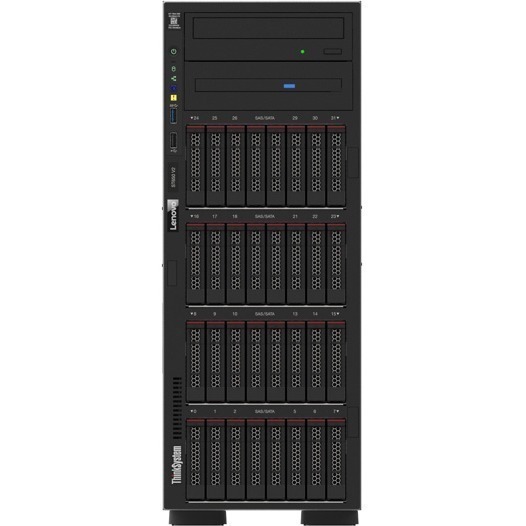

The Lenovo ThinkSystem ST650 V2 is an ideal 2-socket 4U tower server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The ST650 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.

General Information
Manufacturer	Lenovo Group Limited
Manufacturer Part Number	7Z75A002NA
Manufacturer Website Address	http://www.lenovo.com/us/en/
Brand Name	Lenovo
Product Line	ThinkSystem
Product Series	ST650 V2
Product Model	7Z75A002NA
Product Name	ThinkSystem ST650 V2 7Z75A002NAServer
Product Type	Server
Processor
Number of Processors Supported	2
Number of Processors Installed	1
Processor Type	Xeon Silver
Processor Generation	3rd Gen
Processor Model	4309Y
Processor Core	Octa-core (8 Core)
Processor Speed	2.80 GHz
Cache	12 MB
Chipset
Chipset Manufacturer	Intel
Chipset Model	C621A
Memory
Standard Memory	32 GB
Maximum Memory Supported	2 TB
Memory Technology	TruDDR4
Error Checking	ECC
Total Number of Memory Slots	32
Intel Optane Memory Ready	Yes
Storage
Total Hard Drive Capacity	No
Optical Drive Type	No
Controllers
Controller Type	Serial ATA/600
RAID Supported	Yes
I/O Expansions
Hot Swappable Bays	Yes
Total Number of Expansion Slots	9
PCI Express x8 (Gen 3.x) Slots	5
PCI Express x16 (Gen 3.x) Slots	4
PCI Express Details	3x PCIe 3.0 x16 slots, 2x PCIe 3.0 x8 slots, 1x PCIe 3.0 x4 slot
Display & Graphics
Graphics Controller Model	G200
Graphics Memory Capacity	16 MB
Network & Communication
Ethernet Technology	10 Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports	7
Number of USB 2.0 Ports	1
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	3
VGA	Yes
Number of VGA Ports	1
Remote Management	Yes
Remote Management Controller	XCC local management
Operating System
Operating System Supported	Windows Server 2019
Operating System Supported	Red Hat Enterprise Linux 8.2
Operating System Supported	SUSE Linux Enterprise Server 15 SP2
Operating System Supported	Red Hat Enterprise Linux 8.5
Operating System Supported	Red Hat Enterprise Linux 7.9
Operating System Supported	Windows Server 2022
Operating System Supported	Red Hat Enterprise Linux 8.3
Operating System Supported	SUSE Linux Enterprise Server 12 SP5
Operating System Supported	Windows Server 2016
Operating System	No
Power Description
Input Voltage	120 V AC
Input Voltage	230 V AC
Number of Power Supplies Supported	2
Physical Characteristics
Form Factor	Tower
Rack Height	4U
Height	18.2"
Width	6.9"
Depth	28.9"
Weight (Approximate)	86.60 lb
Miscellaneous
Security Features	Administrator and Power-on Password Trusted Platform Module (TPM) Self-encrypting Drives with Support for IBM Security Key Lifecycle Manager Lockable Side Cover to Help Prevent Access to Internal Components
Energy Star	Yes
Environmentally Friendly	Yes
Energy Efficiency Certification	China Energy Conservation Program (CECP)
Energy Efficiency Certification	ENERGY STAR 3.0
Warranty
Limited Warranty	1 Year
