QUAM NICHOLS

QUAM NICHOLS SYSTEM19 2 X 2 TILE REPLACEMENT LOUDSPEAKER,2-WAY LOUDSPEAKER,EXTENDED RESPONSE,20W-70V R

Mfg Part Number:  SYSTEM19
Image may not reflect the actual item.
Price: $173.65 + Free Shipping
Quantity:
More to Come
Last Updated: Nov 10, 2025
No Sales Tax except these states
, PO and Wire.

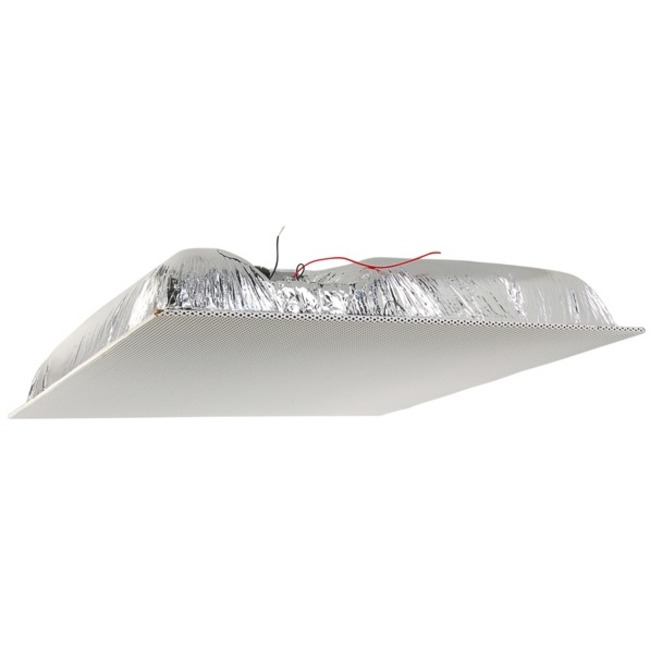

The SYSTEM 19 is a complete, UL Listed, 2-way, shallow depth, lightweight, 2' x 2' ceiling tile replacement loudspeaker system consisting of an 6-1/2" O.D. LF woofer, 1" tweeter, and a 20W-70V rotary select transformer including an 8 Ohm tap. Molded fiber enclosure is 1412 CID. Steel baffle with standard perforation and four (4) seismic tie-off points. Cable clamp is included. No assembly required.

Main Specification
General Information
Manufacturer QUAM
Manufacturer Part Number SYSTEM19
Manufacturer Website Address http://www.quamspeakers.com/
Brand Name Quam
Product Model SYSTEM 19
Product Name SYSTEM 19 Speaker
Product Type Speaker
Technical Information
Crossover Type 2-way
RMS Output Power 30 W
Woofer Driver Size 6.50"
Tweeter Driver Size 1"
Tweeter Driver Material Dome
Minimum Frequency Response 60 Hz
Maximum Frequency Response 20 kHz
Impedance 8 Ohm
Sensitivity 91 dB
Physical Characteristics
Form Factor Ceiling Mountable
Speaker Installation Indoor
Woofer Diameter 6.50"
Height 3.5"
Width 23.8"
Depth 23.81"
Weight (Approximate) 8.20 lb
Miscellaneous
Package Contents
  • 2' x 2' Ceiling Tile Replacement Loudspeaker System
  • 20W-70V Rotary Select Transformer
  • Cable Clamp
  • Molded fiber Enclosure
Application/Usage Indoor
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Country of Origin United States
