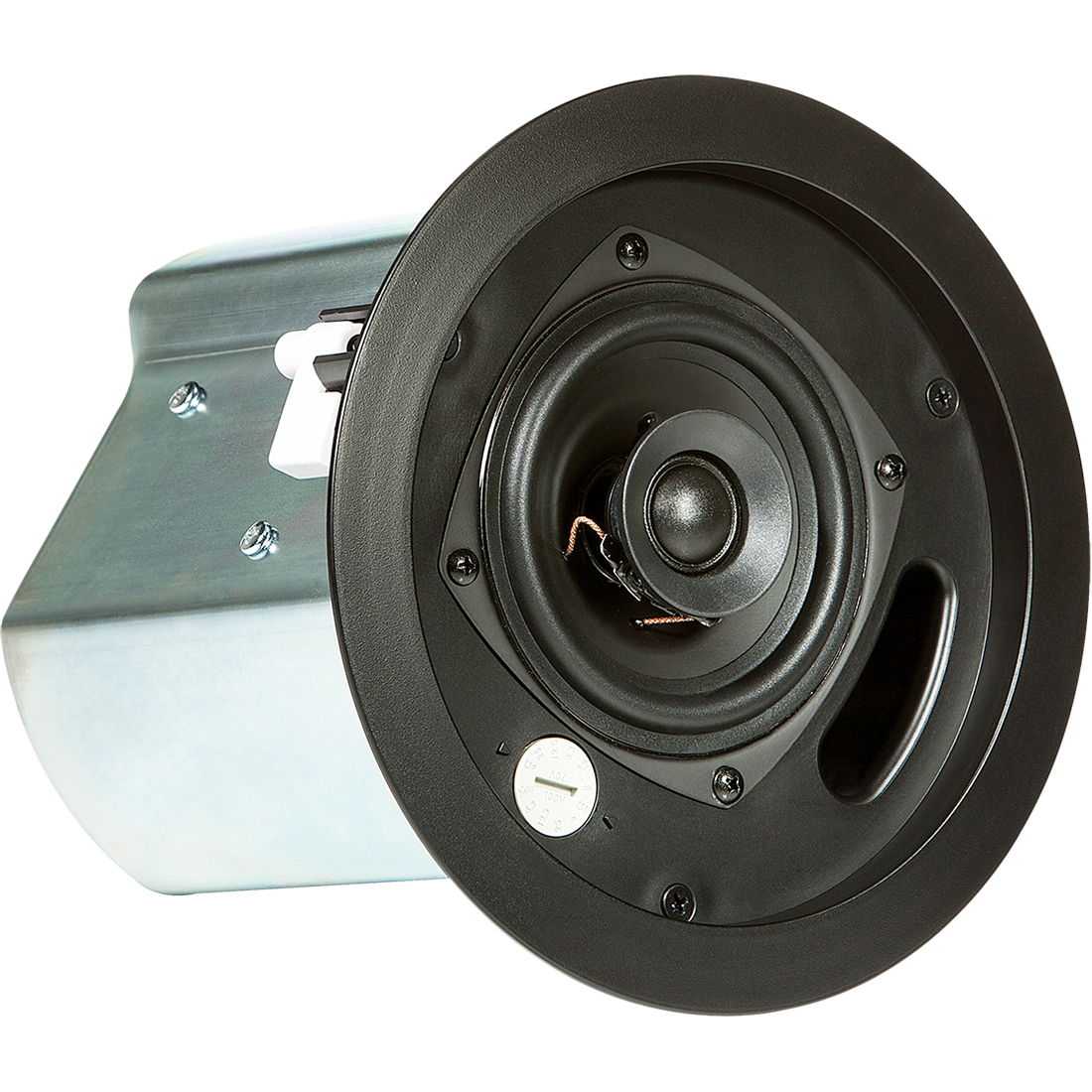

Two-Way 4" Coaxial Ceiling Loudspeaker
Control 14C/T is a full-range ceiling speaker consisting of a 100 mm (4 inch) high tech cone driver and a 19 mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blind-mount backcan for quick and easy installation.
| General Information | |
| Manufacturer | Harman International Industries, Inc |
| Manufacturer Part Number | CONTROL 14C/T-BK |
| Manufacturer Website Address | http://www.harman.com |
| Brand Name | JBL Professional |
| Product Line | Control |
| Product Series | 10 |
| Product Model | 14C/T |
| Product Name | Control 14C/T Two-Way 4" Coaxial Ceiling Loudspeaker |
| Packaged Quantity | 2 |
| Product Type | Speaker |
| Technical Information | |
| Crossover Type | 2-way |
| RMS Output Power | 30 W |
| PMPO Output Power | 60 W |
| Woofer Driver Size | 4" |
| Woofer Driver Material | Polypropylene |
| Tweeter Driver Size | 0.75" |
| Tweeter Driver Material | Silk Dome |
| Minimum Frequency Response | 100 Hz |
| Maximum Frequency Response | 20 kHz |
| Impedance | 8 Ohm |
| Sound Pressure Level | 108 dB |
| Sensitivity | 87 dB |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Acrylonitrile Butadiene Styrene (ABS) |
| Product Material | Butyl Rubber |
| Product Material | Zinc |
| Product Material | Steel |
| Product Material | Kapton |
| Tweeter Material | Silk Dome |
| Woofer Material | Polypropylene |
| Form Factor | Ceiling Mountable |
| Durability | UV Resistant |
| Depth | 7.10" |
| Diameter | 7.7" |
| Weight (Approximate) | 4.80 lb |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 5 Year |
