EDGECORE NETWORKS

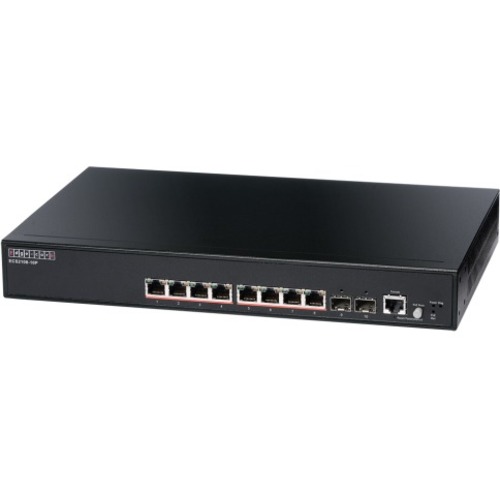

EDGECORE NETWORKS Edgecore ECS2100-10P 8Port Gigabit Web-Smart Pro PoE Switches 10 100 1000
Mfg Part Number: ECS2100-10P , Item #: 4188220
Image may not reflect the actual item.
Price: $300.38
+ Free Shipping
Quantity:
More to Come
Last Updated: May 01, 2025
No Sales Tax except these states
, PO and Wire.
The ECS2100 Series is a range of web-smart switches designed for the SMB market. The switches can be deployed in different target network topologies, from small to large. Besides powerful software features, the switches provide a complete solution from 1G to 10G, including both non-PoE and PoE options.
The ECS2100 Series offers complete PoE solutions from 65 W to 740 W. The ECS2100-10PE is the most compact (height: 2.65 cm) managed PoE switch design, a cost-effective PoE switch with powerful software and security features. The switch can be mounted in many small spaces, on a wall or in a rack. The ECS2100-10P is a full-PoE fanless design switch, it supports up to 8 ports at 15.4 W, or 4 ports at 30 W to meet the increasing power demands of users. The ECS2100-28PP is an extendable PoE switch, it delivers a default 370 W of PoE power, but can be extended up to 740 W by purchasing a PS3000 (Power Shelf) and EPS460W (Entended Power Supply) to support future IP cameras, IP telephones, or access points.
The ECS2100 Series supports 8, 24, and 48 10/100/1000BASE-T ports, with each switch supporting 2 or 4 Gigabit SFP ports. The ECS2110-26P provides 2 10G uplink SFP ports to increase switch uplink bandwidth and meet the needs of future 802.11ac routers.
As well as IPv4 and IPv6 features, the ECS2100 supports L3 static routing. The ECS2100 includes the best green-saving technologies (IEEE 802.3az and Green-Ethernet). Using the Energy Efficient Ethernet standard, the switch automatically decreases power usage when network traffic is low.
The ECS2100 Series offers complete PoE solutions from 65 W to 740 W. The ECS2100-10PE is the most compact (height: 2.65 cm) managed PoE switch design, a cost-effective PoE switch with powerful software and security features. The switch can be mounted in many small spaces, on a wall or in a rack. The ECS2100-10P is a full-PoE fanless design switch, it supports up to 8 ports at 15.4 W, or 4 ports at 30 W to meet the increasing power demands of users. The ECS2100-28PP is an extendable PoE switch, it delivers a default 370 W of PoE power, but can be extended up to 740 W by purchasing a PS3000 (Power Shelf) and EPS460W (Entended Power Supply) to support future IP cameras, IP telephones, or access points.
The ECS2100 Series supports 8, 24, and 48 10/100/1000BASE-T ports, with each switch supporting 2 or 4 Gigabit SFP ports. The ECS2110-26P provides 2 10G uplink SFP ports to increase switch uplink bandwidth and meet the needs of future 802.11ac routers.
As well as IPv4 and IPv6 features, the ECS2100 supports L3 static routing. The ECS2100 includes the best green-saving technologies (IEEE 802.3az and Green-Ethernet). Using the Energy Efficient Ethernet standard, the switch automatically decreases power usage when network traffic is low.
Main Specification
| General Information | |
| Manufacturer | Edge-Core Networks Corporation |
| Manufacturer Part Number | ECS2100-10P |
| Manufacturer Website Address | http://www.edge-core.com |
| Brand Name | Edge-Core |
| Product Series | ECS2100 |
| Product Model | ECS2100-10P |
| Product Name | ECS2100-10P Ethernet Switch |
| Packaged Quantity | 1 |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Uplink Port | Yes |
| Modular | Yes |
| Stack Port | No |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Uplink |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X |
| Network Technology | 10/100/1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP |
| Shared SFP Slot | No |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 13" |
| Depth | 8" |
| Weight (Approximate) | 5.29 lb |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
