TRANSITION SISPM1040-582-LRT MGD HARDENED POE++ 8 10/100/1000BASE-T
Mfg Part Number: SISPM1040-582-LRT , Item #: 3389768
, PO and Wire.

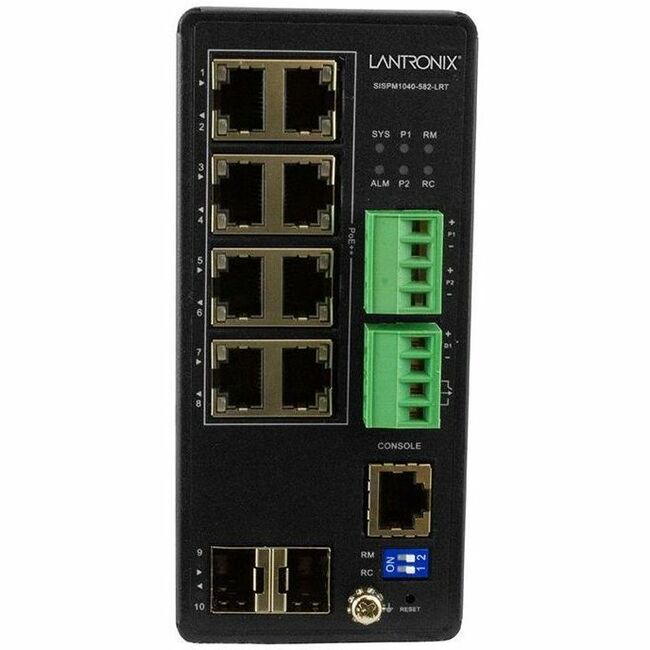

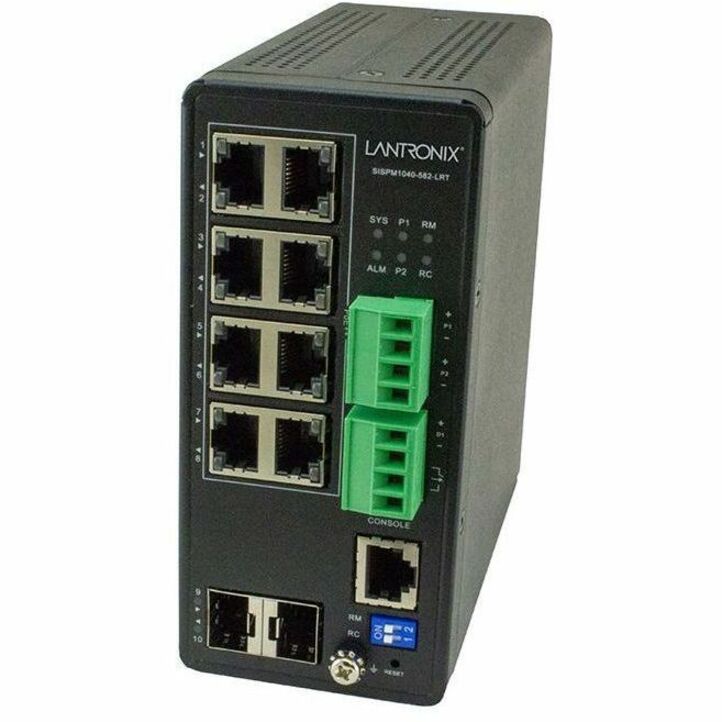

The SISPM1040-582-LRT is a managed PoE++ switch suitable for connecting and powering devices in hardened environments. It has (8) 10/100/1000 PoE++ ports with (2) 100/1000 dual speed SFP slots. The switch can supply up to 90 Watts per port on (4) ports or 60 Watts per port on (8) ports simultaneously. The switch also includes the embedded Device Management System (DMS) software that provides the advanced tools necessary for total management of all IP addressable devices. The unique DMS provides security integrators with lower overall cost, less downtime and easier management of the entire PoE+ network. Lantronix ' hardened switches are certified to operate reliably in harsh environments such as those found on factory floors, outdoor enclosures or other challenging environments.
| General Information | |
| Manufacturer | Lantronix, Inc |
| Manufacturer Part Number | SISPM1040582LRT |
| Manufacturer Website Address | http://www.lantronix.com |
| Brand Name | Lantronix |
| Product Model | SISPM1040-582-LRT |
| Product Name | Managed Hardened Gigabit Ethernet PoE++ Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 8 |
| Modular | Yes |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 8 x Gigabit Ethernet PoE++ |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 1000Base-X |
| Network Technology | 10/100/1000Base-T |
| I/O Expansions | |
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Shared SFP Slot | No |
| Number of SFP Slots | 2 |
| Network & Communication | |
| Layer Supported | 4 |
| Networking Standards | IEEE 802.1ab |
| Networking Standards | IEEE 802.3af |
| Networking Standards | IEEE 802.1s |
| Networking Standards | IEEE 802.1ad |
| Networking Standards | IEEE 802.3u |
| Networking Standards | IEEE 802.1D |
| Networking Standards | IEEE 802.3az |
| Networking Standards | IEEE 802.3bt |
| Networking Standards | IEEE 802.3x |
| Networking Standards | IEEE 802.1w |
| Networking Standards | IEEE 802.3at |
| Networking Standards | IEEE 802.1p |
| Networking Standards | IEEE 802.3ad |
| Networking Standards | IEEE 802.3z |
| Networking Standards | IEEE 802.1Q |
| Networking Standards | IEEE 802.3ah |
| Networking Standards | IEEE 802.1ag |
| Networking Standards | IEEE 802.3 |
| Networking Standards | IEEE 802.3ae |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 480 W |
| Input Voltage | 52 V DC |
| Input Voltage | 57 V DC |
| Power Source | DC |
| Power Consumption | 13 W |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Form Factor | DIN Rail Mountable |
| Height | 5.3" |
| Width | 2.4" |
| Depth | 5.1" |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | IP Camera |
| Application/Usage | Network |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 5 Year |
