Image may not reflect the actual item.
Price: $529.02
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 21, 2024
No Sales Tax except these states
, PO and Wire.
For serial to Ethernet connectivity applications, the IOLAN SDS line is the most advanced series of device servers available. Delivering high performance in a compact size, the IOLAN SDS offers extensive security, flexibility and next generation IP technology making it ideal for applications that require remote device/console management, data capture or monitoring
Main Specification
| General Information | |
| Manufacturer | Perle Systems, Inc |
| Manufacturer Part Number | 04030104 |
| Manufacturer Website Address | http://www.perle.com |
| Brand Name | Perle |
| Product Line | IOLAN |
| Product Series | SDS |
| Product Model | SDS2 |

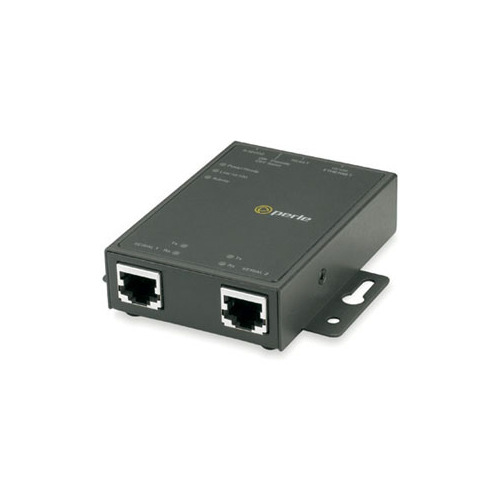

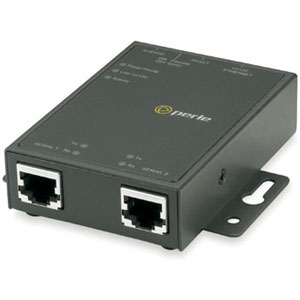

| Product Name | IOLAN SDS2 2-Port Device Server EIA/232/422/485 RJ45 10/100 |
| Product Type | Device Server |
| Processor & Chipset | |
| Processor Speed | 66 MHz |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Standard | 10/100Base-TX |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Power Description | |
| Input Voltage | 110 V AC |
| Input Voltage | 220 V AC |
| Physical Characteristics | |
| Height | 0.9" |
| Width | 2.5" |
| Depth | 3.5" |
| Weight (Approximate) | 7.76 oz |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Canada |
| Warranty | |
| Limited Warranty | Lifetime |
| Mechanical | |
| Dimensions: WxHxD (mm) | 255 x 165 x 26 |
| Mounting | Din Rail Mount; Wall Mount |
| Enclosure | Metal |
| Interface | |
| Serial interface | RS232/RS422/RS485 |
| Serial interface number of ports | 2 |
| Serial Interface type of connector | DB9 |
| Network interface | 1 Port Ethernet RJ45 Connector |
| Network interface number of ports | 1 |
| Network interface type of connector | RJ45 |
| Power | |
| Power Input Type | - |
| Operating Supply Voltage | 9 to 30 VDC |
| Power Consumption | 1W |
| Reliability | |
| Operating Temperature | 0 to 55C |
| Isolation Protection | - |
| Surge Protection | - |
| Standards and Certifications | Safety UL 60950-1, EN 60950-1, EMC CE, FCC, EMI EN 55022 Class A, FCC Part 15 Subpart B Class A, EMS EN 55024 |
The IOLAN SDS is the most advanced device server on the market for secure serial to ethernet connectivity applications. Delivering high performance in a compact size, an IOLAN SDS offers robust security, flexibility and next generation IPv6 technology making it ideal for applications that require remote device/console management, data capture or monitoring.
Features and Benefits :
Secure data encryption and management via SSL/TLS, SSH
Supports both existing IPv4 and new IPv6 IP standards for investment protection and future network compatibility as required by the U.S. Defense Department.
Universal, software selectable EIA-232/422/485 interface – prevents mechanical tampering in the field
15 KV ESD protection for continuous and reliable operation
High performance in a space saving compact size
Secure browser management with HTTPS/SSL support
Powerful authentication schemes prevent unauthorized access
Trueport COM or TTY port control and management for serial based server applications (Trueport version 5 required for SSL client/server applications)
Power over serial cable capability can eliminate the cost of a separate AC power installation
Port Buffering for data capture and analysis
DIN Rail mounting option for Industrial Automation applications
Features and Benefits :
| Main Specifications |
| Product Description | Perle IOLAN SDS2 - device server |
| Device Type | Device server |
| Enclosure Type | External |
| Dimensions (WxDxH) | 2.5 in x 3.5 in x 0.9 in |
| Ports Qty | 2 |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232, RS-422, RS-485 |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, SLIP |
| Remote Management Protocol | SNMP, Telnet, HTTP, HTTPS |
| Communication Mode | Half-duplex, full-duplex |
| Features | 128-bit encryption, DHCP support, BOOTP support, RARP support, ARP support, Syslog support, dynamic DNS server, IPv6 support, IP address filtering, 256-bit encryption |
| Networking | |
| Form Factor | External |
| Ports Qty | 2 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 3.6 Mbps |
| Data Link Protocol | Ethernet, Fast Ethernet, RS-232, RS-422, RS-485 |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, SLIP |
| Routing Protocol | RIP-2 |
| Remote Management Protocol | SNMP, Telnet, HTTP, HTTPS |
| Communication Mode | Half-duplex, full-duplex |
| Status Indicators | Link activity, port transmission speed, power, link OK |
| Features | 128-bit encryption, DHCP support, BOOTP support, RARP support, ARP support, Syslog support, dynamic DNS server, IPv6 support, IP address filtering, 256-bit encryption |
| Encryption Algorithm | Triple DES, Blowfish, RSA, MD5, CAST, ARCFOUR, AES, SSL, TLS |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, PAP, CHAP, TACACS+, Secure Shell v.2 (SSH2), LDAP |
| Expansion / Connectivity | |
| Interfaces | 1 x serial - RS-232/422/485 - 25 pin D-Sub
(DB-25) 2 x network - Ethernet 10Base-T/100Base-TX - RJ-45 |
| Miscellaneous | |
| Compliant Standards | CE, CSA, EN 60950, UL 1950, EN55022 Class A, FCC Part 15 |
| Power | |
| Power Device | Power adapter - external |
Connector Adapters
Connector Cables
Miscellaneous Kits

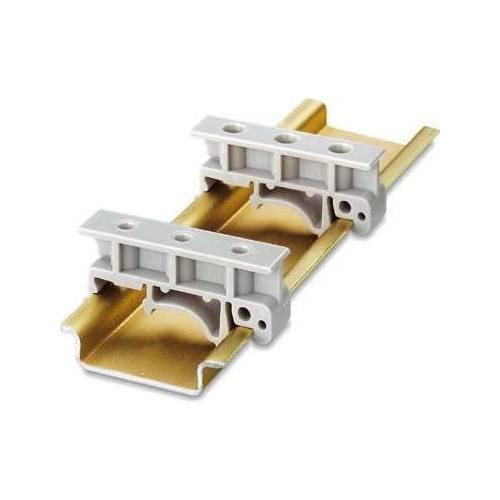

Mounting Kits
