OMNITRON 4342-1 10/100 BASE-T / 100 BASE-F FLEXPOINT 10/100 ST MM 1310NM 2KM

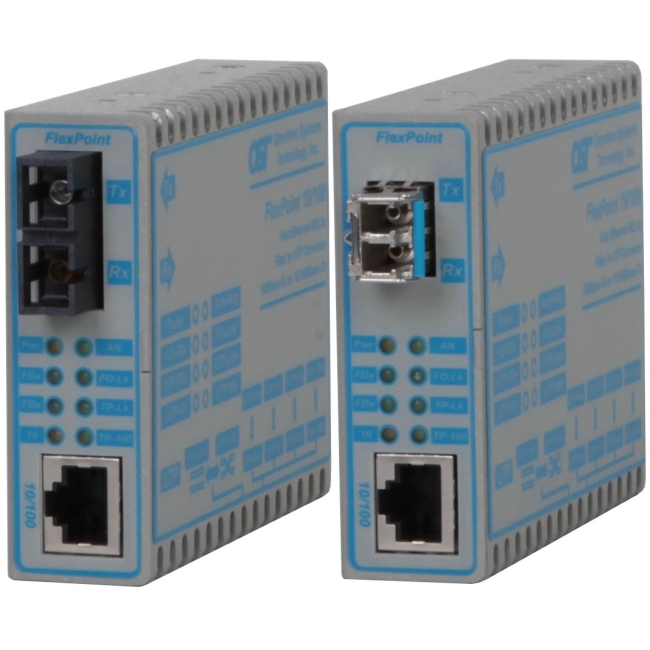

The FlexPoint 10/100 is a modular 10BASE-T or 100BASE-TX copper to 100BASE-FX fiber media converter that provides reliable and cost-effective network connectivity and fiber extension.

The FlexPoint 10/100 features a 10/100 auto-sensing RJ-45 port that adjusts to the highest level of performance supported by the attached device. An override switch provides manual control over the 10/100 operation of the RJ-45 port and the Half/Full-Duplex operation of both the fiber and RJ-45 ports.

When configured for auto-negotiation, the RJ-45 port automatically detects and sets MDI/MDI-X crossover. When configured for manual operation, the FlexPoint 10/100 features a manual switch to provide the MDI/MDI-X crossover.

The fiber port supports fixed-fiber connectors (SC, ST or LC) and Small Form Pluggable (SFP) transceivers, enabling easy adaptability to different fiber types, distances and wavelengths. The FlexPoint 10/100 supports multimode, single-mode, single-mode single-fiber, in standard and CWDM wavelengths.

Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration to legacy devices or specific network requirements. The LEDs report the availability of power, port activity and link status, speed and duplex modes.

General Information
Manufacturer	Omnitron Systems
Manufacturer Part Number	4342-1
Manufacturer Website Address	http://www.omnitron-systems.com
Brand Name	Omnitron Systems
Product Line	FlexPoint
Product Series	10/100
Product Model	4342-x
Product Name	FlexPoint 10/100 ST Multimode 5km US AC Powered
Package Type	Retail
Product Type	Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	1
Number of ST Ports	1
ST Port Type	Duplex
Media & Performance
Media Type Supported	Optical Fiber
Media Type Supported	Twisted Pair
Fiber Mode Supported	Multi-mode
Fiber Optic Cable Wavelength	0.1 mil
Maximum Distance Supported	5.01 km
Network & Communication
Ethernet Technology	Fast Ethernet
Ethernet Technology	Ethernet
Network Technology	10/100Base-TX
Network Technology	100Base-FX
Power Description
Input Voltage	120 V AC
Physical Characteristics
Form Factor	External
Form Factor	Rack-mountable
Form Factor	Desktop
Form Factor	Wall Mountable
Height	1"
Width	3"
Depth	4"
Weight (Approximate)	6 oz
Miscellaneous
Package Contents	FlexPoint 10/100 ST Multimode 5km US AC Powered US Power Supply - 120Volt / 60Hz User Manual
Additional Information	Input Voltage: 5-32VDC via 2.5mm barrel (0.5A @ 9VDC) 5VDC via Molex connector (0.8A @ 5VDC) 100-120VAC/60Hz (0.06A @ 120VAC)
Certifications & Standards	EIA/TIA 568A/B Compliance: UL CE FCC Class A IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX and 100BASE-FX
Environmentally Friendly	Yes
Country of Origin	United States
Warranty
Limited Warranty	Lifetime

Features:
The UTP port supports 10/100 and half/full duplex auto-sensing.
Override switches provide total manual control over the 10/100 operation of the UTP port and the half/full duplex operation of both the fiber and UTP port.
Supports 10BASE-T, 100BASE-TX, 100BASE-FX and IEEE 802.3 specifications.
Features a crossover switch for easy connection to hubs or switches.
Wall-mountable or rack-mountable in a 14-unit FlexPoint Powered Chassis or 5-unit rack-mounting shelf.
Software-independent.
Lifetime warranty.
