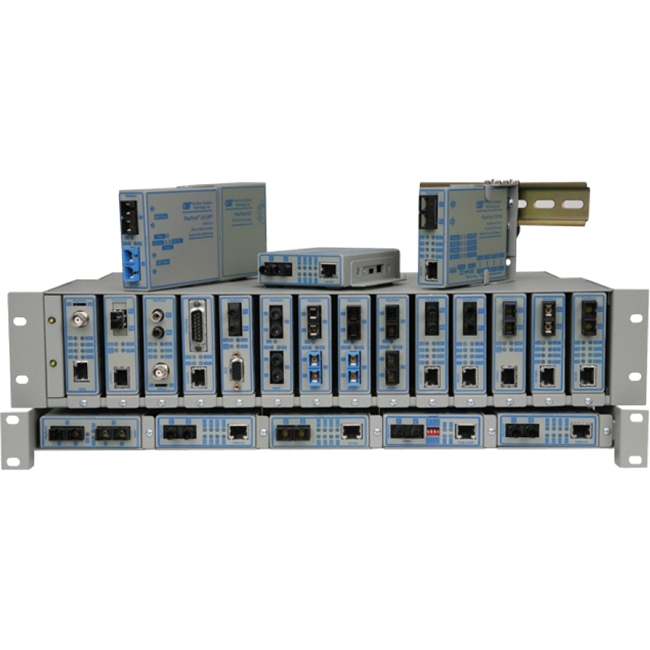

OMNITRON 4395 14 MODULE FLEXPOINT CHASSIS 2X AC UNIVERSAL POWER SUPPLIES

The FlexPoint Powered Chassis is a 19" rack-mount chassis that houses up to 14 standalone FlexPoint media converter modules. The redundant power supplies are essential where reliability is important, and in mission-critical applications to ensure continuous operation.

Both of the universal AC or DC power supplies are hot-swappable and can be used in any combination. In case of a failure, a power supply can be hot-replaced while the second power supply supports the operation of the chassis.

The power control logic of the Powered Chassis provides loadsharing between the power supplies, increasing reliability and operational lifetime. The control logic provides power monitoring and an LED display for each supply in order to assist in status monitoring, rapid fault-isolation and network management.

The 14-Module Powered Chassis supports any combination of FlexPoint media converter modules which are individually secured and hot-swappable to ensure continuous operation.

• The FlexPoint Powered Chassis is a rack-mount 14-Module, power-redundant chassis for media converter modules
• Dual hot-swappable power supplies ensure continuous network operation
• LED displays provide network management with continuous power supply status monitoring
• Supports any combination of protocol-independent media converter modules and mixed media; saves space and makes installation and support easy
• Supports all FlexPoint media converter modules
• Converters are individually secured and hot-swappable for maximum connection reliability
• Standard 19" rack-mount dimensions allow spacesaving and convenient installation
• Available in AC and DC models
• Completely software independent with no installation of drivers required
• Peace-of-mind reliability backed by a lifetime warranty and free 24/7 technical support

General Information
Manufacturer	Omnitron Systems
Manufacturer Part Number	4395
Manufacturer Website Address	http://www.omnitron-systems.com
Brand Name	Omnitron Systems
Product Line	FlexPoint
Product Model	4395
Product Name	14 Module FlexPoint Powered Chassis
Product Type	Media Converter Chassis
Physical Characteristics
Height	3.5"
Width	19"
Depth	9.5"
Weight (Approximate)	6 lb
Miscellaneous
Additional Information	FlexPoint 14-Module AC Power-Redundant Powered Chassis
Certifications & Standards	UL CE FCC Class A
Country of Origin	United States
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty	Lifetime

The Flexpoint powered chassis is a 19" rack-mountable chassis with redundant power supplies that houses up to 14 stand-alone flexpoint media converters. It is most useful in applications where reliability is important and is especially applicable when power redundancy is required to ensure continuous operation in mission-critical applications.
