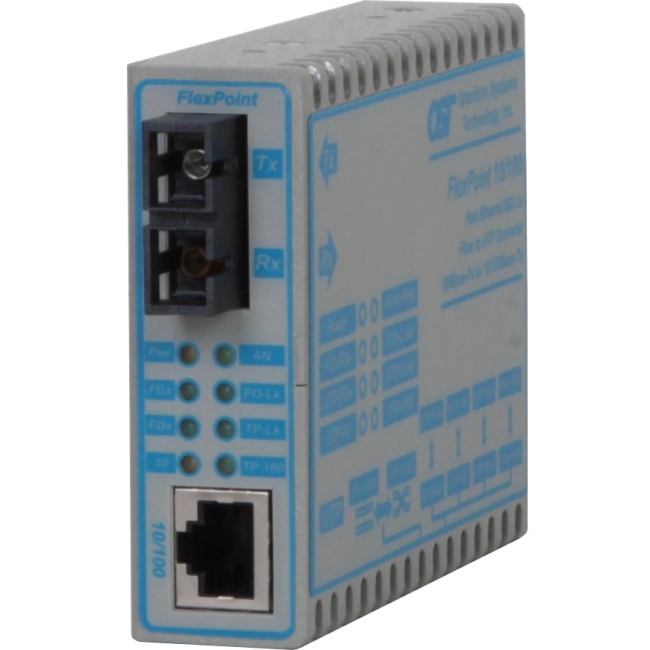

OMNITRON 4340-1 10/100 BASE-T / 100 BASE-F FLEXPOINT 10/100 SC MM 1310NM 2KM
Mfg Part Number: 4340-1 , Item #: 283233
Image may not reflect the actual item.
Price: $296.98
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 19, 2025
No Sales Tax except these states
, PO and Wire.
The FlexPoint 10/100 is a modular 10BASE-T or 100BASE-TX copper to 100BASE-FX fiber media converter that provides reliable and cost-effective network connectivity and fiber extension.
The FlexPoint 10/100 features a 10/100 auto-sensing RJ-45 port that adjusts to the highest level of performance supported by the attached device. An override switch provides manual control over the 10/100 operation of the RJ-45 port and the Half/Full-Duplex operation of both the fiber and RJ-45 ports.
When configured for auto-negotiation, the RJ-45 port automatically detects and sets MDI/MDI-X crossover. When configured for manual operation, the FlexPoint 10/100 features a manual switch to provide the MDI/MDI-X crossover.
The fiber port supports fixed-fiber connectors (SC, ST or LC) and Small Form Pluggable (SFP) transceivers, enabling easy adaptability to different fiber types, distances and wavelengths. The FlexPoint 10/100 supports multimode, single-mode, single-mode single-fiber, in standard and CWDM wavelengths.
Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration to legacy devices or specific network requirements. The LEDs report the availability of power, port activity and link status, speed and duplex modes.
The FlexPoint 10/100 features a 10/100 auto-sensing RJ-45 port that adjusts to the highest level of performance supported by the attached device. An override switch provides manual control over the 10/100 operation of the RJ-45 port and the Half/Full-Duplex operation of both the fiber and RJ-45 ports.
When configured for auto-negotiation, the RJ-45 port automatically detects and sets MDI/MDI-X crossover. When configured for manual operation, the FlexPoint 10/100 features a manual switch to provide the MDI/MDI-X crossover.
The fiber port supports fixed-fiber connectors (SC, ST or LC) and Small Form Pluggable (SFP) transceivers, enabling easy adaptability to different fiber types, distances and wavelengths. The FlexPoint 10/100 supports multimode, single-mode, single-mode single-fiber, in standard and CWDM wavelengths.
Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration to legacy devices or specific network requirements. The LEDs report the availability of power, port activity and link status, speed and duplex modes.
Main Specification
| General Information | |
| Manufacturer | Omnitron Systems |
| Manufacturer Part Number | 4340-1 |
| Manufacturer Website Address | http://www.omnitron-systems.com |
| Brand Name | Omnitron Systems |
| Product Line | FlexPoint |
| Product Series | 10/100 |
| Product Model | 4340-x |
| Product Name | FlexPoint 10/100 SC Multimode 5km US AC Powered |
| Package Type | Retail |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 0.1 mil |
| Maximum Distance Supported | 5.01 km |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Ethernet Technology | Ethernet |
| Network Technology | 100Base-FX |
| Network Technology | 10/100Base-TX |
| Power Description | |
| Input Voltage | 120 V AC |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Form Factor | External |
| Form Factor | Wall Mountable |
| Form Factor | Desktop |
| Height | 1" |
| Width | 3" |
| Depth | 4" |
| Weight (Approximate) | 6 oz |
| Miscellaneous | |
| Package Contents |
|
| Additional Information | Input Voltage:
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | Lifetime |
• 10/100BASE-TX to 100BASE-FX Rate Converter MM/SC
• 1310 nm (2 km)
The UTP port supports 10/100 and half/full duplex auto-sensing
The FlexPoint 10/100 rate converter is a member of the modular FlexPoint product line. The FlexPoint product line supports the IEEE 802.3 standard and provides an extensive range of connectivity options across different media types.
This rate converter features one 10/100 auto-sensing UTP port that adjusts its speed to the speed of the attached device. In addition, the FlexPoint 10/100 automatically negotiates and provides full-duplex or half-duplex capability to maximize network bandwidth. These features allow a seamless migration path to newer technologies. An override switch provides total manual control over the 10/100 operation of the UTP port and the half/full duplex operation of both the fiber and UTP port.
The fiber port operates at 1300 nm and features SC connectors. Multimode fiber models support distances of up to 2 km.
Using its store-and-forward technology with 1-Mbyte buffer memory, the FlexPoint 10/100 supports a full wire-speed of 148,800 64-byte packets per second simultaneously in both directions.
Each port of the FlexPoint 10/100 is capable of MAC address learning and aging with support for up to 1,024 MAC addresses, as well as packet filtering and forwarding. The FlexPoint checks all packets and discards illegal or corrupted packets thus providing fragment-free packet forwarding and enhancing the overall network performance.
It features a crossover switch that facilitates a straight-through cable connection to a workstation or hub and eliminates the need for a crossed cable.
The FlexPoint 10/100 provides diagnostic data through LED indicators that assist in network installation and maintenance. The LEDs report the availability of power, the modes of operation (10/100 and half or full duplex), the detection of devices and data being received by the fiber and UTP ports.
The FlexPoint offers several mounting options. It can be mounted stand-alone utilizing optional wall-mounting hardware. It can also be rack-mounted using a 5-unit rack-mounting shelf or in a 14-unit FlexPoint Powered Chassis.
Features:
The FlexPoint 10/100 is a Fast Ethernet fiber to 10BASE-T or 100BASE-TX twisted pair rate converter.
The UTP port supports 10/100 and half/full duplex auto-sensing.
The fiber port supports half or full duplex, multimode (MM) fiber SC connectors, and supports distances up to 110 km.
Supports 10BASE-T, 100BASE-TX, 100BASE-Fx and IEEE 802.3 specifications.
Features a crossover switch for easy connection to hubs or switches.
Over 1K MAC address table entries available.
Wall-mountable or rack-mountable in a 14-unit FlexPoint Powered Chassis or 5-unit rack-mounting shelf.
Software-independent.
Lifetime Warranty.
• 1310 nm (2 km)
The UTP port supports 10/100 and half/full duplex auto-sensing
The FlexPoint 10/100 rate converter is a member of the modular FlexPoint product line. The FlexPoint product line supports the IEEE 802.3 standard and provides an extensive range of connectivity options across different media types.
This rate converter features one 10/100 auto-sensing UTP port that adjusts its speed to the speed of the attached device. In addition, the FlexPoint 10/100 automatically negotiates and provides full-duplex or half-duplex capability to maximize network bandwidth. These features allow a seamless migration path to newer technologies. An override switch provides total manual control over the 10/100 operation of the UTP port and the half/full duplex operation of both the fiber and UTP port.
The fiber port operates at 1300 nm and features SC connectors. Multimode fiber models support distances of up to 2 km.
Using its store-and-forward technology with 1-Mbyte buffer memory, the FlexPoint 10/100 supports a full wire-speed of 148,800 64-byte packets per second simultaneously in both directions.
Each port of the FlexPoint 10/100 is capable of MAC address learning and aging with support for up to 1,024 MAC addresses, as well as packet filtering and forwarding. The FlexPoint checks all packets and discards illegal or corrupted packets thus providing fragment-free packet forwarding and enhancing the overall network performance.
It features a crossover switch that facilitates a straight-through cable connection to a workstation or hub and eliminates the need for a crossed cable.
The FlexPoint 10/100 provides diagnostic data through LED indicators that assist in network installation and maintenance. The LEDs report the availability of power, the modes of operation (10/100 and half or full duplex), the detection of devices and data being received by the fiber and UTP ports.
The FlexPoint offers several mounting options. It can be mounted stand-alone utilizing optional wall-mounting hardware. It can also be rack-mounted using a 5-unit rack-mounting shelf or in a 14-unit FlexPoint Powered Chassis.
Features:
The FlexPoint 10/100 is a Fast Ethernet fiber to 10BASE-T or 100BASE-TX twisted pair rate converter.
The UTP port supports 10/100 and half/full duplex auto-sensing.
The fiber port supports half or full duplex, multimode (MM) fiber SC connectors, and supports distances up to 110 km.
Supports 10BASE-T, 100BASE-TX, 100BASE-Fx and IEEE 802.3 specifications.
Features a crossover switch for easy connection to hubs or switches.
Over 1K MAC address table entries available.
Wall-mountable or rack-mountable in a 14-unit FlexPoint Powered Chassis or 5-unit rack-mounting shelf.
Software-independent.
Lifetime Warranty.
