SYA12K16PXR APC Symmetra LX 12kVA Scalable to 16kVA N+1 Ext. Run Tower, 208/240V Input, 208/240V and 120V Output UPS
Mfg Part Number: SYA12K16PXR , Item #: 276760
Special Note: Jan 05, 2020
NCNR; If you do not have loading facility, please contact our CST for special handling service.

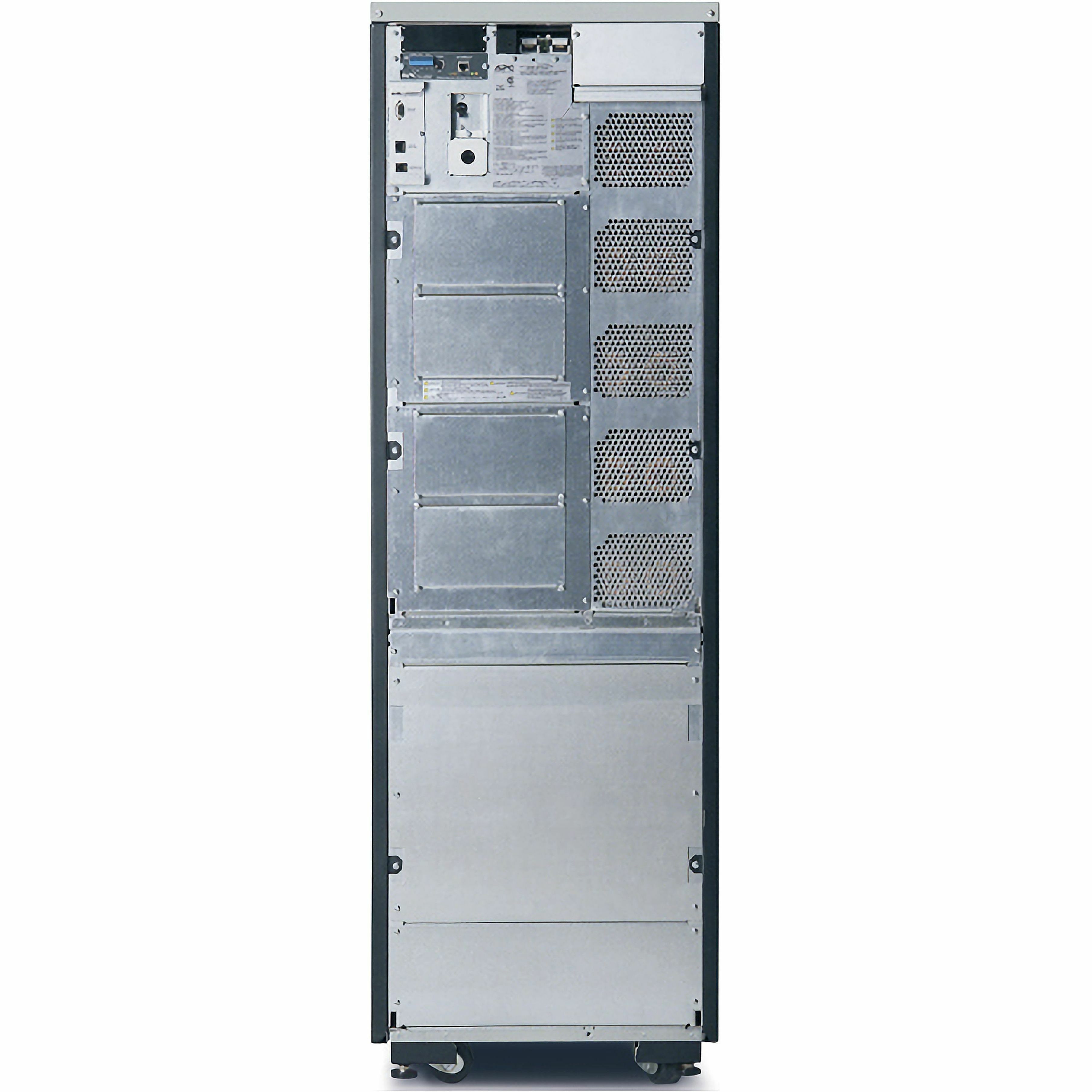

Image may not reflect the actual item.
Price: $25,704.09
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 02, 2025
No Sales Tax except these states
, PO and Wire.
High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
Main Specification
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SYA12K16PXR |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Symmetra |
| Product Series | LX |
| Product Name | Symmetra LX 12kVA Scalable to 16kVA N+1 Ext. Run Tower, 208/240V Input, 208/240V and 120V Output UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hard Wire 4-wire |
| Receptacle Type | Hard Wire 4-wire |
| Receptacle Detail | 1 x Hard Wire 4-wire |
| Number of Battery & Surge Outlets | 1 |
| Overload Protection | Yes |
| Power Description | |
| Load Capacity (VA) | 12 kVA |
| Input Voltage | 208 V AC |
| Output Voltage | 120 V AC |
| Output Voltage | 208 V AC |
| Input Frequency | 65 Hz |
| Output Frequency | 60 Hz |
| Input Current | 56 A |
| Waveform Type | Sine Wave |
| Management | |
| Network Management | SNMP Manageable |
| Bypass Switch | Automatic & Manual |
| Bypass Switch | External (Optional) |
| Emergency Power OFF | Yes |
| Interfaces/Ports | |
| Modular Slots | 1 x SmartSlot |
| Battery Information | |
| Battery Characteristics | Spill-proof/Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 30.10 Minute |
| Backup/Run Time (Half Load) | 1.12 Hour |
| Typical Battery Recharge Time | 7.50 Hour |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Thermal Dissipation | 1463.89 W |
| Physical Characteristics | |
| Color Family | Dual Color |
| Product Color | Silver |
| Product Color | Black |
| Form Factor | Tower |
| Rack Height | 19U |
| Mounting Location | Front |
| Height | 59.7" |
| Width | 19" |
| Depth | 28.6" |
| Weight (Approximate) | 1077.27 lb |
| Miscellaneous | |
| Package Contents | |
| Additional Information |
|
| Certifications & Standards | CSA |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYA12K16PXR_ROHS_DECLARATION&p_FileName=SYA12K16PXRKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65036044&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65036044&lang=en-us |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| REACH free of SVHC | No |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
| Additional Warranty Information | 2 years repair or replace |
• Power array ( external )
• AC 208/240 V
• 12000 VA
• UPS battery lead acid
• EN
• Fast EN
• 1 output connector(s)
• 32 U
Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease footprint or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.
• AC 208/240 V
• 12000 VA
• UPS battery lead acid
• EN
• Fast EN
• 1 output connector(s)
• 32 U
Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease footprint or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.
