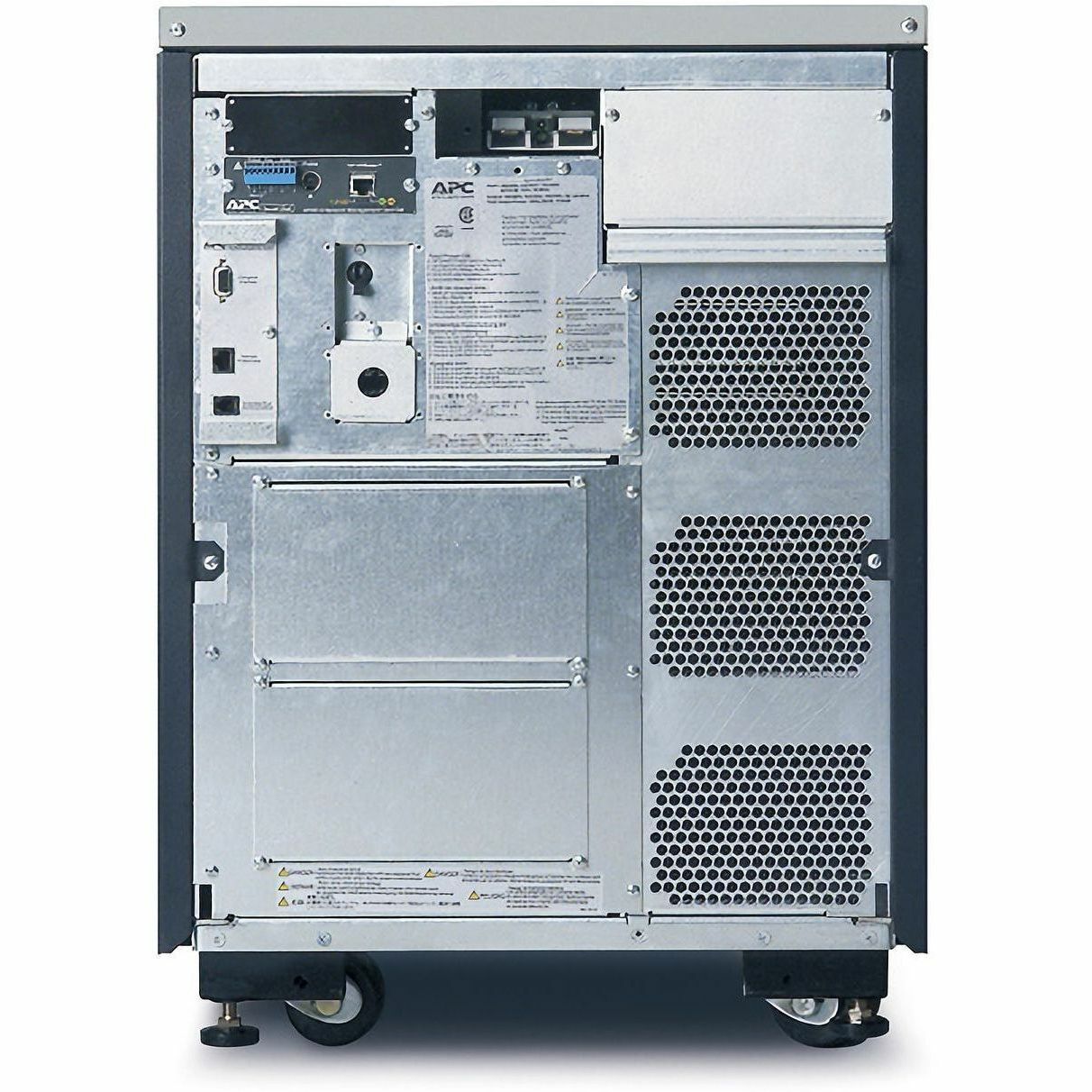

SYA4K8P APC Symmetra LX 4kVA Scalable to 8kVA N+1 Tower UPS

High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.

General Information
Manufacturer	Schneider Electric SA
Manufacturer Part Number	SYA4K8P
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Symmetra
Product Series	LX
Product Name	Symmetra LX 4kVA Scalable to 8kVA N+1 Tower UPS
Product Type	Double Conversion Online UPS
Technical Information
Plug/Connector Type	Hard Wire 4-wire
Receptacle Type	Hard Wire 4-wire
Receptacle Detail	1 x Hard Wire 4-wire
Number of Battery & Surge Outlets	1
Overload Protection	Yes
Power Description
Load Capacity (VA)	4000 VA
Input Voltage	208 V AC
Output Voltage	120 V AC
Output Voltage	208 V AC
Input Frequency	65 Hz
Output Frequency	60 Hz
Input Current	18 A
Waveform Type	Sine Wave
Management
Network Management	SNMP Manageable
Bypass Switch	External (Optional)
Bypass Switch	Automatic
Bypass Switch	Manual
Emergency Power OFF	Yes
Interfaces/Ports
Modular Slots	1 x SmartSlot
Battery Information
Battery Characteristics	Spill-proof/Maintenance-free
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	5.90 Minute
Backup/Run Time (Half Load)	16.90 Minute
Typical Battery Recharge Time	3 Hour
Environmental Conditions
Maximum Operating Temperature	104°F (40°C)
Thermal Dissipation	1021.35 W
Physical Characteristics
Color Family	Dual Color
Product Color	Silver
Product Color	Black
Form Factor	Tower
Rack Height	13U
Mounting Location	Front
Height	26.4"
Width	19"
Depth	28.6"
Weight (Approximate)	347.74 lb
Miscellaneous
Package Contents	Symmetra LX 4kVA Scalable to 8kVA N+1 Tower UPS CD with software Documentation CD Installation guide User manual Web/SNMP management card
Additional Information	Automatic restart of loads after UPS shutdown Audible and visible alarms prioritized by severity InfraStruXure Manager Compatible Plug-and-Play external batteries Configurable for 208 or 240 nominal output voltage
Certifications & Standards	CSA
Optimized Energy Efficiency	Yes
Product Take Back Program	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYA4K8P_ROHS_DECLARATION&p_FileName=SYA4K8PKIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=766160&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=766160&lang=en-us
California Proposition 65 Warning	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
REACH free of SVHC	No
Country of Origin	United States
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	2 Year
Additional Warranty Information	2 years repair or replace

•  Symmetra LX 4kVA Scalable to 8kVA N+1 Tower 208/240V Input 208/240V and 120V Output

High performance redundant power protection with scalable power and run time for IT and telecommunications equipment
Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability and a comprehensive portfolio available from 4-16 kVA N+1, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.

Features:
Audible Alarms
Automatic Self Test
Automatic Shutdown
Battery modules connected in parallel
Built-in automatic bypass
Built-in manual bypass
Built-in SmartSlot
Built-in Web/SNMP management
Component-level Predictive Failure Analysis
Double Conversion On-Line
EPO
Extendable Run Time
Generator Compatible
Hardwire Capabilities
Hot Swap Batteries
Hot Swap Electronics
Input Power Factor Correction
Intelligent Battery Management
LCD AlphaNumeric Display
Load Meter
Modular design
Multiple Output Voltages
N+1 Redundancy
Overload Indicator
Programmable Frequency
Rack/Tower Convertible
Replace Batt Indicator
Resettable circuit breaker
Scalable Run Time
Sine-wave output
Status Indicator LED's
Surge Protection
Unattended Safe & Graceful Shutdown
User Replaceable batteries
Web Management
Wide input voltage range

Includes CD with software
Documentation CD
Installation Guide
User Manual
Web/SNMP Management Card
