VSC-HDMI-SDI Black Box HDMI to 3G-SDI/HD-SDI Converter
Mfg Part Number: VSC-HDMI-SDI , Item #: 1661168
, PO and Wire.
- Autodetects SDI standard on its 75-ohm coax outputs.
- EDID learning for optimal source-to-screen communications.
- Handles higher SDI bandwidth of 2.97 Gbps (3G-SDI).
- Provides up to eight-channel audio support.
- No software or driver installation required.
- Easy to configure using DIP switches.
- Wall-mountable for space-saving installation.
Ideal for professional video and broadcast engineering applications, this handy converter enables you to connect an HDMI source to a 3G-SDI, HD-SDI, or SD-SDI display. This way, you can use a consumer electronics device or a camera with HDMI output in your SDI setup.
The affordably priced device supports an array of HD video formats and provides digitally pure HDMI-to-SDI conversion, ensuring no loss in the conversion for both video and audio signaling.
Use it in a TV studio, post-production, digital cinema, or AV application where you need to show uncompressed digital video from an HDMI source on a professional SDI monitor or connect an HDMI camera to SDI switching equipment.

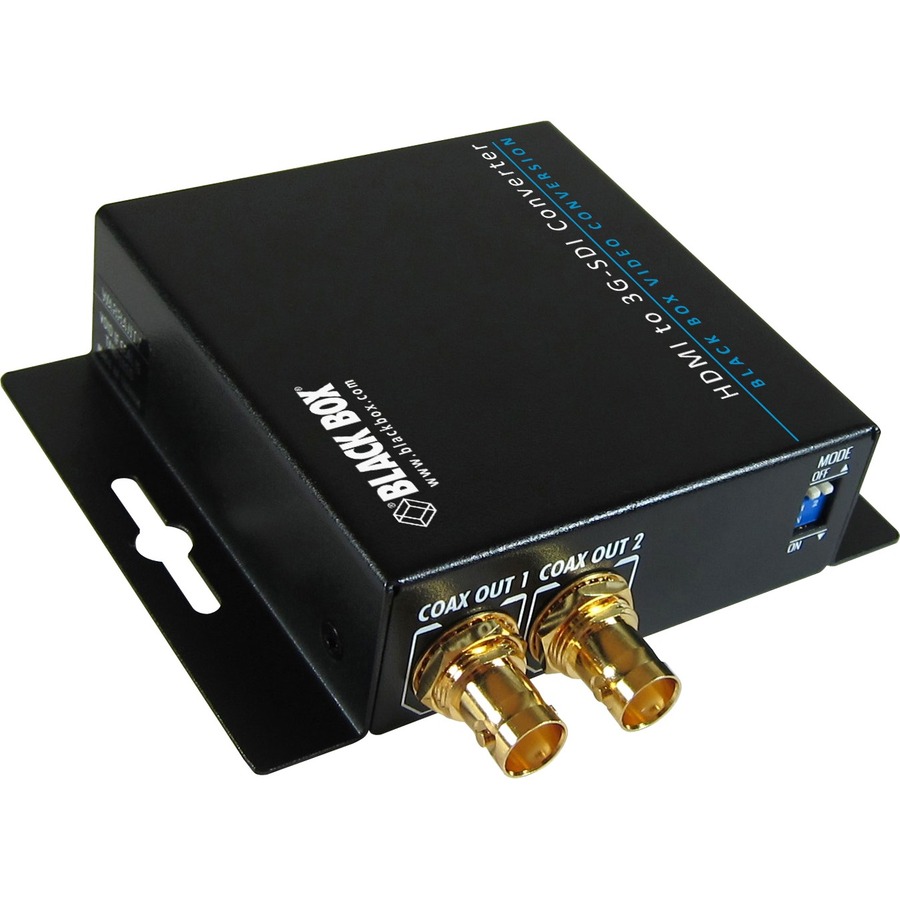

It also features SDI loop-out via a second coax connector. This way you can display a video on two SDI monitors, one locally and the second one in another room. Or use the loop-out to daisy-chain to additional SDI equipment.
You can also combine it in an application with our 3G-SDI/HD-SDI to HDMI Converter (VSC-SDI-HDMI) to extend HDMI over coax.
The HDMI to 3G-SDI/HD-SDI Converter processes up to eight channels of audio, including 7.1-channel or 5.1-channel audio in addition to HDMI video. It can be used with surround sound or Dolby® TrueHD audio equipment.
For both older and newer SDI interfaces, the converter processes bit rates from 270 Mbps up to 2.97 Gbps.
| General Information | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | VSC-HDMI-SDI |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Name | HDMI to 3G-SDI/HD-SDI Converter |
| Product Type | Signal Converter |
| Technical Information | |
| Functions | Video Conversion |
| Video Signal Format | PAL |
| Video Signal Format | NTSC |
| Maximum Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Frequency Range | 50Hz to 60Hz |
| Interfaces/Ports | |
| HDMI | Yes |
| SDI | Yes |
| Number of SDI Outputs | 2 |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Height | 1.2" |
| Width | 3.1" |
| Depth | 3.3" |
| Weight (Approximate) | 1.70 lb |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
