BLACK BOX VSC-SDI-HDMI CONNECT 3G-SDI, HD-SDI, OR SD-SDI SOURCE FOR OUTPUT ON HDMI DISPLAY. REPURPOSE O
Mfg Part Number: VSC-SDI-HDMI , Item #: 1547576
, PO and Wire.

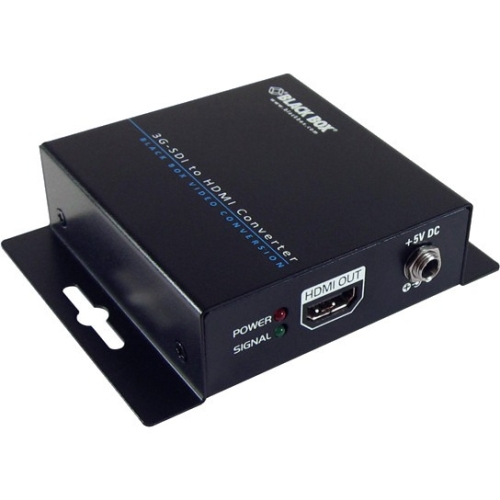

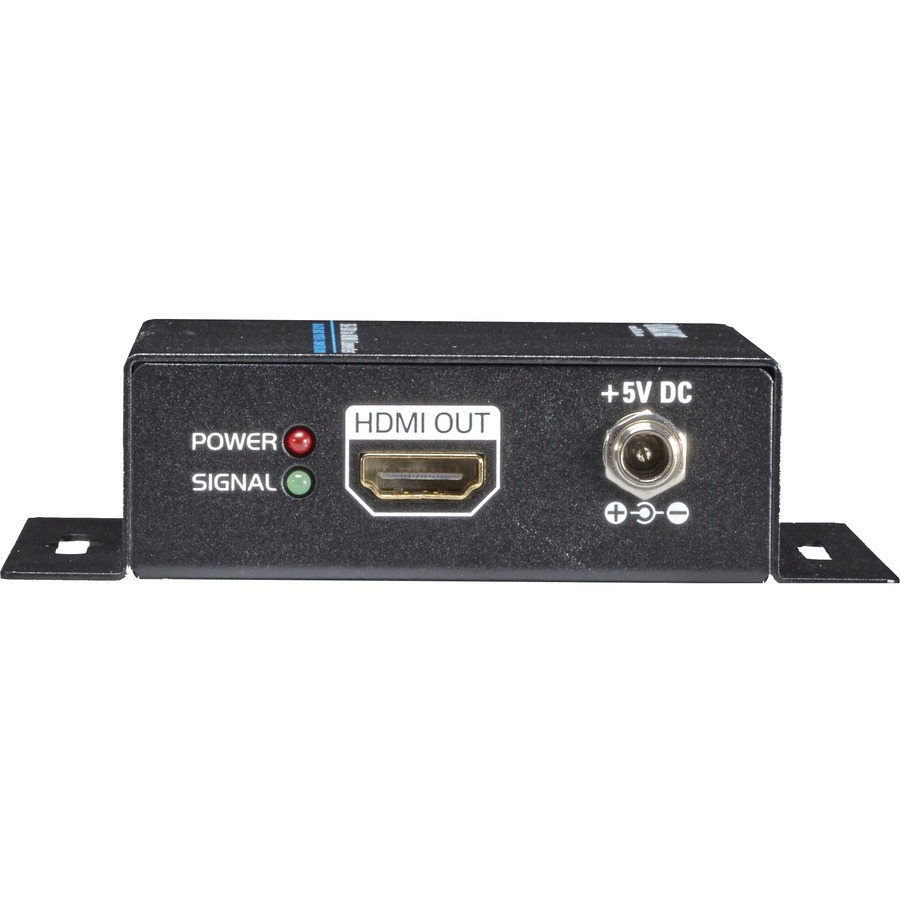

Essential for any professional video and broadcast engineering application, this handy converter enables you to connect a 3G-SDI, HD-SDI, or SD-SDI source for output on an HDMI display. This way, you can repurpose an ordinary LCD for video monitoring in your SDI setup.
The affordably priced device provides digitally pure SDI-to-HDMI conversion, ensuring no loss in the conversion for both video and audio signaling.
Use it in a TV studio, post-production, digital cinema, or AV application where you need to show uncompressed digital video from professional video equipment on a consumer-grade HDTV.

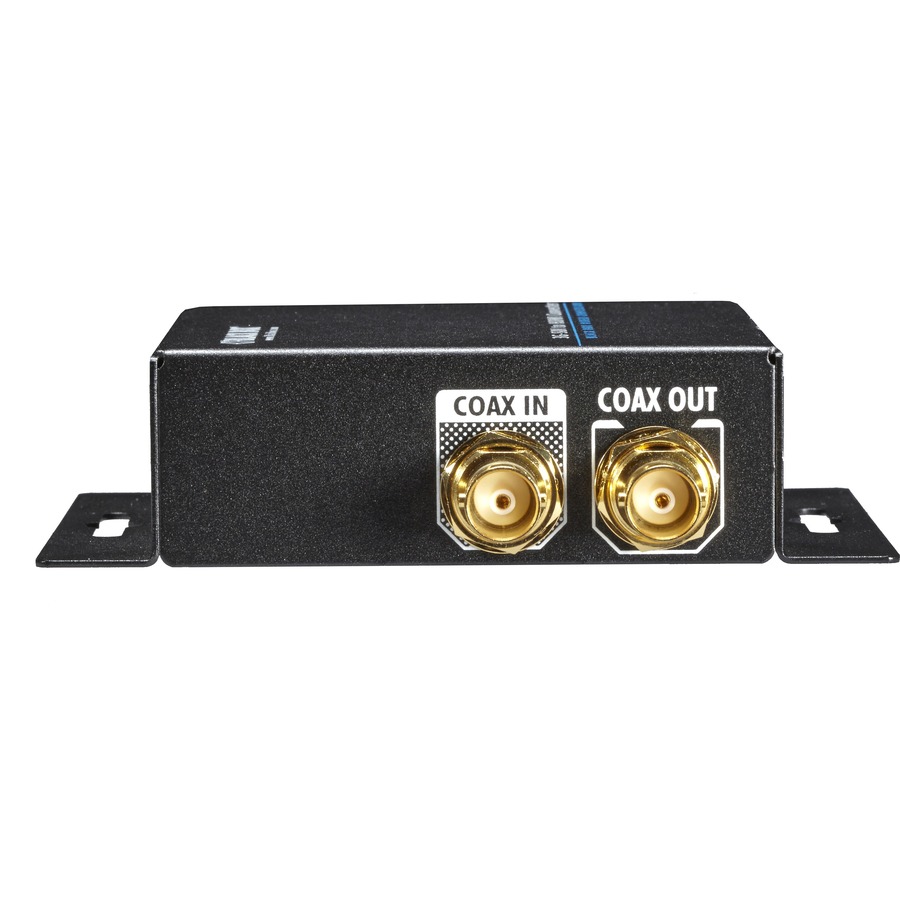

Even better, it features SDI loop-out via a second coax connector. This way you can display a 3G-SDI signal from a camera on an HDMI panel while simultaneously outputting the 3G-SDI signal to a second SDI device for local monitoring. Or use the loop-out to daisy-chain to additional SDI equipment.
The 3G-SDI/HD-SDI to HDMI Converter processes up to eight channels of audio, including 7.1-channel or 5.1-channel audio in addition to HDMI video. If your SDI source device supplies multiple channels of surround sound or Dolby® TrueHD audio, for example, the converter outputs the same number of channels for the HDMI connector's pinning.
For both older and newer SDI interfaces, the converter processes bit rates from 270 Mbps up to 2.97 Gbps.
Cable equalization helps compensate for loss when connecting the converter to an SDI source at maximum standard distances*.
| General Information | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | VSC-SDI-HDMI |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Name | 3G-SDI/HD-SDI to HDMI Converter |
| Product Type | Signal Converter |
| Technical Information | |
| Functions | Video Conversion |
| Maximum Resolution | 1920 x 1080 |
| Maximum Data Transfer Rate | 23.76 Gbit/s |
| Digital Signal | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| SDI | Yes |
| Number of SDI Inputs | 1 |
| Number of SDI Outputs | 1 |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Height | 1.2" |
| Width | 3.1" |
| Depth | 3.3" |
| Weight (Approximate) | 3.70 lb |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | CE |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
