Over 20 million units sold - the UPS you can trust
Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMT1000J |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |

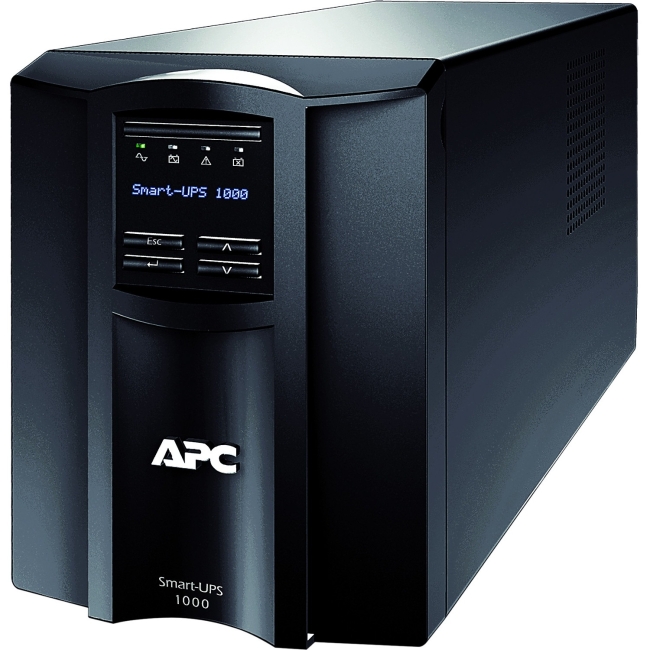

| Product Name | Smart-UPS 1000VA LCD 100V |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 8 |
| Protection Type | Surge |
| Cord Length | 6 ft |
| Power Description | |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (Watt) | 670 W |
| Input Voltage | 100 V AC |
| Input Current | 10 A |
| Output Voltage | 100 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 459 J |
| Management | |
| Alarm | On Battery |
| Alarm | Low Battery |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Total Number of Expansion Slots | 1 |
| Battery Information | |
| Number of Batteries | 1 |
| Battery Characteristics | Maintenance-free, Sealed, Spill-proof |
| Battery Chemistry | Lead Acid |
| Typical Battery Recharge Time | 4 Hour |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission | 40 dB |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 8.9" |
| Width | 6.8" |
| Depth | 17.3" |
| Form Factor | Tower |
| Weight (Approximate) | 46.20 lb |
| Miscellaneous | |
| Package Contents | |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 2 Year |
