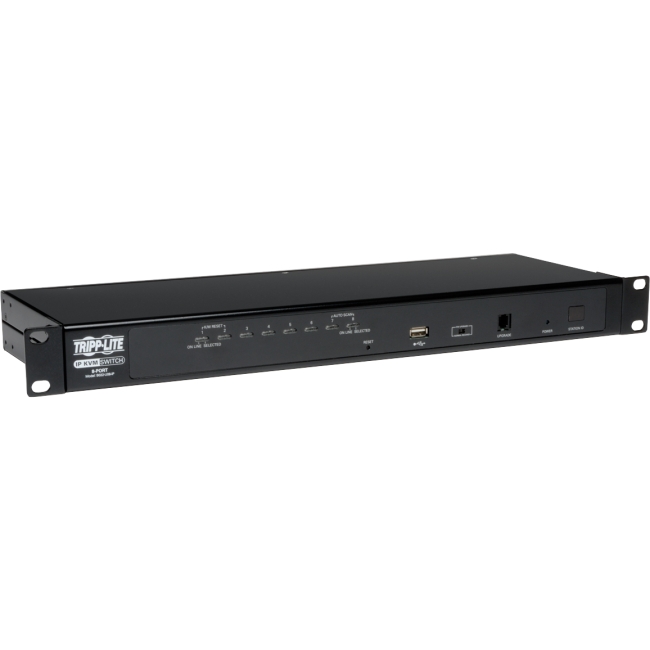

B022-U08-IP Tripp Lite KVM Switch - 8-Port NetDirector 1U Rackmount IP KVM Switch

Mfg Part Number:  B022-U08-IP
Image may not reflect the actual item.
Price: $733.00
Quantity:
In Stock: 132
Last Updated: Jul 09, 2025
No Sales Tax except these states
, PO and Wire.
The B022-U08-IP NetDirector IP KVM Switch allows secure access to multiple computers from a single KVM (keyboard, monitor and mouse) console. A single KVM can directly control up to 8 computers. Built-in IP access allows the B022-U08-IP to be accessed from any computer on the LAN, WAN or Internet, whether that computer is located down the hall or halfway around the world. Simply log on via web browser using the Windows- and Java-based browser clients; or, access the KVM without a browser using the included Windows- and Java-based non-browser applications. Remote authentication is also supported via RADIUS and LDAP/S.A full-screen graphical OSD with multi-level authentication (Super Administrator, Administrator and User) allows you to quickly and efficiently manage your installation, and can be displayed in English, Spanish, French, German, and Japanese. Critical events on the installation can be tracked via the Log in the web interface, or the included Windows-based Log Server can be installed for more robust tracking. Once a remote session is initiated, you will be able to control the connected computers as if they were physically connected to your keyboard, monitor, and mouse. You can manually switch between computers using keyboard hotkeys, the remote session toolbar, or the KVM's OSD interface; or, you can automatically scan through each port using Auto Scan or Panel Array modes. Constructed of heavy-duty steel housing. The B022-U08-IP includes two 6-ft Tripp Lite USB/PS2 combo KVM cable kits. All other cable kits can be ordered separately.

More from the Manufacturer

Main Specification
General Information
Manufacturer Eaton Corporation
Manufacturer Part Number B022-U08-IP
Manufacturer Website Address http://www.eaton.com
Brand Name Tripp Lite by Eaton
Product Line NetDirector
Product Name KVM Switch - 8-Port NetDirector 1U Rackmount IP KVM Switch
Product Type KM Switchbox
Technical Information
KVM Technology Digital
Number of Computers Supported 8
Number of Local Users Supported 1
Number of Remote Users Supported 64
Minimum Scan Interval 1 Second
Video
Graphic Mode QXGA
Maximum Video Resolution 2048 x 1536
Interfaces/Ports
Network (RJ-45) Yes
USB Yes
Number of Network (RJ-45) Ports 1
Number of USB Ports 1
Physical Characteristics
Color Family Black
Product Color Black
Form Factor Rack-mountable
Rack Height 1U
Height 1.7"
Width 17"
Depth 6"
Weight (Approximate) 6.10 lb
Miscellaneous
Package Contents
  • KVM Switch - 8-Port NetDirector 1U Rackmount IP KVM Switch
  • 2 x 6 ft. USB/PS2 Combo KVM Cable Kits
  • USB/PS2 Combo Console Cable Kit
  • RJ11 to DB9 Firmware Upgrade Cable
  • Rackmount Hardware
  • External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5.3V, 2.4A)
  • Rubber Feet
  • CD with Owner's Manual and Device Files
  • Quick Start Guide
Platform Supported PC
Certifications & Standards
  • CE
  • FCC
  • UL
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Country of Origin Taiwan
TAA Compliant Yes
Warranty
Limited Warranty 3 Year
General Information
Product -
Interface Type -
Operating Supply Voltage -
