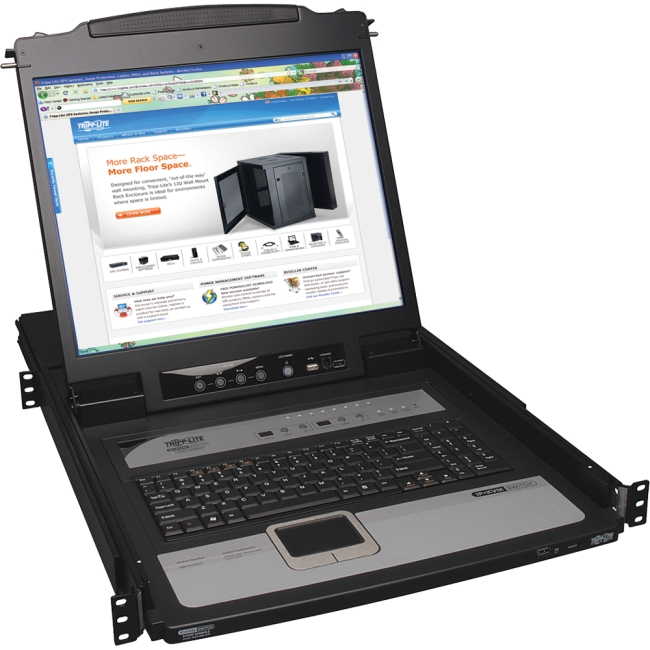

Tripp Lite NetDirector B020-U08-19-IP Rackmount LCD with KVM - Steel Housing

Tripp Lite's B020-U08-19-IP KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, the B020-U08-19-IP can be accessed from any computer on the LAN, WAN or Internet. Easy to install and use, it's the optimal solution for controlling up to 8 computers/servers. Increase the number of connected computers up to 256 by daisy-chaining up to 31 B022-U08 KVM switches.

The B020-U08-19-IP has a built-in 19" LCD screen that supports video resolutions up to 1280 x 1024 @ 75Hz, with remote monitor resolutions up to 1600 x 1200 @ 60Hz. You can switch easily between the 8 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Up to 64 users can be authorized with any combination of admins and users. Multi-level security enhances protection of data and equipment.

This switch controls PS/2 or USB computers/servers using a P778-Series Combo KVM Cable Kit (two cable kits are included). A USB port on the front of the keyboard lets you connect an external mouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U08-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	B020U0819IP
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite by Eaton
Product Line	NetDirector
Product Model	B020-U08-19-IP
Product Name	8-Port NetDirector 1U Rackmount Console IP KVM Switch w/19" LCD
Product Type	LCD Rack Console
Technical Information
KVM Switch	Yes
KVM Technology	Digital
Number of Computers Supported	8
Device Type	LCD Rack Console
Display & Graphics
Screen Size	19"
Display Screen Type	LCD
Screen Mode	SXGA
Screen Resolution	1280 x 1024
Input Devices
Keyboard	Yes
Pointing Device Type	TouchPad
Interfaces/Ports
USB	Yes
Number of USB Ports	2
Power Description
Input Voltage	120 V AC
Input Voltage	230 V AC
Physical Characteristics
Color Family	Black
Product Color	Black
Product Material	Steel
Rack Height	1U
Height	1.7"
Width	18.9"
Depth	27"
Weight (Approximate)	31 lb
Miscellaneous
Package Contents	8-Port NetDirector 1U Rackmount Console IP KVM Switch w/19" LCD 2 x 6 ft. USB/PS2 Combo KVM Cable Kits USB/PS2 Combo Console Cable Kit Grounding Wire RJ11 to DB9 firmware upgrade cable Rackmount Hardware C13 to 5-15P Power Cord CD with Owners Manual, Quick Start Guide, and Device Files Quick Start Guide
Certifications & Standards	UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, EN 60950-1
Platform Supported	Mac
Platform Supported	PC
Environmentally Friendly	Yes
Country of Origin	Taiwan
TAA Compliant	Yes
Warranty
Limited Warranty	1 Year
