TRIPP LITE

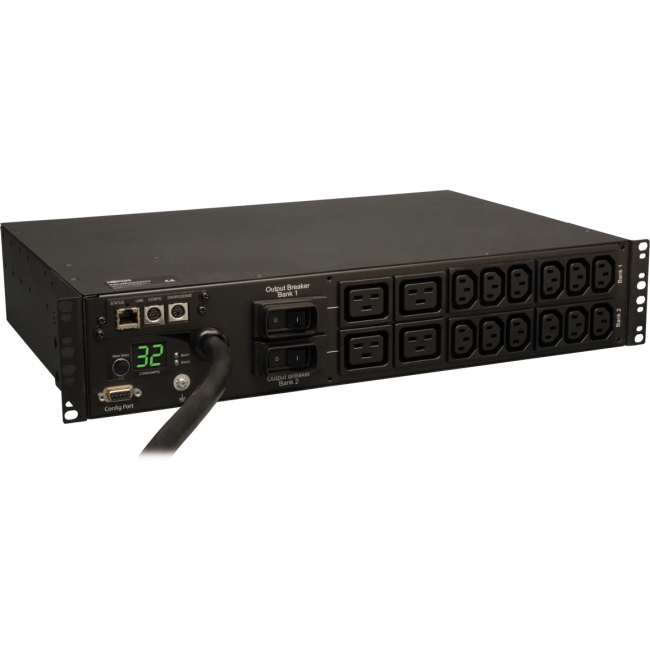

Tripp Lite Metered PDUMNH32HV 16-Outlets 7.3kW PDU
Mfg Part Number: PDUMNH32HV , Item #: 1233807
Image may not reflect the actual item.
Price: $835.01
+ Free Shipping
Quantity:
In Stock: 49
Last Updated: Sep 26, 2025
No Sales Tax except these states
, PO and Wire.
PDUMNH32HV Monitored 32A 2U horizontal rackmount PDU supports 7.4kW maximum capacity at 230V. Includes attached Blue 230V IEC-309 32A (2P+E) input plug and 16 230V outlets (12 C13, 4 C19) arranged in two separately breakered 8 outlet banks. Visual and remote current monitoring tracks the current for each 8 outlet bank separately, plus offers total power consumption for all 16 outlets combined. Supports 2U installation in 19 inch rackmount applications. Included cord retention brackets keep vital network equipment plugged in and continuously powered.
Main Specification
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | PDUMNH32HV |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite by Eaton |
| Product Series | Metered |
| Product Model | PDUMNH32HV |
| Product Name | Metered PDUMNH32HV 16-Outlets 7.4kW PDU |
| Product Type | PDU |
| Technical Information | |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Detail | 12 x IEC 60320 C13 |
| Receptacle Detail | 4 x IEC 60320 C19 |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Power Rating (Watt) | 7400 W |
| Management | |
| Management | Protocols:
|
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 2U |
| Height | 3.5" |
| Width | 17.5" |
| Depth | 12.5" |
| Weight (Approximate) | 13.70 lb |
| Miscellaneous | |
| Package Contents |
|
| Additional Information | Plug Type: IEC-309 32A (2P+E) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
