APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles.
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | AP8965 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Switched Rack |
| Product Model | AP8965 |

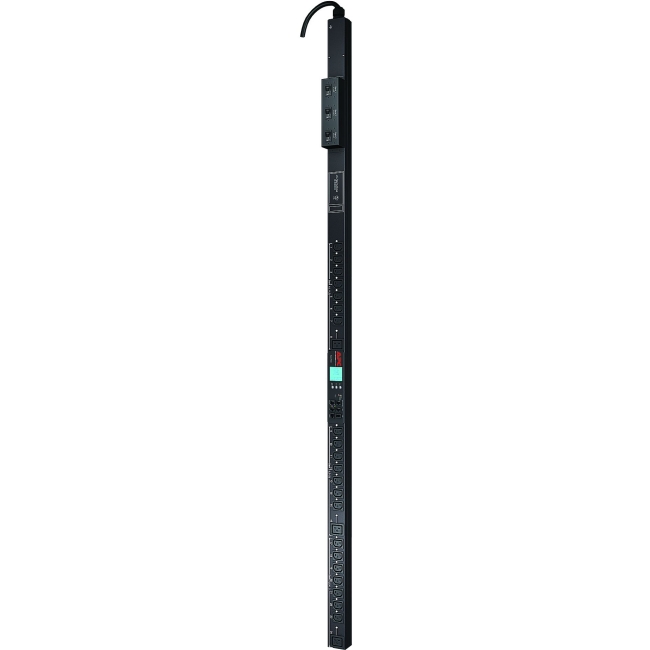

| Product Name | Switched Rack AP8965 24-Outlets 8.6kW PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Switched |
| Plug/Connector Type | NEMA L21-30P |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 3 x IEC 60320 C19 |
| Receptacle Detail | 21 x IEC 60320 C13 |
| Protection Type | Overload Protection |
| Power Description | |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Power Rating (Watt) | 8600 W |
| Physical Characteristics | |
| Mount Type | Rack-mountable |
| Form Factor | Tower |
| Height | 72" |
| Width | 2.2" |
| Depth | 2" |
| Weight (Approximate) | 18 lb |
| Miscellaneous | |
| Package Contents | |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
