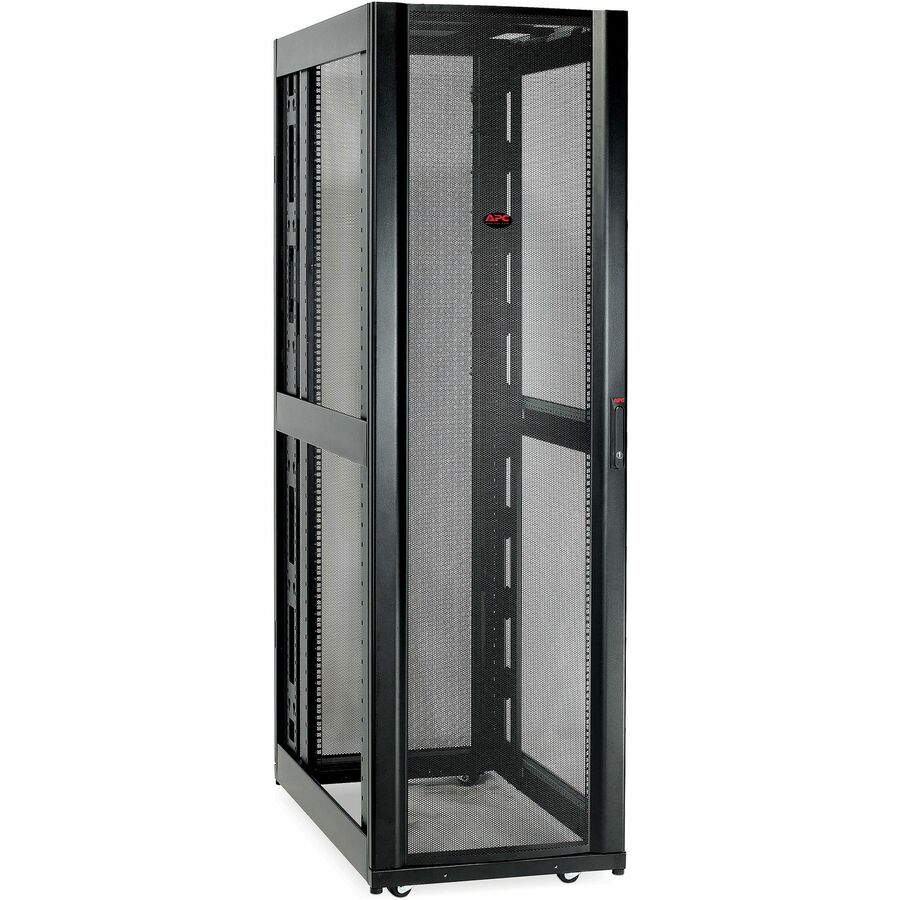

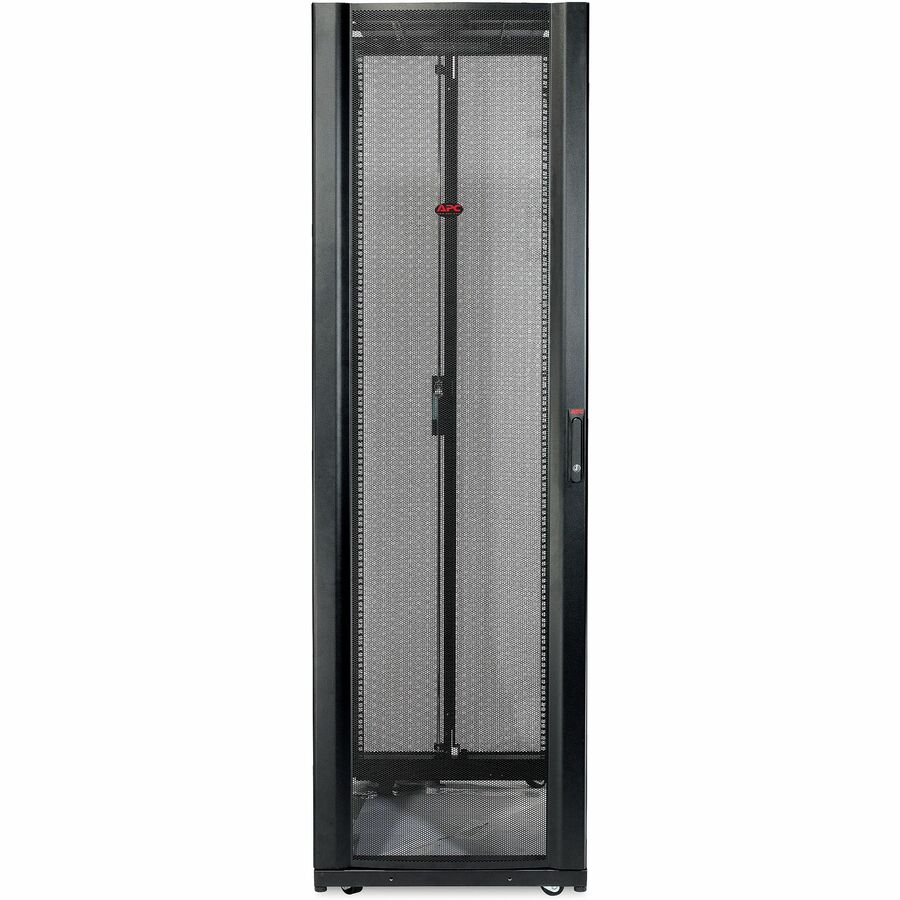

APC AR3107 Schneider Electric NetShelter SX 48U 600mm Wide x 1070mm Deep Enclosure

An industry standard rack with the most features for speed of deployment and installation. Ready for high density environments. 48U height allows for an additional 6U of rack mounting space maximizing u-space per rack footprint.

More from the Manufacturer

General Information
Manufacturer	Schneider Electric SA
Manufacturer Part Number	AR3107
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	NetShelter SX
Product Name	NetShelter SX 48U 600mm Wide x 1070mm Deep Enclosure
Product Type	Rack Cabinet
Technical Information
Front Rail	Yes
Rear Rail	Yes
Application/Usage	Storage
Application/Usage	Server
Features	Cable Management
Features	Perforated Door
Features	Casters
Features	Removable Side Panel
Features	Adjustable Mounting Rails

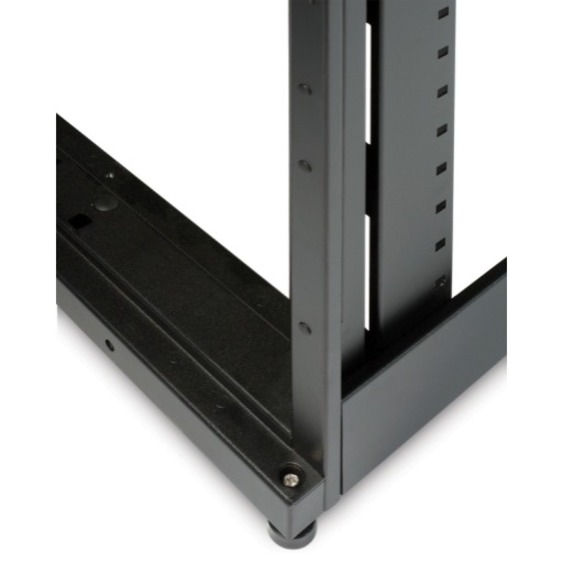

Features	Adjustable Leveling Feet
Physical Characteristics
Form Factor	Floor Standing
Color Family	Black
Product Color	Black
Units Per Pallet	1
Dynamic/Rolling Weight Capacity	2254.73 lb
Static/Stationary Weight Capacity	3006.31 lb
Rail Material Gauge	14
Roof/Top Material Gauge	18
Side Panel Material Gauge	18
Height	88.9"
Width	23.6"
Depth	42.1"
Weight (Approximate)	304.74 lb
Rack Height	48U
Rack Width	19"
Miscellaneous
Package Contents	NetShelter SX 48U 600mm Wide x 1070mm Deep Enclosure Baying Hardware Documentation CD Key(s) Keyed-alike Doors and Side Panels Leveling Feet Mounting Hardware Pre-installed Casters Side Panels
Compatibility	2/4U Servers
Certifications & Standards	Free of Substances of Very High Concern above the threshold
Product Take Back Program	Yes
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AR3107_ROHS_DECLARATION&p_FileName=AR3107KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=760062&lang=en-us
EU RoHS Declaration URL	https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=760062&lang=en-us
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_EN
REACH free of SVHC	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	5 Year
Additional Warranty Information	5 year repair or replace

MODEL- AR3107             VENDOR- APC

FEATURES- 48U Enclosure with Sides
       Rack enclosures with advanced cooling, power distribution, and cable
        management for server and networking applications in IT
        environments.
* Includes:
  - Casters
  - Doors
  - Ground Studs
  - Installation Guide
  - Leveling feet
  - Mounting Hardware
  - Roof
  - Side Panels
* Adjustable Front Vertical Mounting Rail
* Adjustable mounting depth
* Cable Access
* Casters
* Deep form factor (42"/1070mm)
* Door ventilation exceeds 830 in2 (5355 cm2)
* Expanded Cable Management
* Facilitates overhead cable management
* Facilitates overhead power distribution
* Facilitates rear/vertical cable management
* Guaranteed Compatability
* Leveling feet

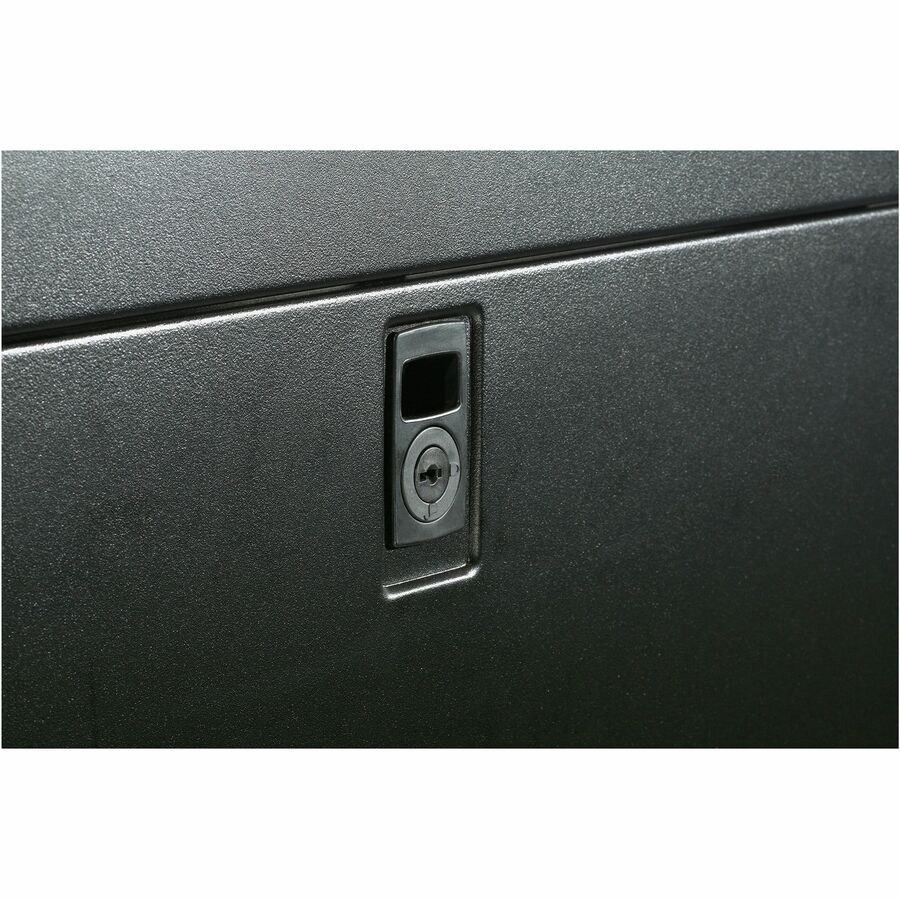

* Lockable doors and side panels
* Mounts two APC metered PDUs in one rear channel
* Multi-vendor equipment compatibility

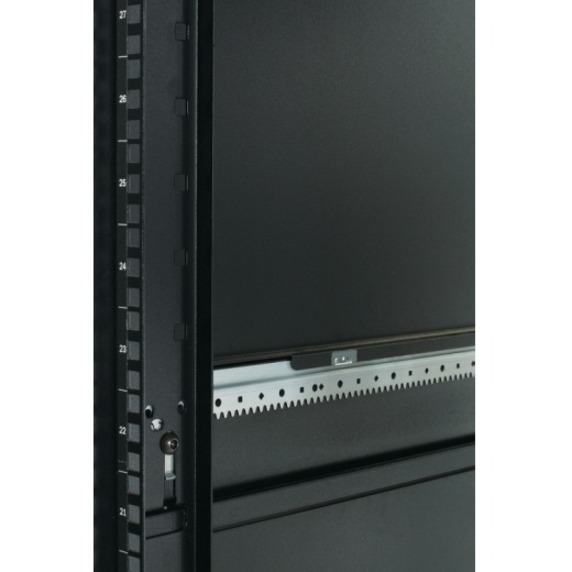

* Numbered U positions
* Optimized depth
* Protective grounding provisions
* Provides mounting option for PDUs
* Provides security between enclosures when bayed together

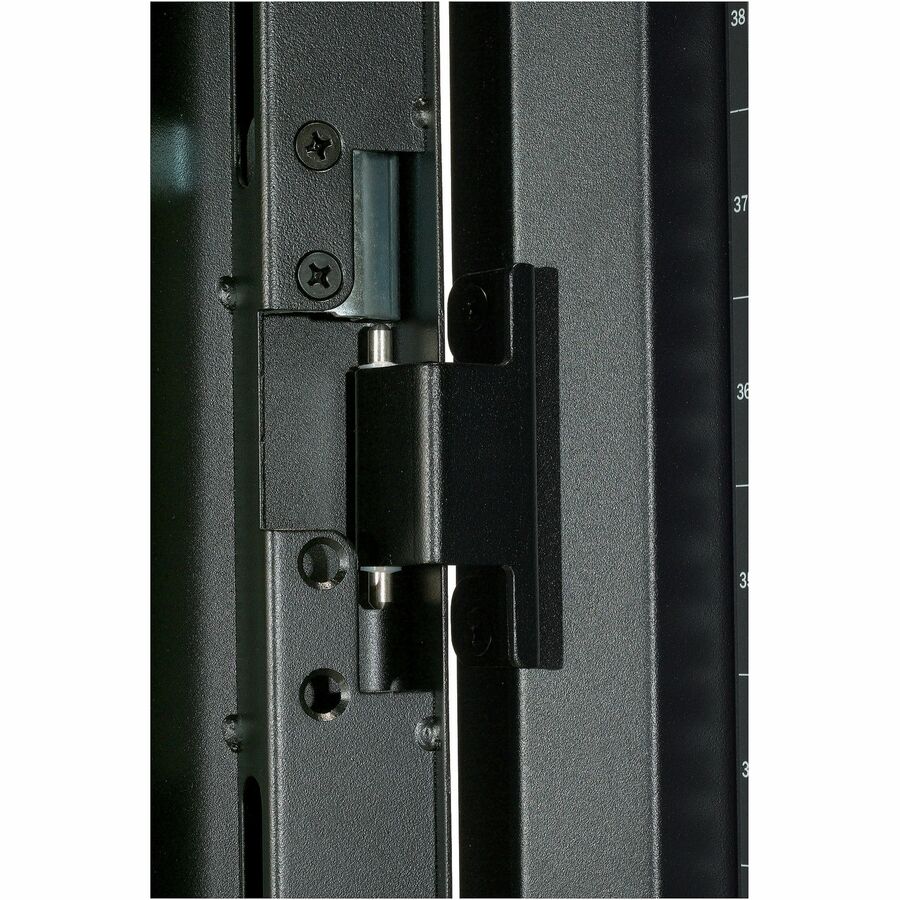

* Quick release doors

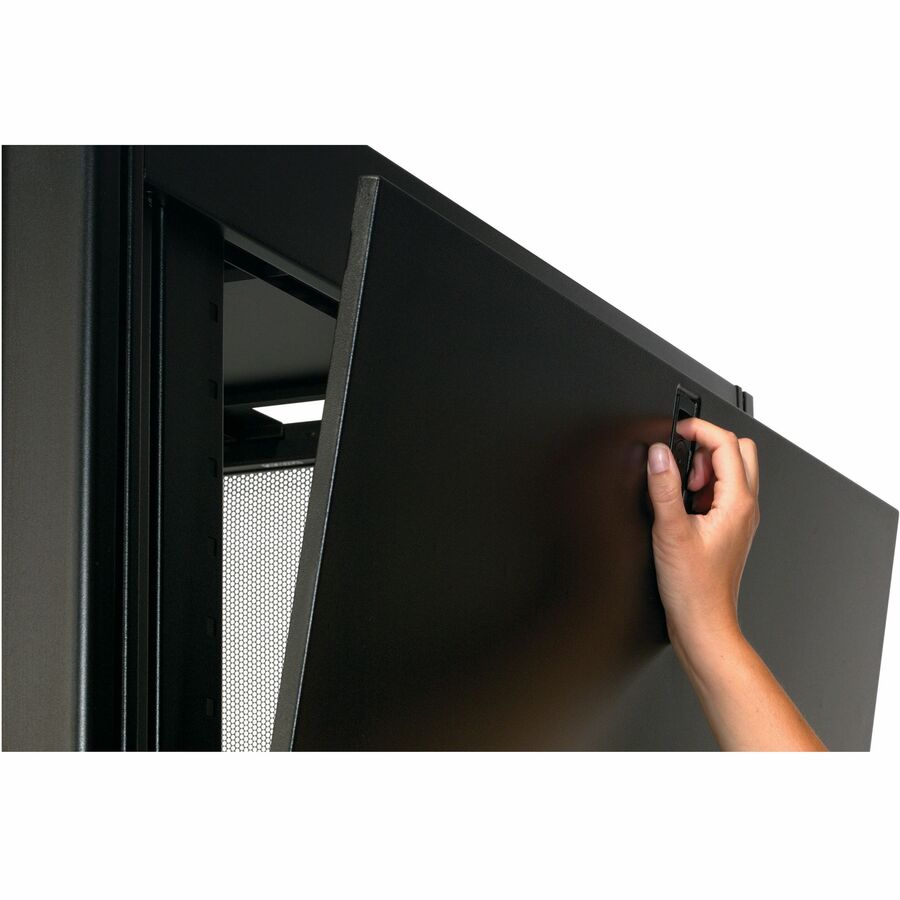

* Quick release side panels
* Removeable doors and side panels
* Reversible doors
* Rolls through a 2 meter doorway
* Ships fully assembled
* Split rear doors
* Supports 24 inch floor tile spacing
* Supports 600 mm floor tile spacing
* Tool-less mounting
* UBC Zone 4 stabilization provisions
* Ventilated Doors with Scalable Cooling Options
* Vertical Mounting Rails with square holes
