TRIPP LITE

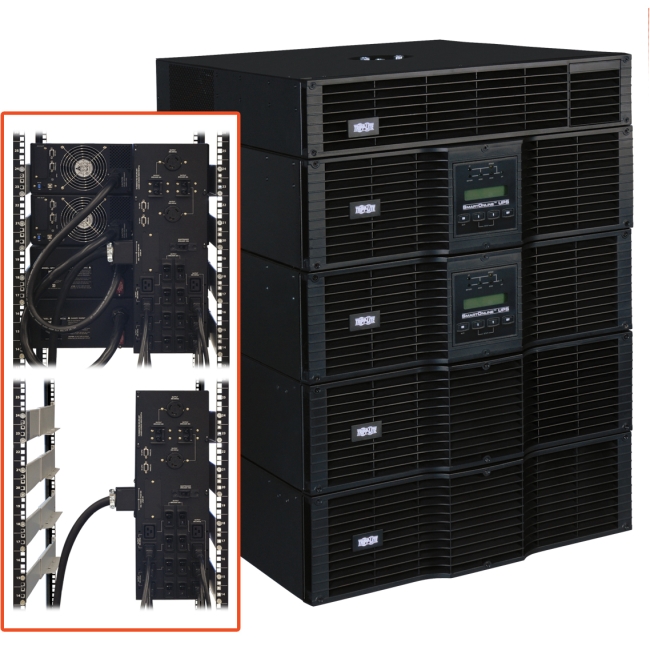

Tripp Lite SmartOnline EZ SU16KRT-1TF 16kVA Tower/Rack Mountable UPS
Mfg Part Number: SU16KRT-1TF , Item #: 1167283
Special Note: Jan 05, 2020
NCNR; If you do not have loading facility, please contact our CST for special handling service.
, PO and Wire.
Tripp Lite SU16KRT-1TF 16,000VA / 16kVA / 14,400 watt online, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 14U rack/tower configuration. This system delivers complete N+1 redundancy when used at loads up to 8kVA, and non-redundant operation at loads between 8 and 16kVA. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included parallel PDU with manual bypass switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined operating modes. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SU16KRT-1TF |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite by Eaton |
| Product Line | SmartOnline |
| Product Series | EZ |
| Product Model | SU16KRT-1TF |
| Product Name | SmartOnline EZ SU16KRT-1TF 16kVA Tower/Rack Mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | NEMA L6-30R |
| Receptacle Type | NEMA 5-15R |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 8 x NEMA 5-15/20R |
| Receptacle Detail | 8 x IEC 60320 C19 |
| Receptacle Detail | 4 x NEMA 5-15R |
| Receptacle Detail | 2 x NEMA L6-30R |
| Transfer Time | 0 ns |
| Overload Protection | Yes |
| Power Description | |
| Load Capacity (VA) | 16 kVA |
| Input Voltage | 220 V AC |
| Output Voltage | 208 V AC |
| Output Voltage | 120 V AC |
| Output Voltage | 240 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Input Current | 88.40 A |
| Management | |
| Network Management | SNMP Manageable |
| Bypass Switch | Automatic |
| Bypass Switch | Manual |
| Emergency Power OFF | Yes |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| Modular Slots | Communications Slot |
| Battery Information | |
| Backup/Run Time (Full Load) | 5.50 Minute |
| Backup/Run Time (Half Load) | 13.50 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Physical Characteristics | |
| Form Factor | Rack/Tower |
| Rack Height | 14U |
| Height | 5.1" |
| Width | 17.5" |
| Depth | 26" |
| Weight (Approximate) | 43 lb |
| Miscellaneous | |
| Package Contents |
|
| Additional Information | Output Receptacles: 8 x C19 |
| Software Included | PowerAlert Software |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
