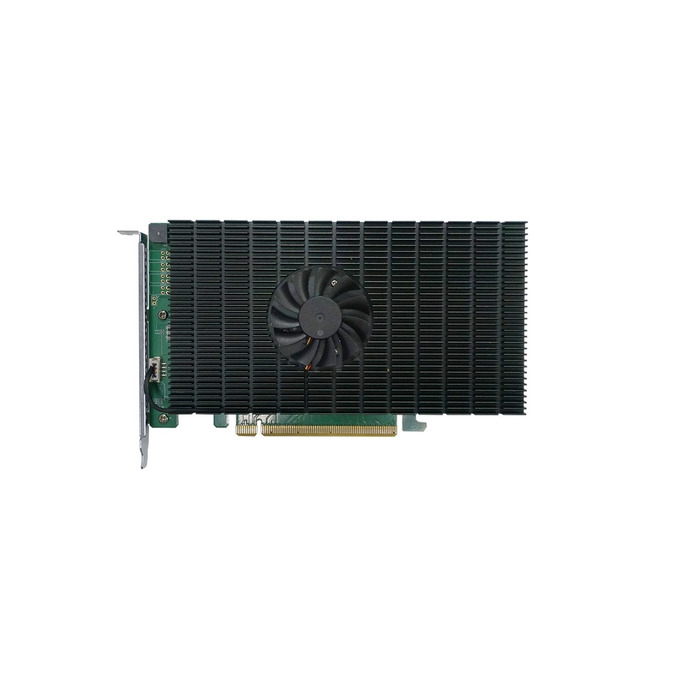

The Ultimate PCIe Gen3 NVMe Booting Solution | Introducing the SSD7105 - The Ultimate Gen3 NVMe Booting Solution

Powered by our next generation NVMe hardware architecture, industry-proven RAID stack, and comprehensive boot capability, the SSD7105 delivers unbeatable performance and versatility, all packaged in a compact device no larger than your average video adapter. The SSD7105 is a direct replacement for the SSD7103 and was designed for easy integration into any Intel or AMD based desktop, server or workstation PC with a free, dedicated PCIe 3.0/4.0 x16 slot, and can deliver up to 14,000MB/s of transfer performance and support up to 4 individual boot volumes, in single-drive or RAID modes.

Comprehensive OS Support

Comprehensive device driver support is available for Windows 11 and 10, Server 2022 and 2019, and Linux Distributions such as RHEL, Debian, Ubuntu, Fedora, Proxmox and Xenserver. In addition, we offer Binary driver development services, and Open- Source driver packages for other or non- standard distributions.

Advanced Bootable NVMe RAID Technology

The SSD7105 NVME RAID controller can be used to configure bootable RAID or single NVMe SSD configurations for Windows and Linux systems. Optional UEFI downloads and complete installation guides are available for each supported platform.

RAID 10 (Security & Speed) - RAID 10 requires a minimum of 4 NVMe SSD's and is comprised of a stripe between two RAID 1 arrays. RAID 10 capable of delivering read performance on par with RAID 0, and is superior to RAID 5 for NVMe applications. Unlike RAID 5, RAID 10 doesn't necessitate additional parity related write operations, which reduce the TBW life span of NVMe SSD's.

RAID 0 (Speed) - Also known as a "stripe" array, this mode delivers Maximum Performance, and requires a minimum of 2 NVMe SSD's.

RAID 1 (Security) - This mode creates a hidden duplicate of the target SSD, and requires 2 NVMe SSD's to configure. RAID 1 is ideal for bootable volumes.

Expanded Compatibility

The third generation SSD7105 was designed for easy integration into industry standard motherboard platforms using off- the-shelf M.2 SSD's. It has been extensively tested with a wide range of commercially available M.2 NVMe drives from all major manufacturers, including MLC, TLC & QLC models, in a variety of hardware environments across both Windows, Linux and Mac platforms.

Redesigned Ultra-Efficient, Low-Noise Hyper-Cooling Solution

The SSD7105 incorporates advancements first introduced by our PCIe Gen4 solutions specifically, Highpoint's Low-Noise Hyper- Cooling solution which ensures your NVMe SSDs consistently operate within recommended temperature thresholds, even under sustained heavy I/O, by combining a full-length anodized aluminum heat sink with an ultra-durable, near-silent fan, and high- conductivity thermal pad. This innovative, ultra- efficient cooling system rapidly transfers waste heat away from critical NVMe and controller componentry, without introducing unwanted distraction into your work environment.

Comprehensive NVMe RAID Management Suite

The WebGUI is an intuitive graphical interface that works with any web browser, and is ideal for users of any skill level, while the CLI (command line interface) is a powerful, text-only interface designed for advanced users & professional administrators.

Both interfaces share universal layouts across all major operating systems, can be administered locally or remotely via an internet connection, and allow users to configure a real-time event log with email notification.

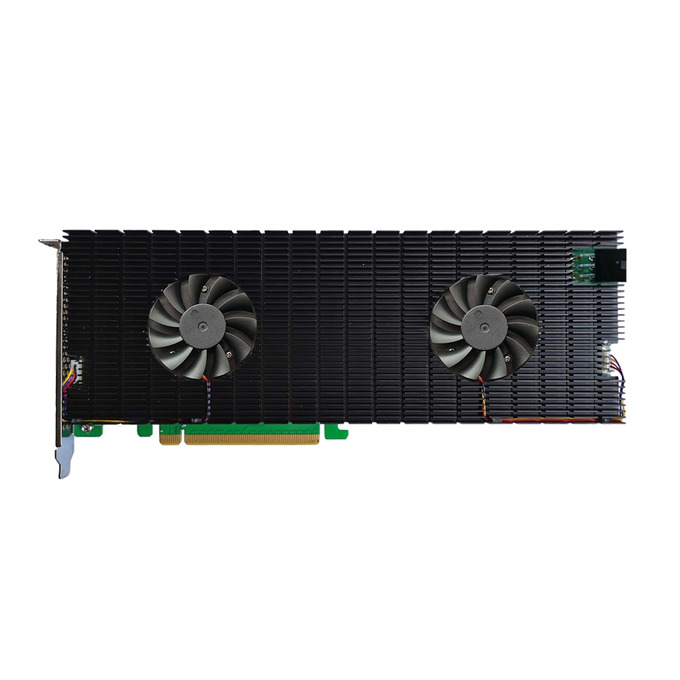

HighPoint 7500 Series PCIe Gen4 M.2 NVMe RAID Controllers

Key Features

• Dedicated PCIe 4.0 x16 direct to CPU NVMe RAID Solutions
• Truly Platform Independent
• RAID 0, 1, 1/0 and single-disk
• 4 and 8 M.2 NVMe PCIe 4.0 SSD's
• PCIe Gen 3 Compatible
• Up to 32TB capacity per controller
• Low-Noise Hyper-Cooling Solution
• Integrated SSD TBW and temperature monitoring capability
• SSD7505: Bootable RAID Support for Windows and Linux

Product Information

• Linux Updates
• The World's Fastest 4-Port NVMe M.2 RAID Controller (Video)

Truly Independent Cutting-Edge PCIe Gen4 x16 NVMe RAID Storage Performance for AMD Platforms

HighPoint's 7500 Series combine dedicated, cutting edge PCIe Gen4 x16 host connectivity with our industry proven RAID technology to deliver unbeatable storage performance.

The dedicated PCIe 4.0 x16 host interface enables each NVMe SSD to interface directly with the system CPU to ensure maximum transfer performance and near instant response time.

Truly Independent, Stand-Alone NVMe RAID Solution for both Intel & AMD Platforms

Unlike most PCIe Gen4 NVMe storage devices in today's marketplace, which are tied to a specific hardware platform or brand of SSD or motherboard, HighPoint SSD7500 series controllers are truly independent NVMe RAID solutions.

SSD7500 series controllers do not require motherboard platforms with Bifurcation support, or any specialized software released by SSD manufactures; any AMD-based system with a dedicated PCIe 4.0 x16 slot can now take full advantage of the industry's fastest storage solution. In addition, SSD7500 series controllers are fully backwards compatible with Intel PCIe 3.0 platforms, enabling customers to take full advantage of advanced Gen4 storage media without migrating to a new computing environment.

Comprehensive NVMe RAID Technology

RAID 1/0 (Security & Speed) - Unique to HighPoint NVMe RAID solutions, RAID 1/0 (also known as RAID 10) requires a minimum of 4 NVMe SSD's - it will mirror the data of one stripe array to a second, hidden stripe array for security. RAID 1/0 is capable of delivering read performance on par with RAID 0, and is superior to RAID 5 for NVMe applications. Unlike RAID 5, RAID 1/0 doesn't necessitate additional parity related write operations, which reduce the TBW life span of NVMe SSD's.

RAID 0 (Speed) - Also known as a "stripe" array, this mode delivers Maximum Performance, and requires a minimum of 2 NVMe SSD's.

RAID 1 (Security) - This mode creates a hidden duplicate of the target SSD, and requires 2 NVMe SSD's to configure. RAID 1 is ideal for bootable volumes.

SSD7505: Bootable RAID Support for Windows and Linux

The SSD7505 can be used to configure bootable RAID or single NVMe SSD configurations for Windows and Linux systems. Optional UEFI downloads and complete installation guides are available for each supported platform.
