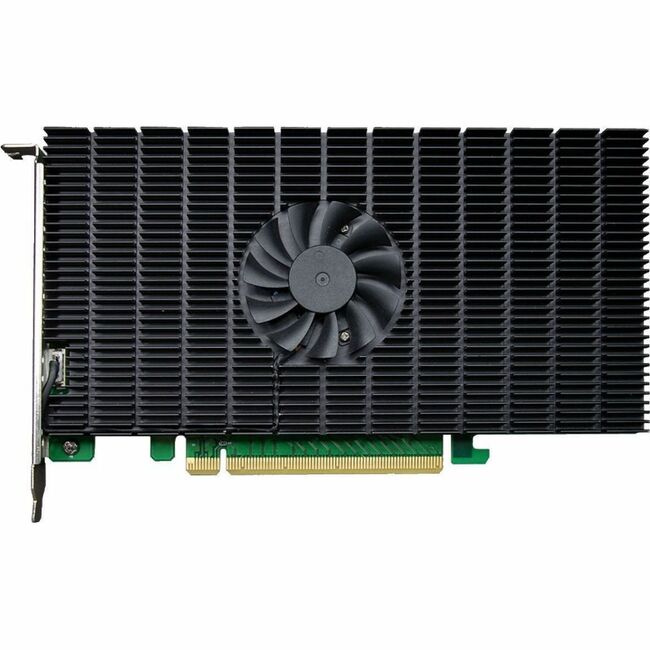

HIGHPOINT SSD7105 PCIE 3.0 X16 4-PORT M.2 NVME RAID CONTROLLER

The Ultimate PCIe Gen3 NVMe Booting Solution | Introducing the SSD7105 - The Ultimate Gen3 NVMe Booting Solution

Powered by our next generation NVMe hardware architecture, industry-proven RAID stack, and comprehensive boot capability, the SSD7105 delivers unbeatable performance and versatility, all packaged in a compact device no larger than your average video adapter. The SSD7105 is a direct replacement for the SSD7103 and was designed for easy integration into any Intel or AMD based desktop, server or workstation PC with a free, dedicated PCIe 3.0/4.0 x16 slot, and can deliver up to 14,000MB/s of transfer performance and support up to 4 individual boot volumes, in single-drive or RAID modes.

Comprehensive OS Support

Comprehensive device driver support is available for Windows 11 and 10, Server 2022 and 2019, and Linux Distributions such as RHEL, Debian, Ubuntu, Fedora, Proxmox and Xenserver. In addition, we offer Binary driver development services, and Open- Source driver packages for other or non- standard distributions.

Advanced Bootable NVMe RAID Technology

The SSD7105 NVME RAID controller can be used to configure bootable RAID or single NVMe SSD configurations for Windows and Linux systems. Optional UEFI downloads and complete installation guides are available for each supported platform.

RAID 10 (Security & Speed) - RAID 10 requires a minimum of 4 NVMe SSD's and is comprised of a stripe between two RAID 1 arrays. RAID 10 capable of delivering read performance on par with RAID 0, and is superior to RAID 5 for NVMe applications. Unlike RAID 5, RAID 10 doesn't necessitate additional parity related write operations, which reduce the TBW life span of NVMe SSD's.

RAID 0 (Speed) - Also known as a "stripe" array, this mode delivers Maximum Performance, and requires a minimum of 2 NVMe SSD's.

RAID 1 (Security) - This mode creates a hidden duplicate of the target SSD, and requires 2 NVMe SSD's to configure. RAID 1 is ideal for bootable volumes.

Expanded Compatibility

The third generation SSD7105 was designed for easy integration into industry standard motherboard platforms using off- the-shelf M.2 SSD's. It has been extensively tested with a wide range of commercially available M.2 NVMe drives from all major manufacturers, including MLC, TLC & QLC models, in a variety of hardware environments across both Windows, Linux and Mac platforms.

Redesigned Ultra-Efficient, Low-Noise Hyper-Cooling Solution

The SSD7105 incorporates advancements first introduced by our PCIe Gen4 solutions specifically, Highpoint's Low-Noise Hyper- Cooling solution which ensures your NVMe SSDs consistently operate within recommended temperature thresholds, even under sustained heavy I/O, by combining a full-length anodized aluminum heat sink with an ultra-durable, near-silent fan, and high- conductivity thermal pad. This innovative, ultra- efficient cooling system rapidly transfers waste heat away from critical NVMe and controller componentry, without introducing unwanted distraction into your work environment.

Comprehensive NVMe RAID Management Suite

The WebGUI is an intuitive graphical interface that works with any web browser, and is ideal for users of any skill level, while the CLI (command line interface) is a powerful, text-only interface designed for advanced users & professional administrators.

Both interfaces share universal layouts across all major operating systems, can be administered locally or remotely via an internet connection, and allow users to configure a real-time event log with email notification.
