Athena Power Athena AP-P4ATX90FEP ATX12V Power Supply
Mfg Part Number: AP-P4ATX90FEP , Item #: 958613
Tariff Surcharge (10%): $13.08
, PO and Wire.

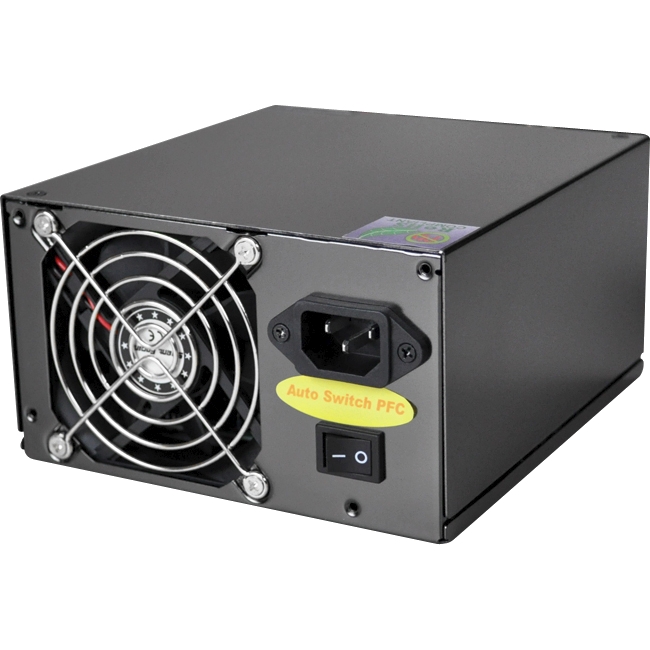

The Ultimate 900(AP-P4ATX90FEP) high performance AUTO switching power supply supports the latest motherboard connectors of 20, 24, 8, and 4 pins. Dual EPS-12V 8pin support Intel Skulltrail platform systems. It sets a new standard in server and industrial power supply. In addition, AP-P4ATX90FEP comes with 4 PCI-Express 6pin + 2pin connector (for Multi-GPU graphic card) to enable SLI and Cross-Fire application and SATA power connectors for the latest storage interface. The Ultimate 900 is the ideal power supply for server and high-end gaming workstations. Dual Fans with smart temperature control cools down the power for better performance. This power supply supports Intel® Skulltrail and Core i7 platform systems.
Multiple Support Function
Supporting ATX V2.3, EPS-12V Xeon, and i7 motherboards it also includes 4x PCI-E 6-pin connectors for advanced graphics cards running in quad SLI or Crossfire configuration. This PSU can be used for mini-servers, server assemblies, rackmount servers, and desktops.
| General Information | |
| Manufacturer | Athena Computer Power Corporation |
| Manufacturer Part Number | APP4ATX90FEP |
| Manufacturer Website Address | http://www.athenapower.com |
| Brand Name | Athena |
| Product Model | AP-P4ATX90FEP |
| Product Name | AP-P4ATX90FEP ATX12V Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Specification Compliance | ATX12V/EPS12V |
| Power Factor Correction (PFC) | Active |
| Number of Fans | 2 |
| Protection Type | Over Voltage |
| ATI CrossFire Supported | Yes |
| NVIDIA SLI Supported | Yes |
| Reliability | |
| MTBF | 100000 Hour |
| Power Description | |
| Number of +12V Rails | 4 |
| Input Voltage Type | AC |
| Input Voltage | 110 V AC |
| Input Voltage | 220 V AC |
| Input Voltage Range | 88 V AC - 264 V AC |
| Output Voltage | 5 V |
| Output Voltage | -12 V DC |
| Output Voltage | 12 V DC |
| Output Voltage | 5 V DC |
| Output Voltage | 3.3 V DC |
| Output Voltage Detail | 12 V DC @ 15 A |
| Output Voltage Detail | 5 V @ 4 A |
| Output Voltage Detail | 5 V DC @ 26 A |
| Output Voltage Detail | -12 V DC @ 800 mA |
| Output Voltage Detail | 3.3 V DC @ 26 A |
| Output Current | 15 A |
| Output Current | 26 A |
| Output Current | 4 A |
| Output Current | 800 mA |
| Output Power | 900 W |
| Interfaces/Ports | |
| Plug/Connector | On/Off Switch |
| Receptacles | 1 x 8-pin EPS12V Motherboard |
| Receptacles | 8 x 15-pin Serial ATA |
| Receptacles | 1 x 4-pin SP4 Floppy Drive |
| Receptacles | 1 x 20+4pin ATX Motherboard |
| Receptacles | 2 x 6-pin PCI-E |
| Receptacles | 1 x 4-pin ATX12V Motherboard |
| Receptacles | 2 x 6+2pin PCI-E |
| Receptacles | 4 x 4-pin LP4 Peripheral Device |
| Receptacles | 1 x 4+4pin ATX12V Motherboard |
| Physical Characteristics | |
| Form Factor | Internal |
| Height | 3.3" |
| Width | 5.8" |
| Depth | 6.3" |
| Weight (Approximate) | 6 lb |
| Miscellaneous | |
| Compatibility |
|
| Certifications & Standards |
|
| Warranty | |
| Limited Warranty | 3 Year |
