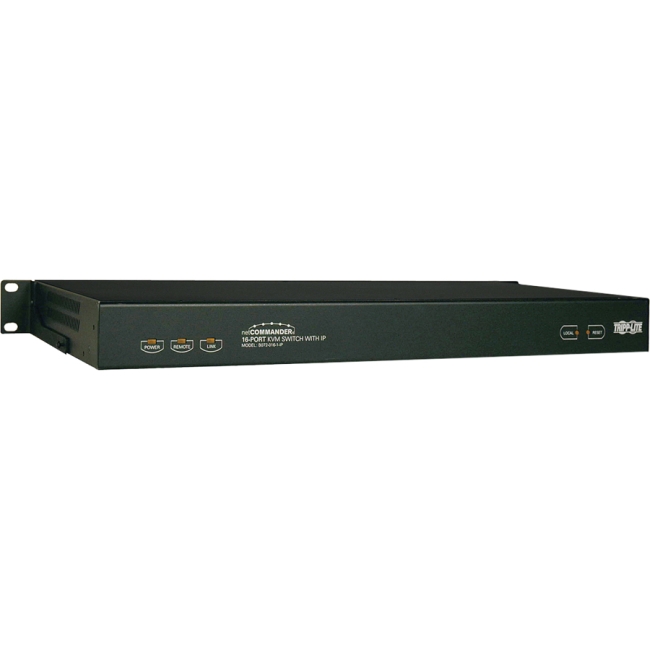

Tripp Lite B072-016-1-IP 16-Port NetCommander Cat5 KVM Switch w/ IP TAA Compliant

Tripp Lite's B072-016-1-IP KVM Switch is the optimal solution for controlling up to 16 computers/servers locally, from across the room, down the street or around the globe on a network or the Internet.

This KVM switch can be accessed and controlled remotely, so there's no need to travel to the server room or network closet. A Java-based application allows access via web browser from any secure IP connection; a non-browser client that can bypass browser-related Java Security prompts is available.

The B072-016-1-IP uses inexpensive, user-supplied Cat5e/6/6a cabling with Server Interface Units (sold separately) so you can connect computers/servers located up to 100 ft. away from the switch. This switch features dual Ethernet ports; if one fails, the other takes over, keeping remote access uninterrupted. Users can switch easily between the 16 ports using an on-screen display (OSD), hotkey commands or a remote toolbar. Multi-level password protection prohibits unauthorized users from accessing connected computers, and a local user and a remote user can each log on and access different ports simultaneously.

Two serial ports allow control of serial-manageable devices such as IP PDUs, firewalls and routers; individual ports can be assigned to an IP PDU port to power on/off the server connected to that port. This KVM switch is compatible with Windows and Linux operating systems, and provides remote access using a Windows computer. It supports VGA video resolutions up to 1920 x 1080 @ 60 Hz. Heavy-duty steel housing stands up to frequent use.

Virtual Media allows an .iso file to be mounted to a target server and accessed as if it were stored directly on it. Virtual Media data transfer rates up to 12Mbps are supported when using a B078-101-USB2 Server Interface Unit. Other features include RADIUS and LDAP/S authentication, system-sent SNMP messaging and an event log that tracks logins, reboots and network setting changes.

Free NetCommander-AXS Management Software is available to access and control all of your Tripp Lite NetCommander IP KVM switches (B070 and B072 series). From a single interface, you can access server ports on any of your KVM switches, power cycle or power on/off outlets of IP PDUs and manage KVM settings. This software can be downloaded free of charge from the model support page for the B072-016-1-IP.

Features

Saves Space and Money

• Mounts in a standard 19 in. rack
• Inexpensive Cat5e/6/6a cabling lets you locate servers up to 100 ft. from the switch
• Use a Server Interface Unit, B078-101-USB-1 (for USB) or B078-101-PS2 (for PS/2) with each server to be connected with Cat5 cable; use a B078-101-USB2 to support Virtual Media data transfer rates up to 12Mbps
• To convert DisplayPort or HDMI computers to VGA, use Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.

IP Remote Access for Fewer Trips to the Server Room

• Control this KVM switch over IP: remote access means there's no need to travel to the server room or network closet
• Java-based application allows Windows computers to control a target server via web browser from any location over a secured IP connection
• A non-browser client is available that allows Windows computers to remotely access the KVM without the need for a browser and without the need to install Java
• 1 local + 1 remote user can access different ports concurrently; up to 5 users can share a single remote session
• Supports both IPv4 and IPv6

General Information
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	B072-016-1-IP
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	NetCommander
Product Model	B072-016-1-IP
Product Name	16-Port Cat5 1+1 User 1U Rack-Mount VGA USB KVM Switch with IP Remote Access
Product Type	KVM Switchbox
Technical Information
KVM Technology	Digital
Number of Computers Supported	16
Number of Local Users Supported	1
Number of Remote Users Supported	1
Maximum Operating Distance	100 ft
Video
Graphic Mode	UXGA
Maximum Video Resolution	1920 x 1200
Interfaces/Ports
Network (RJ-45)	Yes
USB	Yes
VGA	Yes
Number of Network (RJ-45) Ports	20
Number of USB Ports	3
Number of VGA Ports	1
Power Description
Input Voltage Range	120V AC to 230V AC
Physical Characteristics
Form Factor	Rack-mountable
Rack Height	1U
Height	1.8"
Width	17"
Depth	9"
Weight (Approximate)	4.70 lb
Miscellaneous
Package Contents	NetCommander B072-016-1-IP 16-Port KVM Over IP Switch 16-Port NetCommander 1U Rackmount Cat5 KVM over IP Switch Rackmount Bracket kit 6ft Power Cord 6ft Serial Cable
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin	Taiwan
TAA Compliant	Yes
Warranty
Limited Warranty	3 Year

General Information
Product	-
Type	-
Number of Channels / Ports	-
Maximum Data Rate	-
Operating Supply Voltage	-
Maximum Operating Temperature	-

Tripp Lite's 16-Port NetCommander 1U Rackmount Cat5 KVM over IP Switch is the next generation of the cost-effective, feature-rich KVM switches. Its sleek, 1U design and compact size features RJ45 connection ports that utilize inexpensive Cat5 patch cables, reducing the amount of cable clutter normally found with traditional KVM cabling, as well as the ability to log in from anywhere via the Internet. Easily switch between CPU's with hot key commands, the built-in On-Screen Display (OSD) menu or the remote console toolbar. Cascadability allows connection to up to 256 computers. Compatible with PS/2 and USB computers, VGA, SVGA or XGA monitors.

Device Type	KVM switch - cascadable
Enclosure Type	Rack-mountable - 1U
Width	17 in
Depth	9 in
Height	1.7 in
Networking
Ports Qty	16
Remote Management Protocol	HTTPS
Features	On-Screen Display, 128-bit encryption, firmware upgradable
KVM
KVM Local Users Qty	1 local user
Server Connection Via Twisted Pair	CAT5
Max Resolution	1600 x 1200 @ 75 Hz
Expansion / Connectivity
Interfaces	16 x keyboard / video / mouse (KVM) - RJ-45 female 1 x serial - RJ-45 female 1 x management - RS-232 - RJ-11 female
Connections	1 x keyboard - generic - 6 pin mini-DIN (PS/2 style) female 1 x mouse - generic - 6 pin mini-DIN (PS/2 style) female 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) female 1 x network - Ethernet 10Base-T/100Base-TX - RJ-45 female
Miscellaneous
Cables Included	1 x serial cable - 6 ft
Rack Mounting Kit	Included
Encryption Algorithm	SSL
Power
Power Device	Power supply - internal
Software / System Requirements
OS Required	Microsoft DOS, UNIX, HP-UX, Linux, Microsoft Windows
Manufacturer Warranty
Service & Support	1 year warranty
Service & Support Details	Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	0 - 80%
