Overview:

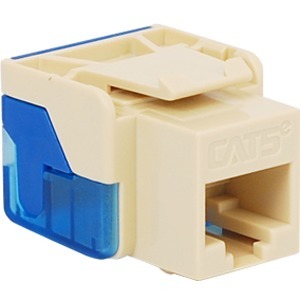

Category 5e EZ® Category 5e modular jacks, RJ-45 keystone jack, is 8-position 8-conductor (8P8C) is engineered to provide superior performance and reliability, supporting up to Gigabit Ethernet applications. The advanced design provides optimum signal quality with up to 10dB headroom providing maximum bandwidth for today's application. Designed to be extremely easy to terminate, the Category 5e EZ® modular jacks simplifies installation and improves overall installation time.
Feature:
Specification:
1. CAT 5e Module:
A. Electrical:
Current rating: 1.5 amps
Insulation resistance: 500 mohms min.
Contact resistance: 20 mohms max.
DC resistance: 0.1 ohm max.
Transmission performance exceeds Category 5e connecting hardware requirements specified in ANSI/TIA-568-C.2 when used with compatible horizontal cable
B. Mechanical:
Plug insertion life: 750 cycles min.
Plug and jack contact force: 100 grams min. using FCC approved plug
Plug retention force: 30 lbs min.
Temperature: -40° to 150° F (-40° to 68° C)
C. Physicals:
Housing: ABS, UL 94V-0
Jack wiring: Phosphor Bronze alloy plated with 50 micro inches of gold over 70~100 micro inches of nickel
Connector: insulation displacement connector (IDC); accepts 22~24 AWG solid wire
D: Colors: XX: AL-Almond, BK-Black, BL-Blue, GN-Green, GY-Gray, IV-Ivory, OR-Orange, PR-Purple, RD-Red, WH-White, YL-Yellow
2. Termination cap:
A. Material: PC, UL 94V-0
B.Color: Clear Blue
General Information | |
Manufacturer | ICC |
Manufacturer Part Number | IC1078E5AL |
Manufacturer Website Address | http://www.icc.com |
Brand Name | ICC |
Product Model | IC1078E5AL |
Product Name | Cat 5e, EZ, Modular Connector, Almond |
Product Type | Network Connector |
Technical Information | |
Connector Type | RJ-45 Network - Female |
Connector Details | RJ-45 Network Female |
Contact Plating | Gold |
Contact Plating | Phosphor Bronze |
Physical Characteristics | |
Product Color | Almond |
Product Material | Acrylonitrile Butadiene Styrene (ABS) |
Miscellaneous | |
Environmentally Friendly | Yes |
