Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption.
The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom-programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip
Main Specification
General Information |
Manufacturer |
Tripp Lite by Eaton |
Manufacturer Part Number |
PDUMH30HVNET |
Manufacturer Website Address |
https://tripplite.eaton.com/ |
Brand Name |
Tripp Lite by Eaton |
Product Model |
PDUMH30HVNET |
Product Name |
PDUMH30HVNET PDU Switched 208V - 240V 30A 16 Outlet |
Product Type |
PDU |
Technical Information |
PDU Type |
Switched |
Plug/Connector Type |
NEMA L6-30P |
Plug/Connector Detail |
1 x NEMA L6-30P |
Receptacle Type |
IEC 60320 C13 |
Receptacle Detail |
16 x IEC 60320 C13 |
Protection Type |
Overload Protection |
Power Description |
Input Voltage |
230 V AC |
Input Voltage Range |
208 V AC - 240 V AC |
Output Voltage |
208 V AC |
Output Voltage |
240 V AC |
Management |
Management |
Protocols: - HTTP
- HTTPS
- PowerAlert Network Management System
- SMTP
- SNMPv1
- SNMPv2
- Telnet
- FTP
- DHCP
- BOOTP
- NTP
|
Physical Characteristics |
Mount Type |
Rack-mountable |
Rack Height |
2U |
Height |
3.5" |
Width |
17.5" |
Depth |
12.5" |
Weight (Approximate) |
13.80 lb |
Miscellaneous |
Package Contents |
- PDUMH30HVNET PDU Switched 208V - 240V 30A 16 Outlet
- Rackmount PDU
- 4 post compatible mounting brackets
|
Environmentally Friendly |
Yes |
Country of Origin |
Taiwan |
TAA Compliant |
Yes |
Warranty |
Limited Warranty |
2 Year |
General Information |
Product |
-
|
Number of Outlets |
-
|
Surge Energy Rating |
-
|
Data Line Protection |
-
|
Cord Length |
-
|
Mounting Style |
-
|
Output Voltage |
-
|
Current Rating |
-
|
Tripp Lite Switched, Metered Rack Power Distribution Units enable a
variety of advanced network control and monitoring functions by giving
IT Managers the ability to turn on, turn off, recycle or lock-out power
to each individual receptacle and remotely monitor PDU power
consumption and in-rack environmental conditions. Switched PDU systems
can be accessed, configured and controlled through secure web, SNMP or
Telnet Interface. Individually switched outlets can be controlled via a
built-in web/network interface, enabling remote reboot of unresponsive
network hardware. User defined power-up and power-down outlet sequences
ensure proper operation of interdependent IT systems and prevent
inrush-related overloads as devices are powered on. Programmable
load-shedding of less critical devices at user-defined intervals
extends UPS uptime in response to power failures. Unused PDU outlets
can be electronically locked-off to prevent powering of unauthorized
hardware. PDU power consumption (current) is displayed locally and can
be monitored via the web/network interface, with user-defined alarms to
warn of potential overloads before critical IT mains or branch breakers
trip. Optional ENVIROSENSE temperature / humidity probe enables remote
monitoring of in-rack environmental conditions and alarms for up to 3
user supplied contact-closure sensors. Support real-time monitoring,
notification and logging of all on-board reporting functions with
user-specified alarm thresholds and actions for each reported
condition. Switched PDU systems can be accessed, configured and

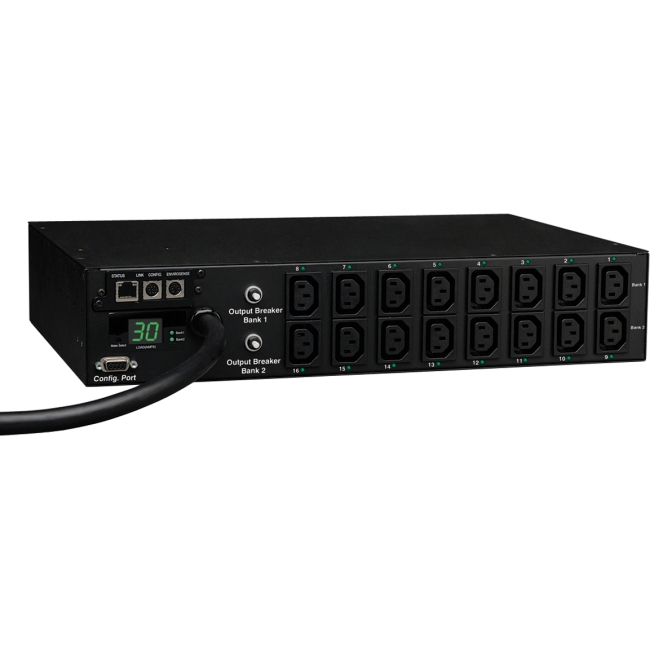

controlled through secure web, SNMP or Telnet Interface. PDUMH30HVNET
Switched, Metered, 2U rack PDU supports 30A maximum capacity at
208/240V (agency de-rated to 24 amps). Includes attached L6-30P input
plug and 16 C13 switched outlets arranged in two separately breakered 8
outlet banks. Visual and remote current monitoring tracks the current
for each 8 outlet bank separately, plus offers total power consumption
for all 16 outlets combined. Support 2U rack mount installation in 19
inch 4 post rack enclosures. 2POSTRMKITWM enables installation in 2
post relay racks. Included cord retention brackets keep vital network
equipment plugged in and continuously powered.
Device Type |
Power distribution unit -
rack-mountable |
Height (Rack
Units) |
2U |
Width |
17.5 in |
Depth |
12.5 in |
Height |
3.5 in |
Power Device |
Input Voltage |
AC 208/240 V |
Frequency
Required |
50/60 Hz |
Input
Connector(s) |
1 x power NEMA L6-30 |
Output Voltage |
AC 208/240 V ( 50/60 Hz ) |
Output
connector(s) |
16 x power IEC 320 EN 60320 C13 |
Max Electric
Current |
30 A |
Circuit
Protection |
Circuit breaker |
Networking |
Remote
Management Interface |
Ethernet 10/100 |
Remote
Management Protocol |
SNMP 1, SNMP 2, SNMP, Telnet, HTTP,
HTTPS |
Expansion / Connectivity |
Interfaces |
1 x management - Ethernet
10Base-T/100Base-TX |
Miscellaneous |
Cables Included |
1 x power cable - 10 ft |
Rack Mounting Kit |
Included |
Features |
Current meter, LED indicators |
Compliant
Standards |
FCC Class A certified, NOM, IEC
60950, RoHS |
Manufacturer Warranty |
Service &
Support |
2 years warranty |
Service &
Support Details |
Limited warranty - 2 years |
Environmental Parameters |
Min Operating
Temperature |
32 °F |
Max Operating
Temperature |
104 °F |
Humidity Range
Operating |
0 - 95% |
Dimensions & Weight (Shipping) |
Shipping Width |
44.5 in |
Shipping Depth |
31.7 in |
Shipping Height |
8 in |
