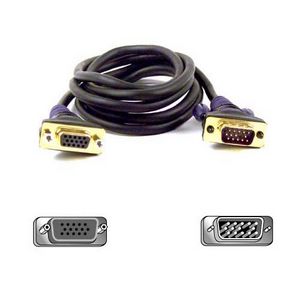

F2N025-06-GLD Belkin Gold Series VGA Monitor Extension Cable

"Oh come on, you can make it" you say, while the taut monitor cable stretches, as you try to plug it into your computer. Suddenly, your new monitor flies off the desk and into pieces. You should have used a Belkin Pro Series Monitor Extension Cable, and saved your monitor and yourself. Extends the length of an existing Super VGA monitor cable with high-density DB15 connectors. Featuring 24K gold plated corrosion-proof connectors for maximum conductivity.

General Information
Manufacturer	Belkin International, Inc
Manufacturer Part Number	F2N025-06-GLD
Manufacturer Website Address	http://www.belkin.com
Brand Name	Belkin
Product Series	Gold
Product Name	Gold Series VGA Monitor Extension Cable
Packaged Quantity	1
Package Type	Retail
Product Type	Video Cable
Technical Information
Cable Characteristic	Extension Cable
Cable Length	6 ft
Connector Type on First End	DB-15 - Male
Connector on First End Details	1 x 15-pin DB-15 - Male
Connector Type on Second End	DB-15 - Female
Connector on Second End Details	1 x 15-pin DB-15 - Female
Conductor	Copper
Device Supported	Monitor
Physical Characteristics
Product Color	Black
Jacket Material	Polyvinyl Chloride (PVC)
Weight (Approximate)	0.36 lb
Miscellaneous
Additional Information	Tactilite molded strain relief provides a 360-degree turning radius for true protection against damage to the conductors Oversized ergonomic thumbscrews make installation a breeze Ground indents provide excellent conductivity and retention with mating conductors Low capacitance impedance matched 28 AWG stranded tinned copper conductors are individually insulated in polypropylene to minimize cross talk, ensuring high-speed, error-free transmission NOTE: Will only work on monitors smaller than 17 inches
Compatibility	Monitor
Certifications & Standards	FCC EMI/RFI
Warranty
Limited Warranty	Lifetime

MODEL- F2N02506GLD            VENDOR- BELKIN COMPONENTS

FEATURES-  6 ft. Gold Series VGA Monitor Extension Cable
        Extends the length of an existing Super VGA monitor cable with high-
         density DB15 connectors. Featuring 24K gold plated corrosion-proof
         connectors for maximum conductivity.
        Tactilite molded strain relief provides a 360-degree turning radius
         for true protection against damage to the conductors.
        Flextec cable jacket is very durable and extremely flexible for use
         in tight areas.
        NOTE: Will only work on monitors smaller than 17 inches.
 * Tactilite overmold is a supple polymer designed to increase flexibility
   while maintaining durability.
 * 24K gold plated copper contacts provide maximum conductivity with no data
   loss.
 * Fastest data transfer for maximum performance.
 * Oversized ergonomic thumbscrews make installation a breeze.
 * Ground indents provide excellent conductivity and retention with mating
   conductors.
 * PVC premold encapsulates individual conductors to ensure electrical
   isolation and relieve stress.
 * Aluminum undermold shield helps to meet FCC requirements on EMI/RFI
   interference.
 * Low capacitance impedance matched 28 AWG stranded tinned copper
   conductors are individually insulated in polypropylene to minimize cross
   talk, ensuring high-speed, error-free transmission.
                     www.belkin.com
