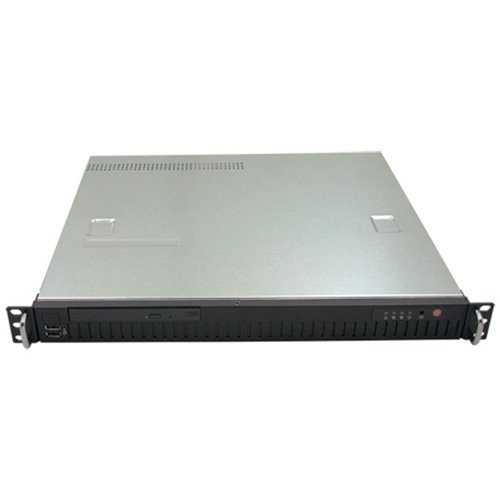

RAC1E-R02-R is an entry-level 1U appliance chassis with 15¨ depth for space-sensitive applications, such as Network & Security appliance, firewall, VPN, Telephony and military applications. Standard ATX size (9.6¨ x 12¨) motherboard can be populated into this appliance chassis. RAC1E-R01 is a cost-effective appliance chassis that provide lower TCO (total cost of ownership) to IT professionals for higher ROI.
General Information | |
Manufacturer | Advanced Industrial Computer, Inc |
Manufacturer Part Number | RAC-1E-25X-R02-R |
Manufacturer Website Address | http://www.aicipc.com |
Brand Name | AIC |
Product Model | RAC-1E-25X-R02-R |
Product Name | RAC-1E-25X-R02-R Chassis |
Product Type | Server Case |
Technical Information | |
Motherboard Supported | ATX |
Number of Fans Supported | 2 |
Bays | |
Number of External 5.25" Bays | 1 |
Number of Internal 3.5" Bays | 2 |
Number of Total Expansion Bays | 3 |
I/O Expansions | |
Number of Total Expansion Slots | 1 |
Interfaces/Ports | |
Total Number of USB Ports | 2 |
Power Description | |
Number of Power Supplies Supported | 1 |
Number of Power Supplies Installed | 1 |
Power Supply Wattage | 250 W |
Physical Characteristics | |
Compatible Rack Unit | 1U |
Form Factor | Rack-mountable |
Height | 1.8" |
Width | 19" |
Depth | 15" |
Weight (Approximate) | 15.40 lb |
Miscellaneous | |
Environmentally Friendly | Yes |
