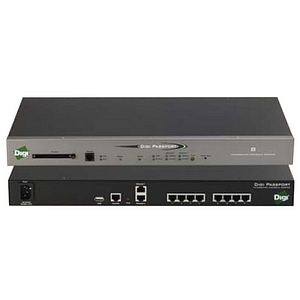

The latest entry in Digi's advanced console management line, the Digi Passport 8 provides secure remote access to the console ports of computer systems and network equipment. In addition to conventional serial console connections, the Digi Passport connects to the service processors of the leading server vendors, including Dell (DRAC), HP (iLO), IBM (IPMI), Rackable Systems (Phantom and Roamer) and Sun (ALOM and ILOM). It also provides SMASH extensions to each of these network-based access protocols.
General Information | |
Manufacturer | Digi International |
Manufacturer Part Number | 70002268 |
Manufacturer Website Address | http://www.digi.com |
Brand Name | Digi |
Product Line | Passport |
Product Name | Passport 8-Port Console Server with Modem |
Product Type | Device Server |
I/O Expansions | |
Number of Total Expansion Slots | 1 |
Network & Communication | |
Ethernet Technology | Fast Ethernet |
Interfaces/Ports | |
Network (RJ-45) | Yes |
Phone Line (RJ-11) | Yes |
Management Port | Yes |
Number of Network (RJ-45) Ports | 10 |
Physical Characteristics | |
Form Factor | Rack-mountable |
Height | 1.7" |
Width | 17.4" |
Depth | 8" |
Weight (Approximate) | 5.19 lb |
Miscellaneous | |
Package Contents |
|
Country of Origin | South Korea |
Warranty | |
Limited Warranty | 5 Year |
Device Type | Console server |
Width | 17.4 in |
Depth | 8 in |
Height | 1.7 in |
Localization | North America |
Networking | |
Form Factor | External |
Ports Qty | 8 |
Connectivity Technology | Wired |
Data Link Protocol | RS-232 |
Routing Protocol | RIP |
Remote Management Protocol | Telnet, SNMP 3, HTTP, HTTPS, IPMI 2.0 |
Features | Auto-sensing per device, Syslog support, manageable, IPv6 support, IP address filtering, firmware upgradable, RealPort technology |
Encryption Algorithm | SSL |
Authentication Method | Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP |
Compliant Standards | USB 2.0 |
Communications | |
Type | Modem (analog) - integrated |
Expansion / Connectivity | |
Expansion Slots Total (Free) | 1 ( 1 ) x PC Card |
Interfaces | 8 x serial - RS-232 - RJ-45 1 x management - console - RJ-45 2 x network - Ethernet 10Base-T/100Base-TX - RJ-45 1 x Hi-Speed USB - 4 pin USB Type A 1 x modem |
Miscellaneous | |
Rack Mounting Kit | Included |
Compliant Standards | FCC Class A certified, EN55022, UL 1950, EN55024, FCC Part 15, RoHS |
Power | |
Power Device | Power supply - internal |
Voltage Required | AC 120/230 V ( 50/60 Hz ) |
Power Consumption Operational | 40 Watt |
Power Provided | 15 Watt |
Software / System Requirements | |
OS Provided | Linux |
Manufacturer Warranty | |
Service & Support | 5 years warranty |
Service & Support Details | Limited warranty - 5 years |
Environmental Parameters | |
Min Operating Temperature | 41 °F |
Max Operating Temperature | 122 °F |
