HPE
HPE JL710A#B2C ARUBA 8360-24XF2C PRT2PWR3F2PS Bundle PDU
Mfg Part Number: JL710A#B2C , Item #: 5237731

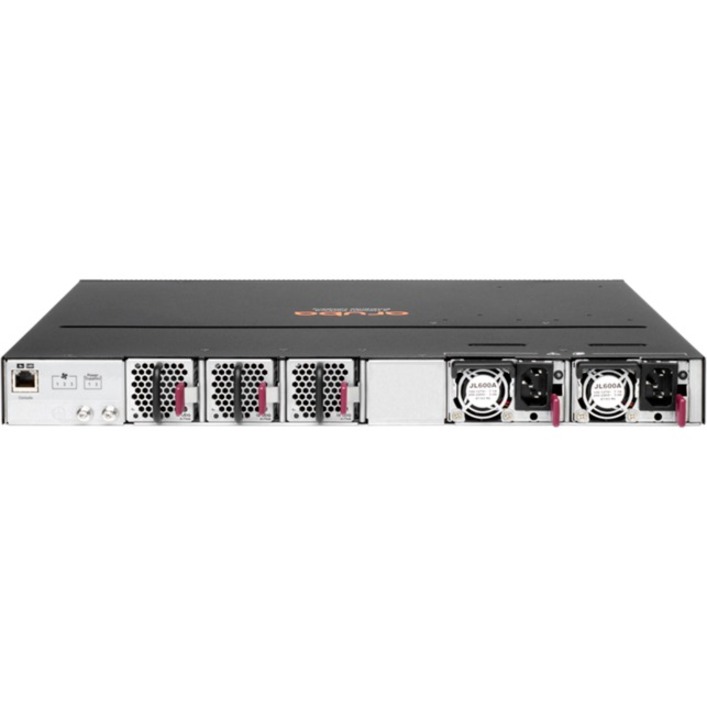

Image may not reflect the actual item.
Price: $27,840.72
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jan 26, 2026
No Sales Tax except these states
, PO and Wire.
Aruba CX 8360 Switch Series
High Performance Enterprise Campus and Data Center Switch
The Aruba CX 8360 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 2.4Tbps of capacity, with line-rate Gigabit Ethernet interfaces including 1Gbps, 10Gbps, 25Gbps, 40Gbps, and 100Gbps.
The 8360 series includes industry-leading line rate ports with 1/10/25GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/ QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 100GbE ports.
In addition, the 32 x 25G port 8360 models support lowdensity MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains.
High Performance Enterprise Campus and Data Center Switch
The Aruba CX 8360 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 2.4Tbps of capacity, with line-rate Gigabit Ethernet interfaces including 1Gbps, 10Gbps, 25Gbps, 40Gbps, and 100Gbps.
The 8360 series includes industry-leading line rate ports with 1/10/25GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/ QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 100GbE ports.
In addition, the 32 x 25G port 8360 models support lowdensity MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains.
Main Specification
| General Information | |
| Manufacturer | Hewlett Packard Enterprise |
| Manufacturer Part Number | JL710AB2C |
| Manufacturer Website Address | http://www.hpe.com |
| Brand Name | HPE |
| Product Series | CX 8360 |
| Product Model | CX 8360-24XF2C |
| Product Name | CX 8360 Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Uplink Port | Yes |
| Modular | Yes |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | 100 Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Network Technology | 100GBase-X |
| Network Technology | 10GBase-X |
| I/O Expansions | |
| Total Number of Expansion Slots | 26.0 |
| Expansion Slot Type | SFP+ |
| Expansion Slot Type | QSFP28 |
| Number of SFP+ Slots | 24 |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Frequency | 50 Hz |
| Frequency | 60 Hz |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Number of Power Supplies Supported | 2 |
| Power Consumption | 375 W |
| Physical Characteristics | |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Form Factor | Surface Mount |
| Height | 1.7" |
| Width | 17.4" |
| Depth | 16" |
| Miscellaneous | |
| TAA Compliant | Yes |
