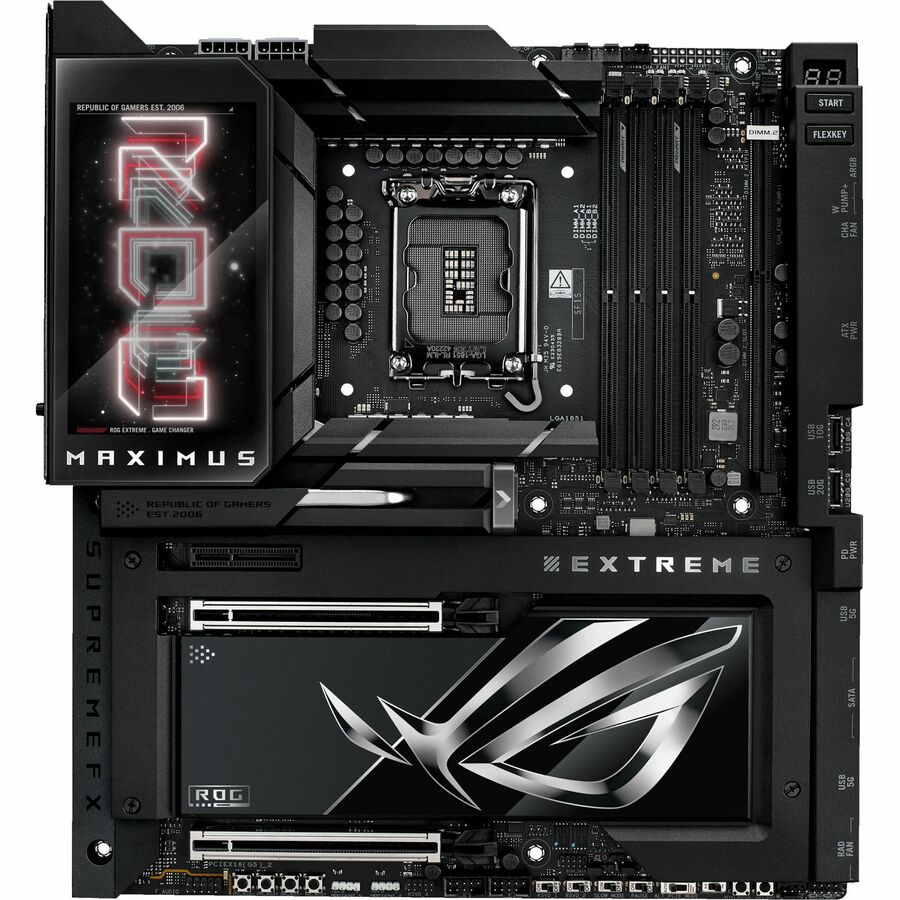

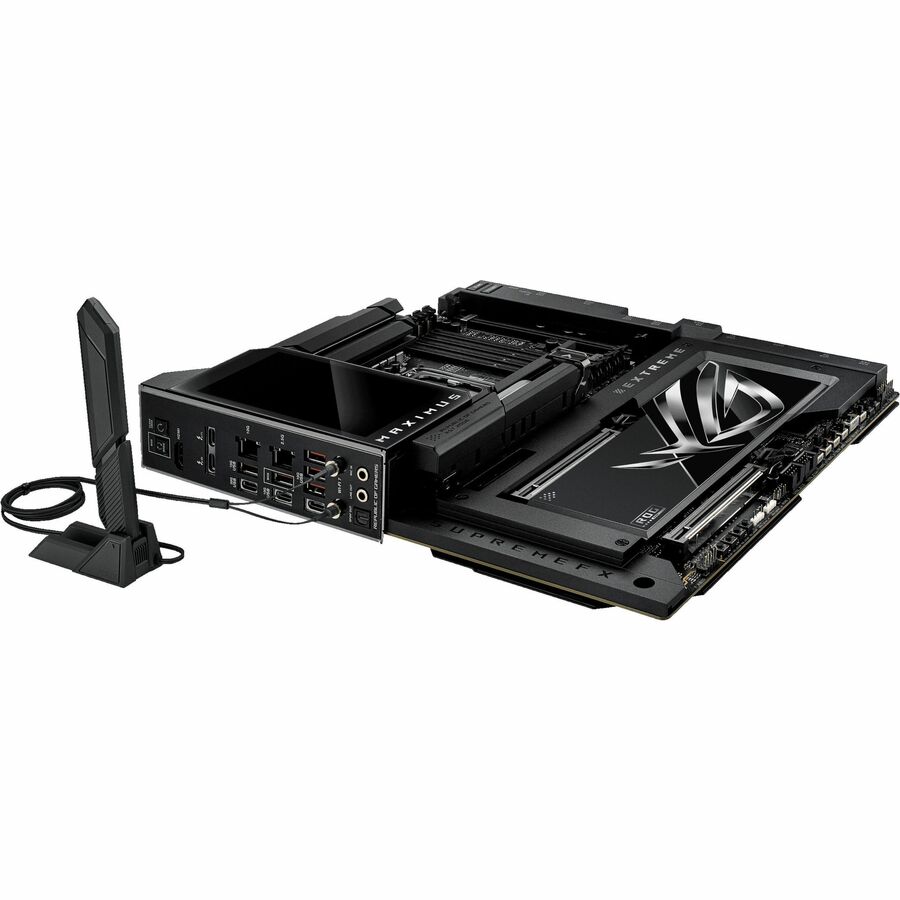

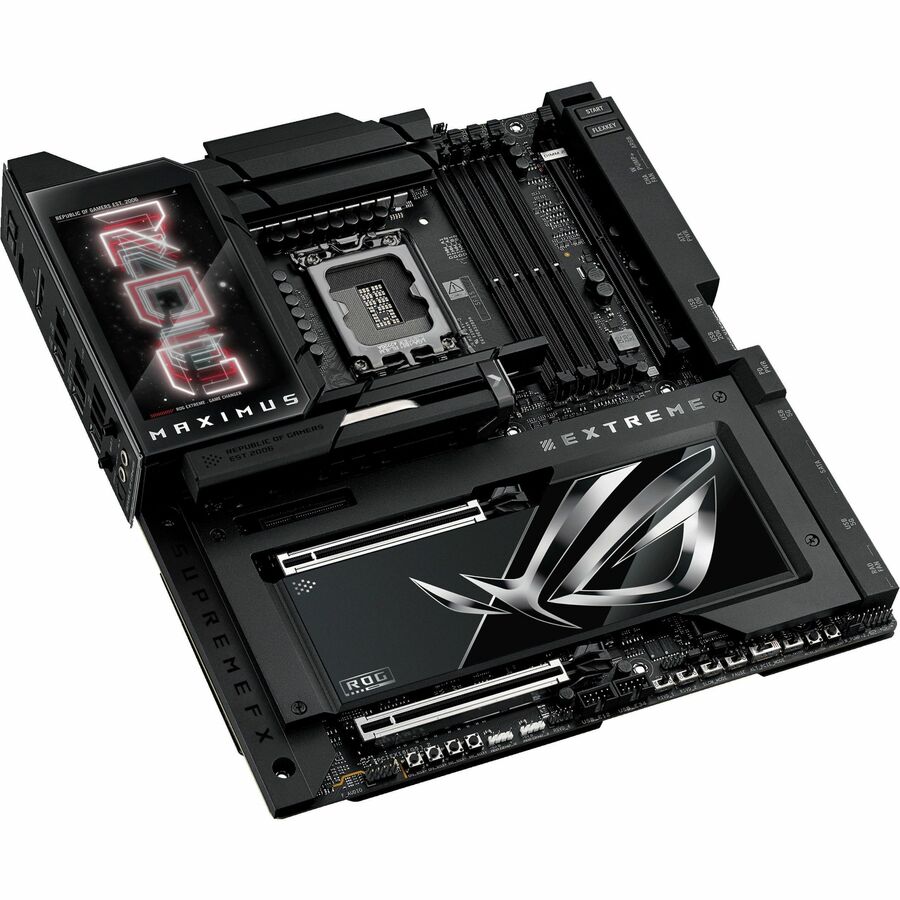

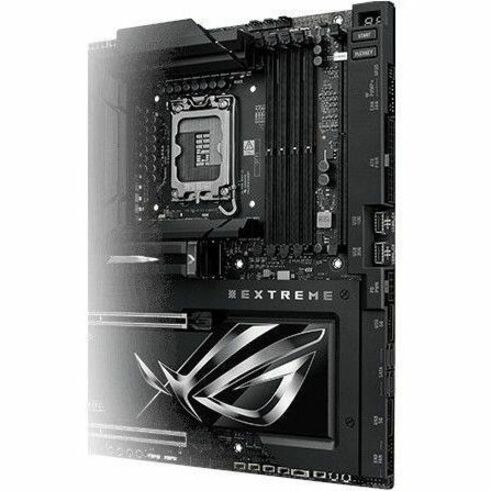

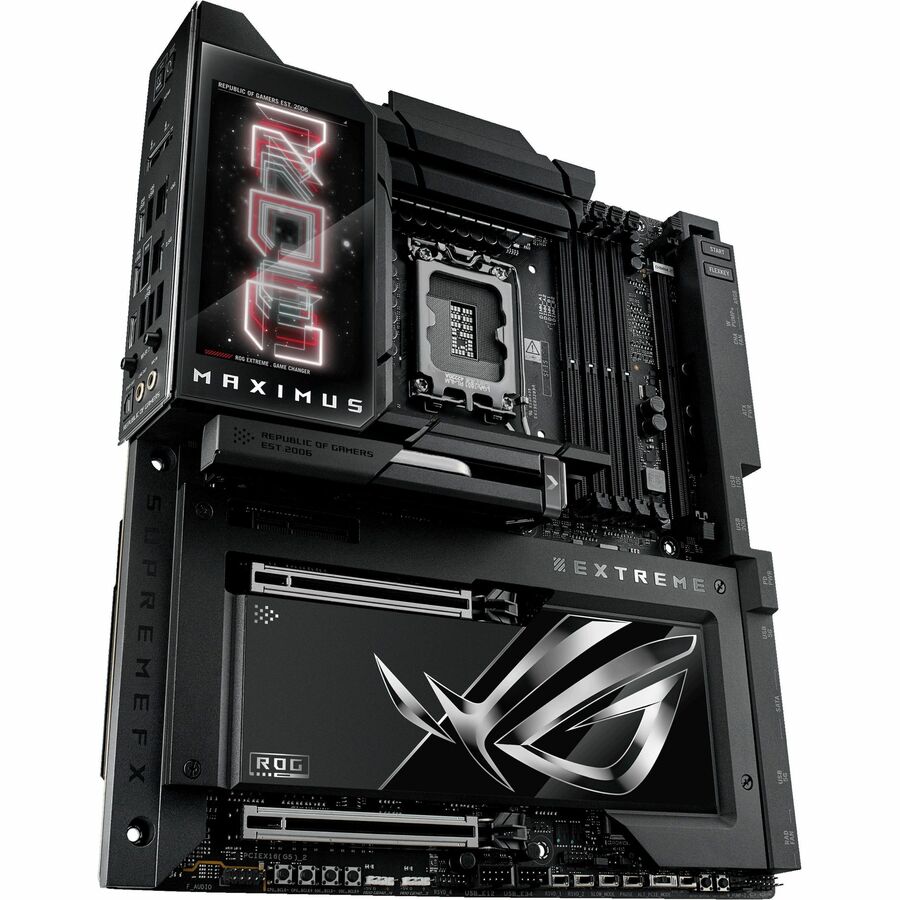

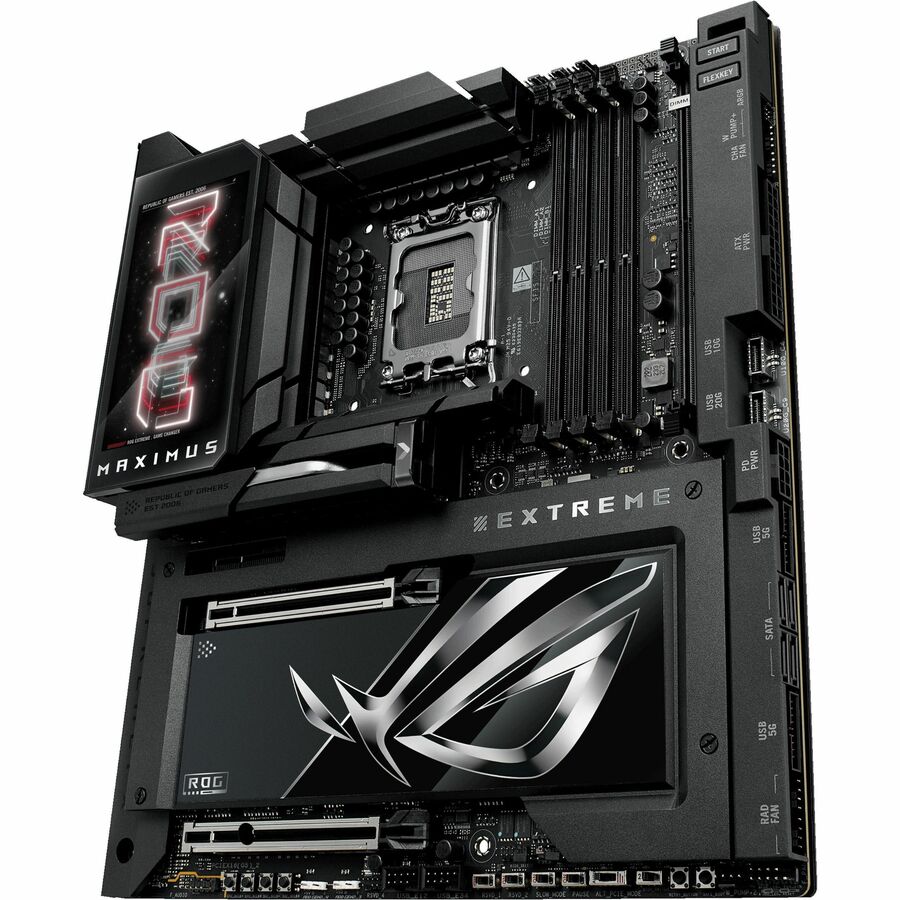

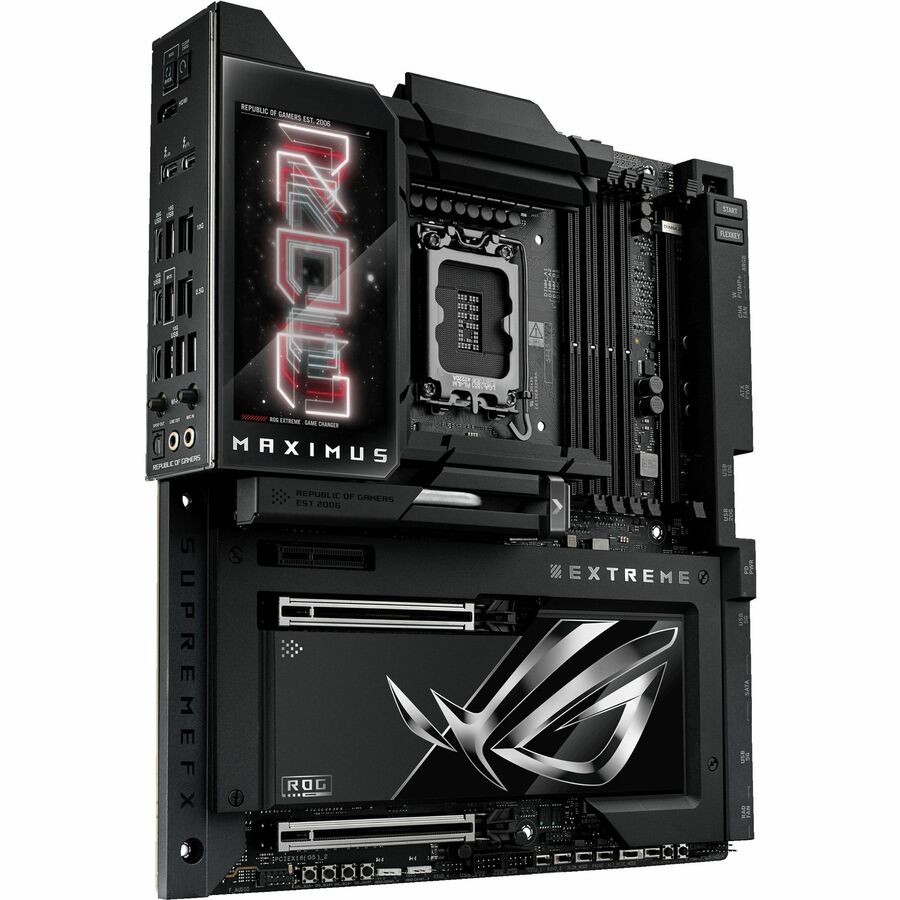

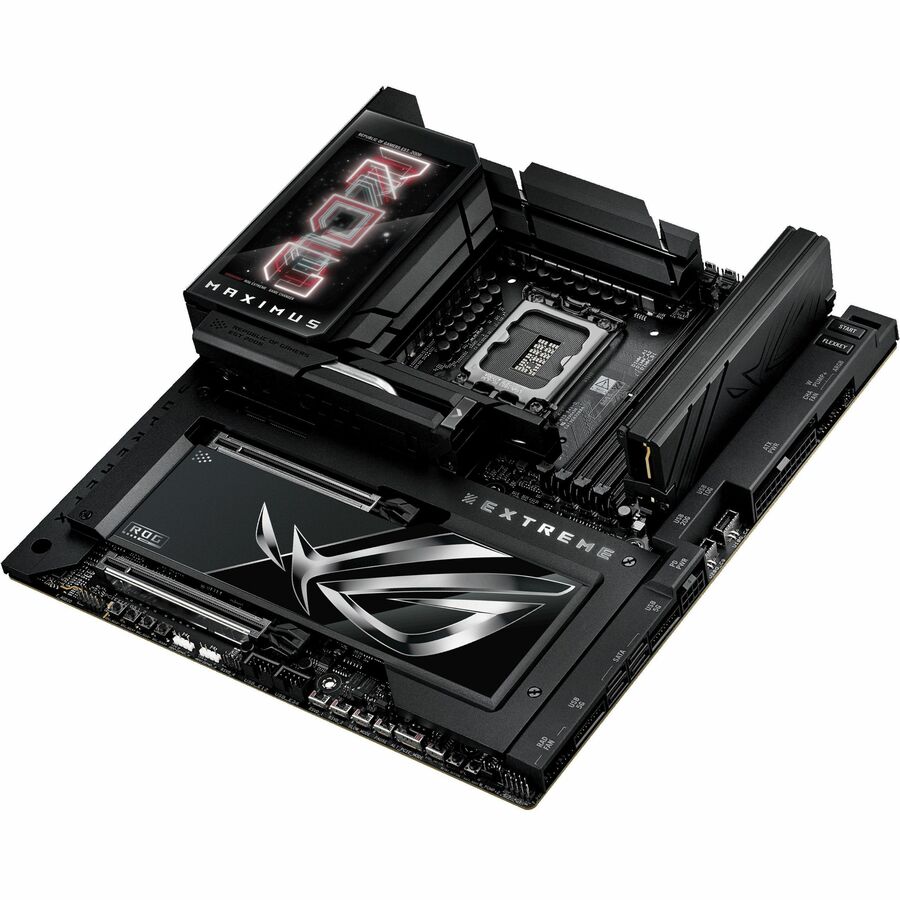

ASUS ROG MAXIMUS Z890 EXTREME LGA1851/ Intel Z890/ DDR5/ SATA3/ M.2/ E-ATX Motherboard
Mfg Part Number: ROG MAXIMUS Z890 EXTREME , Item #: 5218356
, PO and Wire.
AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed ofWiFi 7*
ai OVERCLOCKING
Tuning is now faster and smarter than ever before.
AI COOLING II
Balance the thermals and acoustics of any build with a single click.
ASUS AI ADVISOR
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple andstraightforward way
Performance
OVERCLOCKING
NPU BOOST
The integrated NPU in Intel®Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows - and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.
| General Information | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ROG MAXIMUS Z890 EXTREME |
| Manufacturer Website Address | http://usa.asus.com |
| Brand Name | Asus ROG |
| Product Model | MAXIMUS Z890 EXTREME |
| Product Name | MAXIMUS Z890 EXTREME Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| Technical Information | |
| AI-powered | Yes |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Z890 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1851 |
| Processor Supported | Core |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM |
| Memory Form Factor | DIMM |
| Maximum Memory Supported | 192 GB |
| Memory Technology | DDR5 SDRAM |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 10 |
| RAID Levels | 5 |
| RAID Levels | 1 |
| RAID Levels | 0 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| Gigabit Ethernet | Yes |
| 10Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11be |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| PCI Express Standard | PCI Express 4.0 |
| PCI Express Standard | PCI Express 5.0 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 2 |

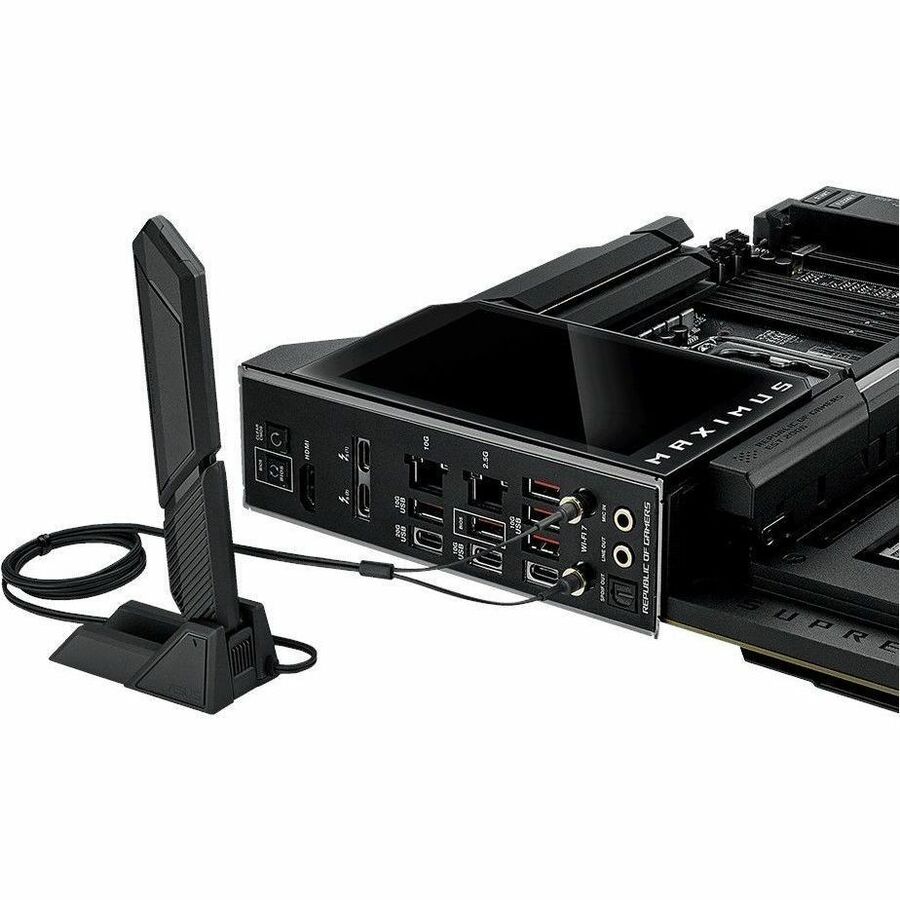

| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| S/PDIF | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| Number of Network (RJ-45) Ports | 2 |
| Thunderbolt | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 6 |
| Total Number of Onboard USB Ports | 10 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | Extended ATX |
| Width | 12" |
| Depth | 10.9" |
