CYBERPOWER

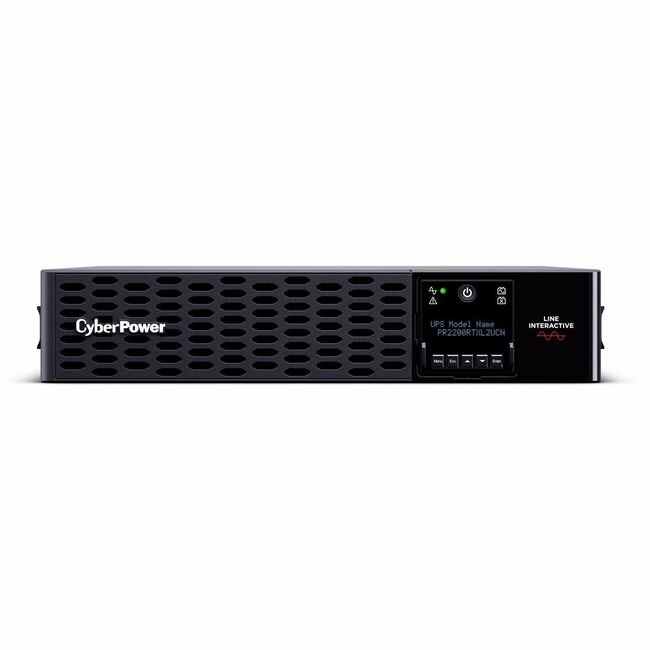

CYBERPOWER PR2200RTXL2UCN UPS 2U 8X5-20R 10FT CORD CLOUD 3YR WTY

Mfg Part Number:  PR2200RTXL2UCN
Image may not reflect the actual item.
MAP Price: $2,288.95
Quantity:
In Stock: 1
Last Updated: Feb 21, 2026
No Sales Tax except these states
, PO and Wire.

The PR2200RTXL2UCN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

The Smart App Sinewave PR2200RTXL2UCN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2200RTXL2UCN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built-in cloud monitoring.

With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR2200RTXL2UCN.

Main Specification
General Information
Manufacturer CyberPower Systems, Inc
Manufacturer Part Number PR2200RTXL2UCN
Manufacturer Website Address https://www.cyberpowersystems.com/
Brand Name CyberPower
Product Series New Smart App Sinewave UPS
Product Model PR2200RTXL2UCN
Product Name PR2200RTXL2UCN Smart App Sinewave UPS Systems
Product Type Line-interactive UPS
Technical Information
AVR Yes
Plug/Connector Type NEMA L5-30P
Receptacle Type NEMA 5-20R
Receptacle Detail 8 x NEMA 5-20R
Number of Battery & Surge Outlets 8
Number of Critical Load Outlets 4
Overload Protection Yes
Cord Length 10 ft
Transfer Time 11 ms
EMI/RFI Noise Filter Yes
Energy Saving GreenPower UPS™ Bypass Technology
Application/Usage VoIP
Application/Usage Telecommunication
Application/Usage Corporate
Application/Usage Network Device
Application/Usage Equipment
Application/Usage Storage Device
Application/Usage Server
Surge Suppression Yes
Features Audible Alarm
Power Description
Load Capacity (VA) 2200 VA
Load Capacity (Watt) 2200 W
Input Voltage 120 V AC
Input Voltage Range 100 V AC - 125 V AC
Input Voltage Range 75 V AC - 149 V AC
Output Voltage 110 V AC
Output Voltage 120 V AC
Output Voltage 100 V AC
Input Frequency 47 Hz
Input Frequency 63 Hz
Output Frequency 60 Hz
Output Frequency 50 Hz
Waveform Type Sine Wave
Surge Energy Rating 2430 J
Circuit Breaker Yes
Output Power Factor 1
Display & Graphics
Display LCD
Management
Network Management Dry Contact
Network Management SNMP/HTTP Remote Monitoring
Network Management Relay-MS Card
Alarm Over-charge
Alarm Battery Mode
Alarm Overload
Alarm Fault
Alarm Low Battery
Controls/Indicators
Status Indicators

LCD Indicators:

  • UPS Stats
  • UPS Setup
  • Control Management
  • Testing Options

LED Indicators:

  • Power On
  • Line Mode
  • Battery Mode
  • Fault
  • UPS Fault
Interfaces/Ports
Serial Port Yes
Network (RJ-45) Yes
USB Yes
EPO Port Yes
USB (HID Compliant) Port Yes
Battery Information
Number of Batteries 4
Battery Characteristics Sealed
Battery Chemistry Lead Acid
Battery Size 12V
Battery Capacity 9000 mAh
Backup/Run Time (Full Load) 3.20 Minute
Backup/Run Time (Half Load) 10 Minute
Typical Battery Recharge Time 3 Hour
Hot Swappable Yes
Replaceable Battery Yes
Environmental Conditions
Minimum Operating Temperature 32°F (0°C)
Maximum Operating Temperature 104°F (40°C)
Storage Temperature 5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation 9843 ft
Maximum Storage Elevation 49213 ft
Operating Humidity 0% - 95%
Storage Relative Humidity 0% - 95%
Sound Emission (A-Weighted) 57.5 dB(A)
Thermal Dissipation 39.56 W
Physical Characteristics
Color Family Black
Product Color Black
Height 3.4"
Width 17.1"
Depth 19.7"
Rack Height 2U
Form Factor Tower/Rack Convertible
Weight (Approximate) 79.60 lb
Miscellaneous
Additional Information
  • Active PFC Compatible : Yes
  • Energy Saving : GreenPower UPS™ Bypass Technology
  • Energy Star Certified : Yes
  • UPS Topology : Line Interactive
  • Battery Quantity : 4
  • Battery Size : 12 V / 9 Ah
  • Battery Type : Sealed Lead-Acid Battery
  • Extended Battery Module : BP48VP2U02
  • Hot Swappable : Yes
  • Replacement Battery Cartridge : RB1290X4J
  • Replacement Battery Cartridge Quantity : 1
  • Runtime at Full Load : 3.2 min
  • Runtime at Half Load : 10 min
  • Typical Recharge Time : 3 Hours (0% to 90% charged)
  • User Replaceable Battery : Yes
  • Physical Dimensions - (WxHxD) (cm) : 43.43 x 8.64 x 50.04 (cm)
  • Physical Dimensions - (WxHxD) (in) : 17.1 x 3.4 x 19.7 (in)
  • Physical Dimensions - (WxHxD) (mm) : 434 x 86 x 500 (mm)
  • Weight (kg) : 36.11
  • Weight (lb) : 79.6
  • Shipping Dimensions - (WxHxD) (cm) : 56.13 x 27.43 x 61.98 (cm)
  • Shipping - Dimensions (WxHxD, in) : 22.1 x 10.8 x 24.4 (in)
  • Shipping - Dimensions (WxHxD, mm) : 561.34 x 274.32 x 619.76 (mm)
  • Shipping - Weight (kg) : 41.1
  • Shipping - Weight (lb) : 90.6
  • Adjustable Voltage Range : 69 - 155 VAC
  • Circuit Breaker : 30 A
  • Cord Length : 10 ft (3.0 m)
  • Input Frequency Range : 47 Hz - 63 Hz
  • Input Plug Type : NEMA L5-30P
  • Input Voltage : 100 - 120 VAC
  • Input Voltage Range : 75 VAC - 149 VAC
  • Nominal Input Voltage : 100 - 120 VAC
  • Plug Style : Straight (Twist Lock)
  • Automatic Voltage Regulation : Double Boost
  • On AC WaveForm : Sine Wave
  • On Battery Frequency : 50/60 Hz ± 1%
  • On Battery Voltage : 100/110/120 VAC ± 5%
  • On Battery Waveform : Sine Wave
  • Outlets - Battery & Surge Protected : 8
  • Outlets - Critical Load : 4
  • Outlets - Total : 8
  • Outlet Type COMPUTED : 8 - NEMA 5-20R
  • Output Power Factor : 1
  • Overload Protection : Internal Circuitry Limiting
  • Typical Transfer Time : 6ms; Max 13ms at normal sensitivity
  • USB Charge Port : No
  • VA : 2200 VA
  • Watts : 2200 W
  • EMI/RFI Filtration COMPUTED : Yes
  • Surge Suppression (Joules) : 2430 J
  • EMI/RFI Filtration COMPUTED : Yes
  • Surge Suppression (Joules) : 2430 J
  • Audible Alarms : Battery Mode
  • Emergency Power Off (EPO) Port : Yes
  • HID Compliant USB Port : Yes
  • LCD : Multifunction LCD
  • LED Indicators : Power On
  • Management Cable : USB Cable
  • Serial Port : 1 Serial
  • SNMP / HTTP Remote Monitoring : Yes - RMCARD205 pre-installed
  • Software (Free Download) : PowerPanel® Business
  • Color : Black
  • Form Factor : Rack / Tower
  • Material of Construction : Metal
  • Rack Height : 2U
  • Audible noise at 1m from surface of unit : 57.5 dBA
  • Online Thermal Dissipation : 135 BTU/hr
  • Operating Elevation : 0 - 9843 ft (0 - 3000 m)
  • Operating Relative Humidity : 0 - 95 % (non-condensing)
  • Operating Temperature : 32 - 104 °F (0 - 40 °C)
  • Storage Elevation : 0 - 49213 ft (0 - 14999 m)
  • Storage Relative Humidity : 0 - 95% (non-condensing)
  • Storage Temperature : 5 - 113 °F (-15 - 45 °C)
  • Environmental : RoHS Compliant
  • Safety : UL 1778
  • CEG Amount : $400000
  • Connected Equipment Guarantee : Lifetime
  • Extended Warranty Option : WEXT5YR-U4B
  • Product Warranty : 3 Year Limited Warranty
    		•
    Certifications & Standards UL1778
    Energy Star Yes
    Environmental Compliance Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty 3 Year
    Directly Connected Equipment Guarantee $400000 Lifetime
