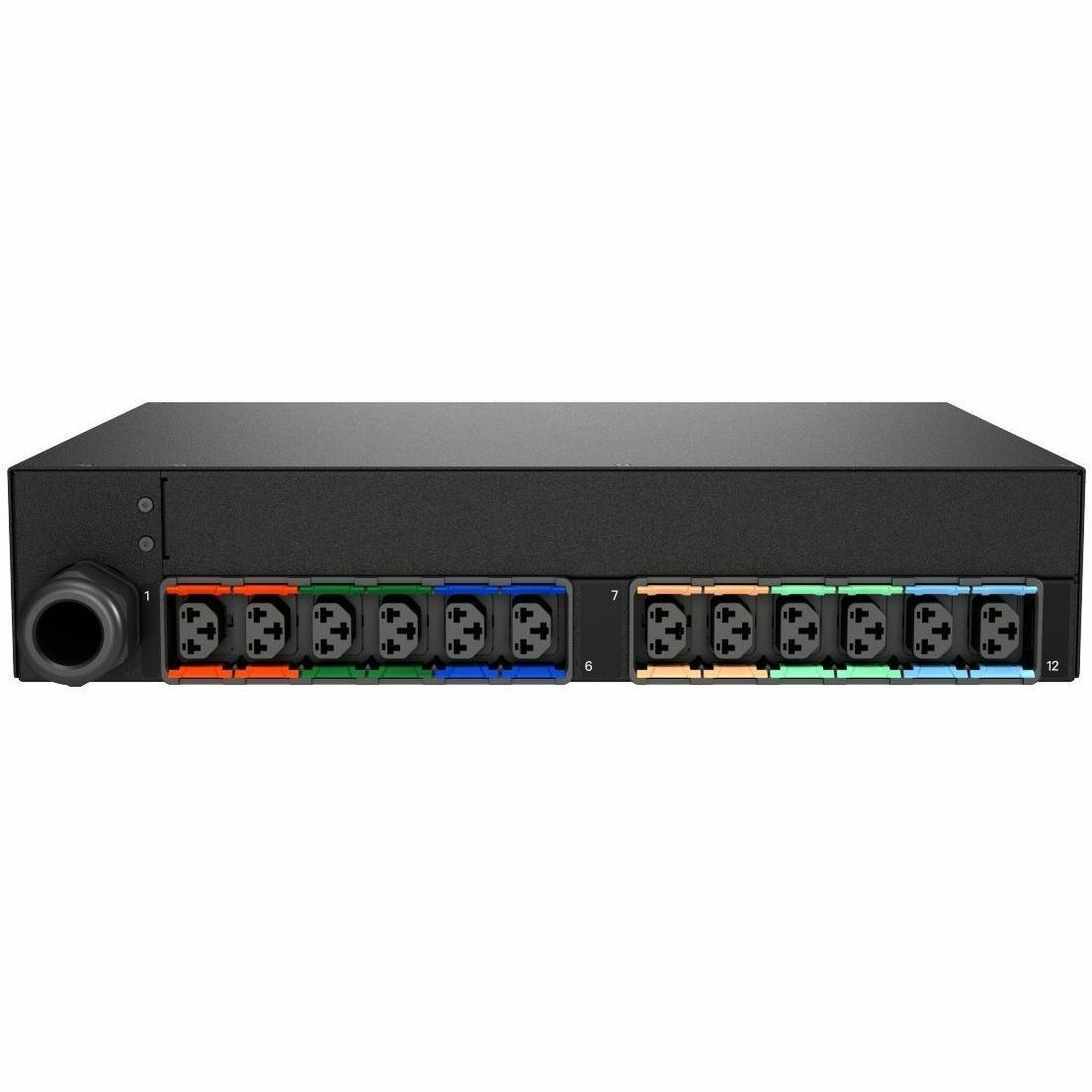

VERTIV VP6N62A0 RPDU, MONITORED OUTLET LEVEL EC, 60A, 208V DELTA, 17.2KW, HORIZONTAL, (12) COMBI
Mfg Part Number: VP6N62A0 , Item #: 5176512
Image may not reflect the actual item.
Price: $2,477.87
Quantity:
More to Come
Last Updated: Oct 27, 2025
No Sales Tax except these states
, PO and Wire.
Upgradeable Outlet Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.
Benefits
- Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime
- Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
- Fault-Tolerant
- Every unit is 100% tested for reliability and functionality. Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
- Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.
Main Specification
| General Information | |
| Manufacturer | Vertiv |
| Manufacturer Part Number | VP6N62A0 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Brand Name | Vertiv Geist |
| Product Series | rPDU |
| Product Model | MNR5MDR6-12CF18-6PS15B0H10-S |
| Product Name | rPDU MNR5MDR6-12CF18-6PS15B0H10-S 12-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Monitored |
| Phase | Three Phase |
| Plug/Connector Type | 3P+E (IP44) |
| Plug/Connector Detail | 1 x 3P+E (IP44) |
| Receptacle Type | Combination C13/C19 |
| Receptacle Detail | 12 x Combination C13/C19 |
| Protection Type | Double Pole |
| Protection Type | Overcurrent Protection |
| Features | Touch Screen Display |
| Features | LED Display |
| Load Capacity (Watt) | 17.20 kW |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Output Voltage | 208 V AC |
| Power Rating (Watt) | 17.20 kW |
| Input Current | 60 A |
| Input Frequency | 60 Hz |
| Circuit Breaker | Yes |
| Management | |
| Management |
|
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black Powder Coat |
| Mounting Orientation | Horizontal |
| Mount Type | Recess-mountable |
| Mount Type | Rack-mountable |
| Rack Height | 2U |
| Cord Length | 10 ft |
| Height | 3.4" |
| Width | 17" |
| Depth | 12" |
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Miscellaneous | |
| Application/Usage | IT Equipment |
| Certifications & Standards |
|
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
