VERTIV

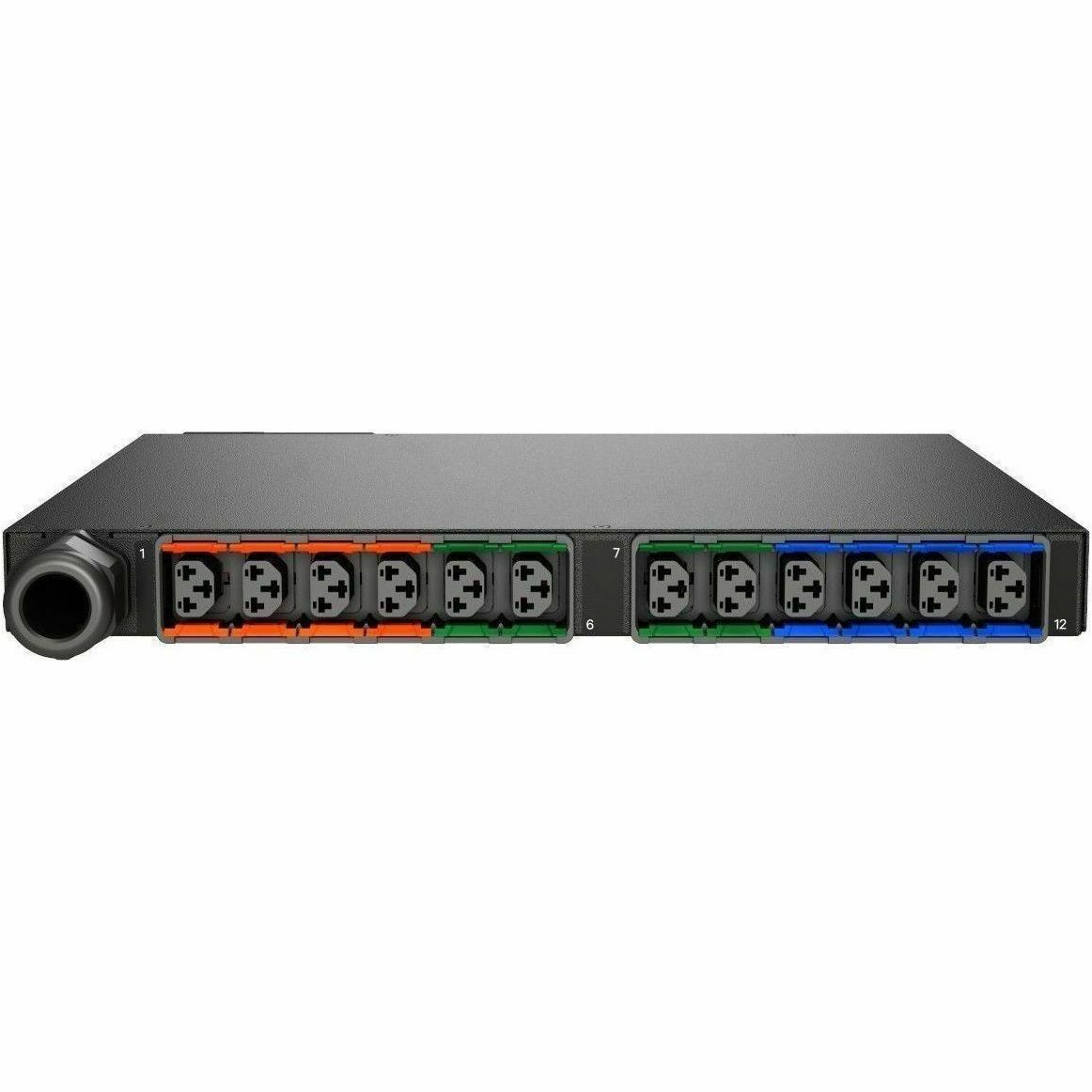

VERTIV VP7N31A2 RPDU, SWITCHED OUTLET LEVEL MONITORING EC, 30A, 120/208V WYE, 8.6KW, HORIZONTAL,
Mfg Part Number: VP7N31A2 , Item #: 5176356
Image may not reflect the actual item.
Price: $1,761.52
Quantity:
More to Come
Last Updated: Oct 24, 2025
No Sales Tax except these states
, PO and Wire.
Upgradeable Switched Outlet Level Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. With the Geist Upgradeable hot-swap technology, users may easily update the rPDU technology with the addition of the appropriate Interchangeable Monitoring Device (IMD) as business needs change.
- Benefits
- Remotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control.
- Reliable power distribution with local and remote outlet-level power monitoring options offer quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime.
- Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
- Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
- Daisy-chain up to 50 devices on a single IP address and reduce deployment time with selfconfiguration of downstream devices.
Main Specification
| General Information | |
| Manufacturer | Vertiv |
| Manufacturer Part Number | VP7N31A2 |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Brand Name | Vertiv Geist |
| Product Series | rPDU |
| Product Model | MNU5M1R6-12CF18-3TL21A0H10-S |
| Product Name | rPDU MNU5M1R6-12CF18-3TL21A0H10-S 12-Outlets PDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Switched |
| Phase | Three Phase |
| Plug/Connector Type | NEMA L21-30P |
| Plug/Connector Detail | 1 x NEMA L21-30P |
| Receptacle Type | Combination C13/C19 |
| Receptacle Detail | 12 x Combination C13/C19 |
| Protection Type | Single Pole |
| Protection Type | Overcurrent Protection |
| Features | LED Display |
| Features | Touch Screen Display |
| Load Capacity (Watt) | 8600 W |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Voltage Range | 100 V AC - 120 V AC |
| Output Voltage | 208 V AC |
| Power Rating (Watt) | 8600 W |
| Input Current | 30 A |
| Input Frequency | 60 Hz |
| Circuit Breaker | Yes |
| Management | |
| Management |
|
| Remote Outlet Switching | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black Powder Coat |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Cord Length | 10 ft |
| Height | 1.7" |
| Width | 17" |
| Depth | 12" |
| Environmental Conditions | |
| Maximum Operating Temperature | 140°F (60°C) |
| Miscellaneous | |
| Application/Usage | IT Equipment |
| Certifications & Standards |
|
| Country of Origin | United States |
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
| Additional Warranty Information | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
