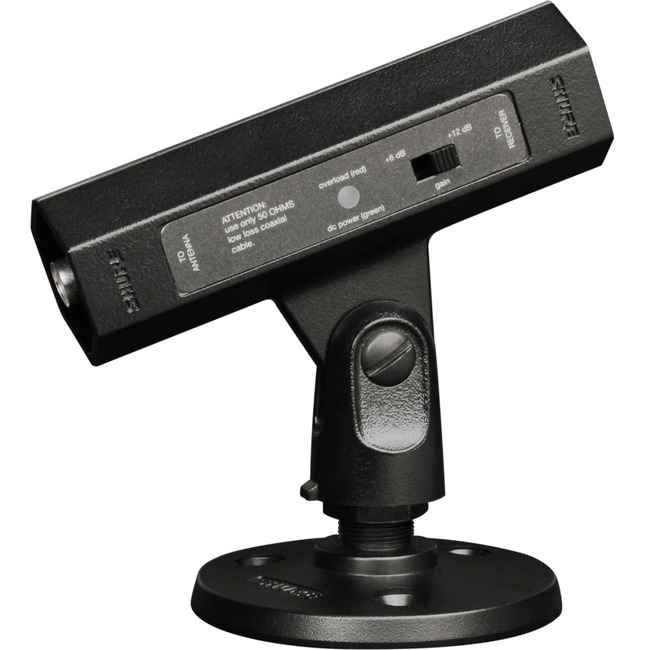

SHURE UA834V ANTENNA AMPLIFIER, 174-216 MHZ, BNC COUPLINGS ON BOTH SIDES
Mfg Part Number: UA834V , Item #: 5169784
Image may not reflect the actual item.
Price: $182.48
Quantity:
More to Come
Last Updated: Mar 07, 2026
No Sales Tax except these states
, PO and Wire.
The UA834 provides more flexibility in wireless installations by increasing the allowable length of cable runs between a receiver and antenna. Antennas may be placed closer to the stage, or installed on ceilings and walls that maintain a better line of sight with the transmitter.
Features
- Low-noise signal amplifier compensates for insertion loss in coaxial cable
- Compatible with Shure Wireless Systems. Also may be used with Shure UA845 and UA844 Antenna Distribution Systems
- Integrated threaded adapter mounts easily to microphone stands or the supplied surface-mount bracket
- Two-position gain selector switch
- LED indicator for RF signal overload
- Shure quality, ruggedness, and reliability
Main Specification
| General Information | |
| Manufacturer | Shure, Inc |
| Manufacturer Part Number | UA834V |
| Manufacturer Website Address | http://www.shure.com |
| Brand Name | Shure |
| Product Model | UA834 |
| Product Name | UA834 In-Line Antenna Amplifier |
| Product Type | Signal Amplifier |
| Technical Information | |
| Minimum Frequency | 174 MHz |
| Maximum Frequency | 216 MHz |
| Indicator Light | Yes |
| Interfaces/Ports | |
| BNC In | Yes |
| Number of BNC Inputs | 1 |
| Power Description | |
| Input Voltage | 15 V DC |
| Physical Characteristics | |
| Product Color | Black |
| Product Material | Cast Aluminum |
| Height | 4.3" |
| Width | 1.3" |
| Depth | 4.4" |
| Weight (Approximate) | 14.82 oz |
| Miscellaneous | |
| Package Contents |
|
