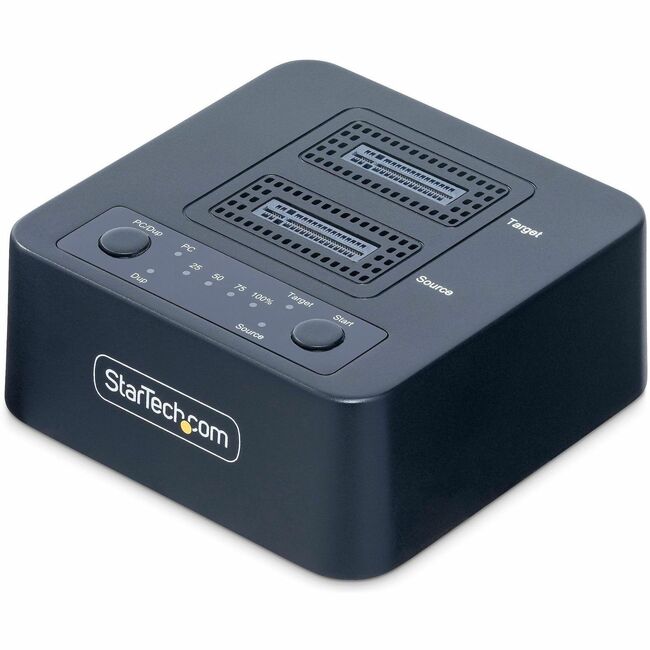

STARTECH M2-HDD-DUPLICATOR-N1 1:1 M.2 NVME DUPLICATOR - M.2 SSD CLONER AND DRIVE DOCK

Mfg Part Number:  M2-HDD-DUPLICATOR-N1
Image may not reflect the actual item.
Price: $203.21
Quantity:
In Stock: 2261
Last Updated: Jul 13, 2025
No Sales Tax except these states
, PO and Wire.

This M.2 NVMe drive duplicator with a USB 3.2 Gen2x2 (20Gbps) host port offers high-speed duplication capabilities of up to 90GB per minute, providing efficient and fast cloning of storage devices.

High-Speed M.2 NVMe Duplication

Clone or duplicate M.2 NVMe solid-state drives (SSDs) without the need for a computer. This device requires no drivers or software and offers high-performance sector-by-sector duplication rates of up to 90GBpm and works with any file format, copying the entire drive.

NVMe Drive Access over USB 3.2 Gen2x2

The USB 20Gbps host connection enables external access and storage functionality for M.2 NVMe drives, facilitating data transfer between different computers without the need for internal drive installation.

Compact and User-Friendly

The device has a small form factor, requiring minimal desktop or storage space. LEDs display progress, status, and power, while an audible buzzer confirms duplication completion. The device features active and passive cooling to ensure optimal performance.

The top-loading (toaster-style) design accommodates all PCIe M.2 (M-Key) drives, including those with pre-installed heat sinks. The device supports 4Kn sector size. Please note that the target disk must be equal to or larger than the source disk.

Main Specification
General Information
Manufacturer StarTech.com
Manufacturer Part Number M2-HDD-DUPLICATOR-N1
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name Solid State Drive Duplicator
Product Type Solid State Drive Duplicator
Technical Information
Operation Type Standalone
Number of Source Drives Supported 1
Number of Destination Drives Supported 1
Maximum Data Transfer Rate 12 Gbit/s
Interfaces/Ports
Drive Interface PCI Express NVMe
Host Interface USB 3.2 Gen 2x2 Type C
Power Description
Input Voltage 120 V AC
Input Voltage 230 V AC
Physical Characteristics
Color Family Black
Product Color Black
Form Factor Compact
Height 1.7"
Width 3"
Depth 3"
Weight (Approximate) 4.60 oz
Miscellaneous
Package Contents
  • Solid State Drive Duplicator
  • 1 x 3ft (1m) USB-C to USB-C Cable
  • 1 x 3ft (1m) USB-A to USB-C Cable
  • 1 x Universal Power Adapter (NA/EU/UK/ANZ)
  • 1 x Quick-Start Guide
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty 2 Year
WARNING:: The plastic used in cable products can expose you to lead and lead components, chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
