VERTIV EXSV-40KTN EXS 40KVA UPS (40KVA FRAME) WITH INTERNAL VRLA BATTERY, TOP FAN VENTING, AND IS-

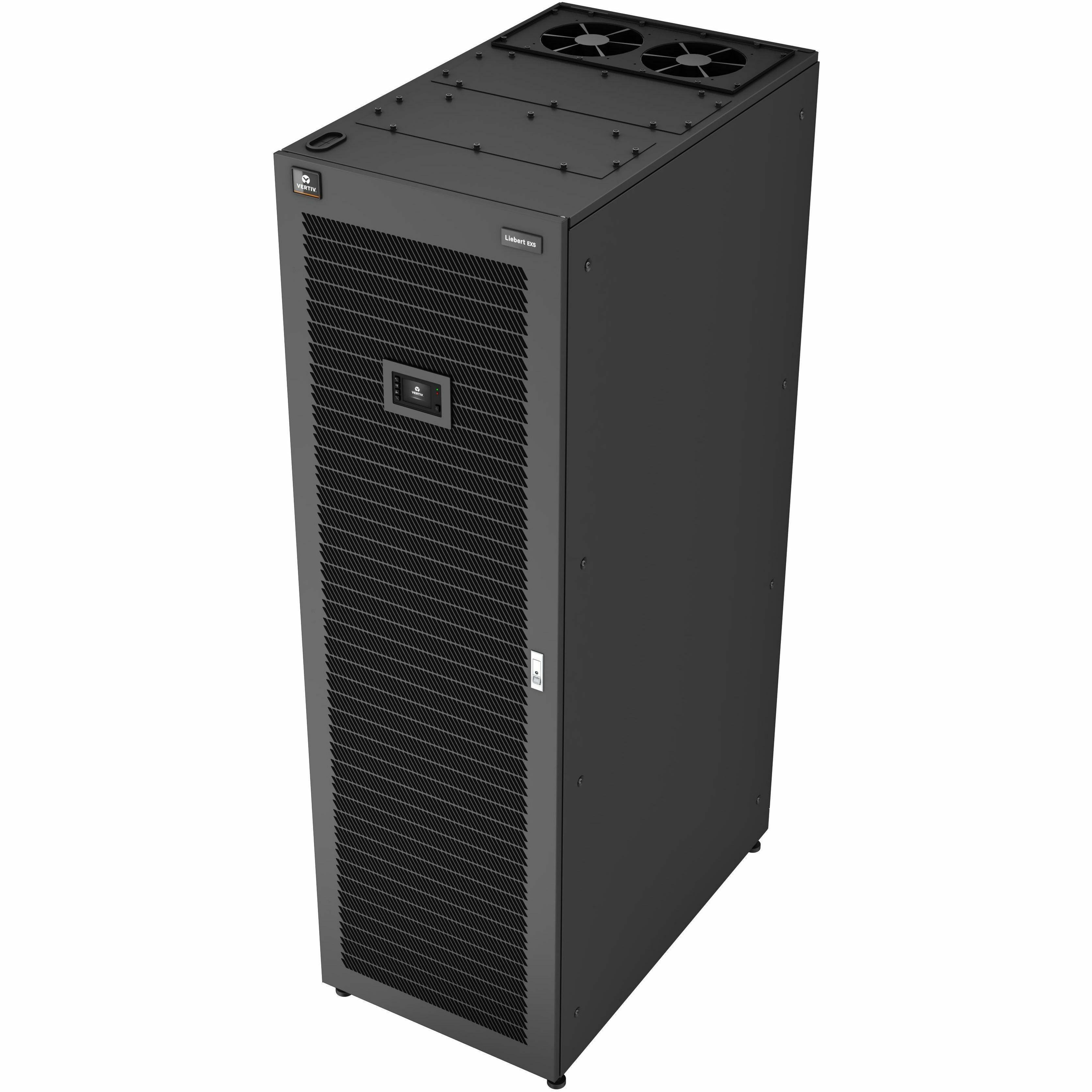

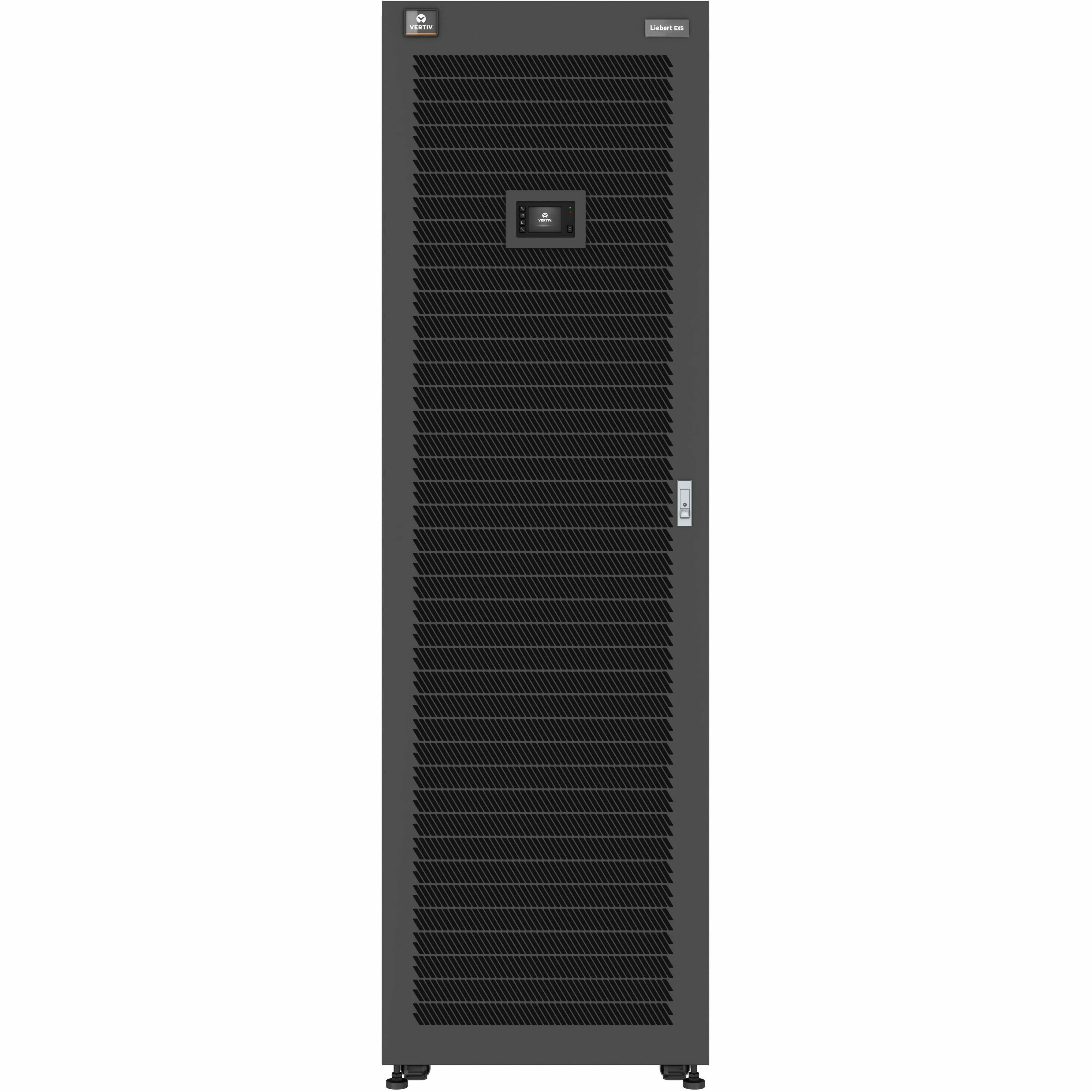

The Vertiv Liebert EXS V-Model (EXSV-40KTN) is a compact monolithic uninterruptible power system (UPS) that employs true on-line, double-conversion technology that continuously conditions and regulates its output voltage. The Liebert EXS V-Model is designed to supply computers, servers, networking, and other sensitive equipment with clean sine wave input power. It is ideally suited to power IT devices in small data rooms, IT closets, VoIP, ISDN, storage, and security systems. It offers economical, efficient, and reliable three-phase power for critical loads up to 40kVA. This intelligent UPS has flexible UPS, power distribution and battery arrangements to meet capacity and runtime demands. It has an integrated maintenance bypass cabinet, which ensures critical loads operate even during service. It has unity power factor and high power-density in an optimized design and standalone unit. It is easy to install and operate.

More from the Manufacturer

General Information
Manufacturer	Vertiv
Manufacturer Part Number	EXSV-40KTN
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Vertiv Liebert
Product Series	EXS
Product Model	EXSV-40KTN
Product Name	EXSV-40KTN 40kVA Tower UPS
Product Type	Double Conversion Online UPS
Technical Information
Plug/Connector Type	Hard Wire 4-wire (3PH + G)
Receptacle Type	Hard Wire 4-wire (3PH + G)
Receptacle Detail	2 x Hard Wire 4-wire (3PH + G)
Phase	Three Phase
Application/Usage	Data Center
Application/Usage	Retail
Application/Usage	Banking
Application/Usage	Healthcare
Application/Usage	Storage Device
Application/Usage	Medical
Application/Usage	Manufacturing Facility
Application/Usage	VoIP
Application/Usage	IT
Application/Usage	Server
Application/Usage	Security System
Application/Usage	IT System
Application/Usage	Medical Equipment
Power Description
Load Capacity (VA)	40 kVA
Load Capacity (Watt)	40 kW
Input Voltage	120 V AC
Input Voltage	230 V AC
Output Voltage	127 V AC
Output Voltage	220 V AC
Output Voltage	120 V AC
Output Voltage	208 V AC
Input Frequency	70 Hz
Input Frequency	60 Hz
Input Frequency	40 Hz
Output Frequency	60 Hz
Output Power Factor	1
Management
Network Management	Modbus RS-485
Network Management	SNMP/Modbus/TCP/BacNet IP
Network Management	Intelligent Card Slot
Network Management	Relay Contact
Battery Information
Battery Characteristics	Valve-regulated
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	6 Minute
Backup/Run Time (Half Load)	18 Minute
Battery Weight	762.60 lb
Environmental Conditions
Environmental Sensors	Temperature Sensor
Environmental Sensors	Humidity Sensor
Maximum Operating Temperature	104°F (40°C)
Maximum Operating Elevation	4921 ft
Physical Characteristics
Form Factor	Tower
Height	78.7"
Width	23.6"
Depth	39.3"
Weight (Approximate)	1543 lb
Miscellaneous
Package Contents	EXSV-40KTN 40kVA Tower UPS Quick Installation Guide Vertiv™ Power Insight Management Software (free download from Vertiv.com) IS-Unity DP Communication Card Safety Instructions WEE Recycling Sheet (ISO 14001 Compliance)
Certifications & Standards	cULus (UL 1778 5th Edition) CSA No.22.2 107.3.
Software Included	Vertiv Power Insight Management
Energy Star	Yes
Environmentally Friendly	Yes
Energy Efficiency Certification	ENERGY STAR 2.0
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty	1 Year
