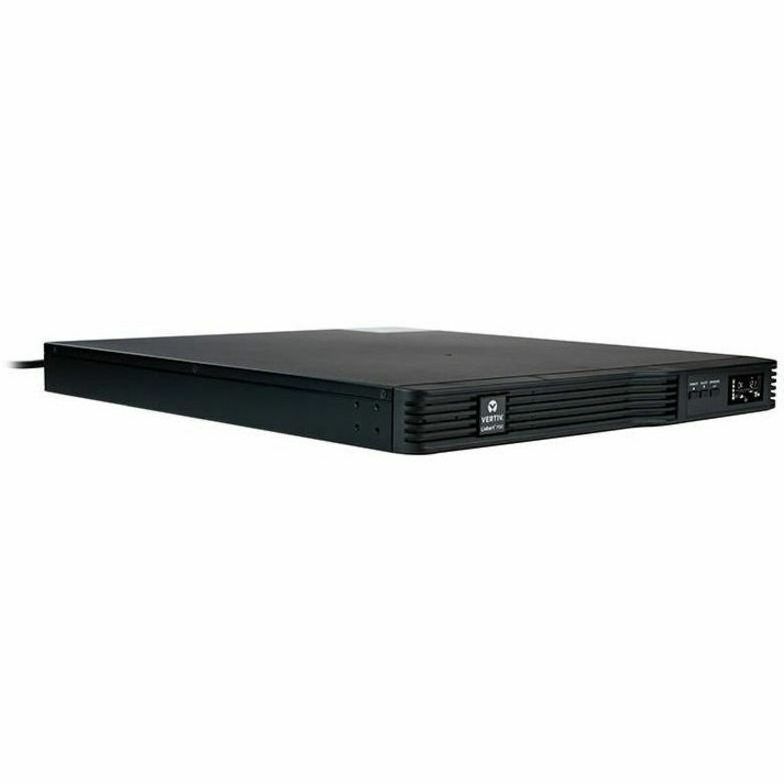

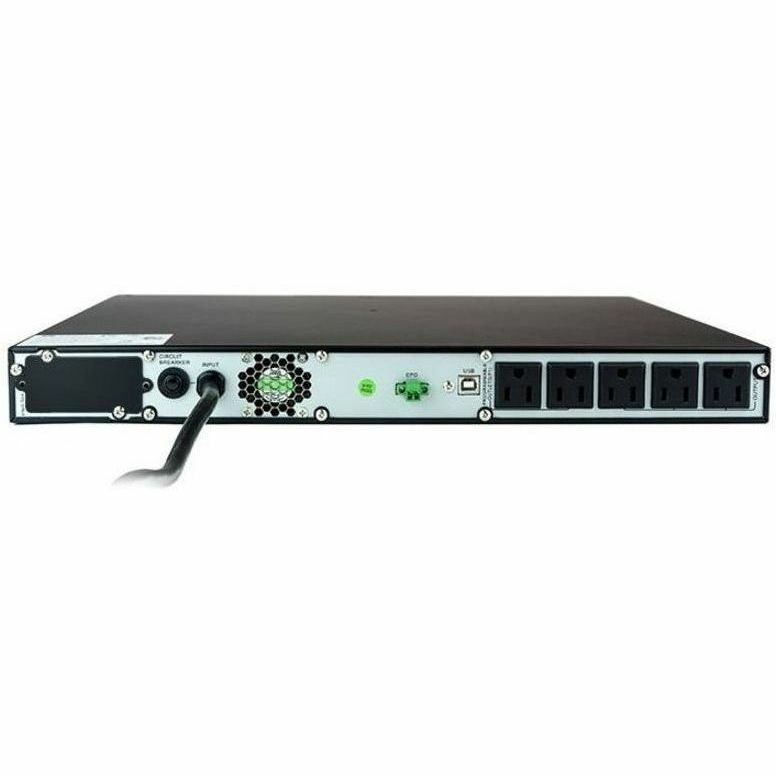

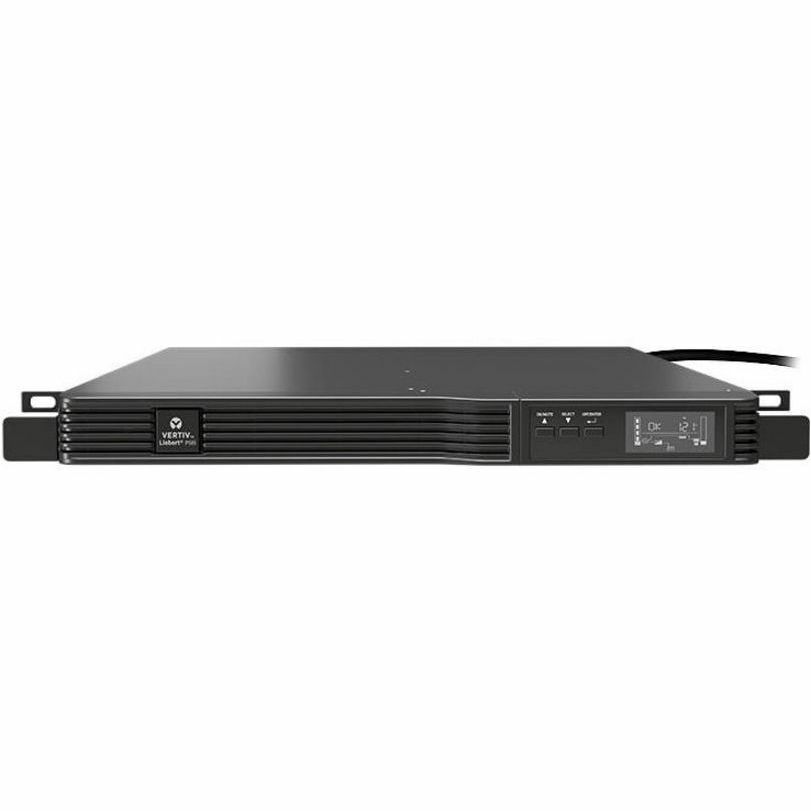

PSI5-1000RM1201UN VERTIV LIEBERT PSI5 1000VA RACKMOUNT 1U W/SNMP CARD 120V

The Vertiv Liebert PSI5 UPS (PSI5-1000RM1201UN) is designed to protect electronic devices from downtime and damage that can be caused by power outages and fluctuating utility power. The 1U rack mount UPS is ideal when rack space is limited. Automatic voltage regulation (AVR) addresses utility fluctuations keeping your system supported and extending battery life. Pure sine wave output on battery ensures the best quality of power for your equipment. This line interactive UPS ensures availability of critical IT applications in network closets and small data centers. This battery backup allows orderly shutdown of critical equipment. This model includes the Vertiv Liebert IS-UNITY-SNMP communication card to remotely monitor up to 50 UPS systems through the free Vertiv Power Insight Application. It has a 2-year Vertiv UPS warranty with optional extensions for up to 5 years total coverage.

General Information
Manufacturer	Vertiv
Manufacturer Part Number	PSI5-1000RM1201UN
Manufacturer Website Address	http://www.vertiv.com/
Brand Name	Vertiv Liebert
Product Series	PSI5
Product Model	PSI5-1000RM1201UN
Product Name	PSI5-1000RM1201UN 1000VA Rack-Mountable UPS
Product Type	Line-interactive UPS
Technical Information
AVR	Yes
AVR Range	Boost +93% / Buck -93%
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	5 x NEMA 5-15R
Cord Length	10 ft
Transfer Time	13 ms
Phase	Single Phase
Application/Usage	Office
Application/Usage	Network Closet
Application/Usage	Server
Application/Usage	Safety
Application/Usage	Storage
Application/Usage	Electronic Device
Application/Usage	Mission Critical Equipment
Application/Usage	Media Closet
Application/Usage	POS
Application/Usage	IT Equipment
Application/Usage	School
Application/Usage	Data Center
Application/Usage	Large Network Peripheral
Application/Usage	VoIP
Application/Usage	Home
Application/Usage	Network Workstation
Application/Usage	Security System
Surge Suppression	Yes
Features	Audible Alarm
Power Description
Load Capacity (VA)	1000 VA
Load Capacity (Watt)	900 W
Input Voltage	120 V AC
Input Voltage Range	0 V AC - 150 V AC
Input Voltage Range	75 V AC - 146 V AC
Output Voltage	115 V AC
Output Voltage	125 V AC
Output Voltage	120 V AC
Output Voltage	110 V AC
Output Voltage	100 V AC
Input Frequency	55 Hz
Input Frequency	65 Hz
Input Frequency	57 Hz
Input Frequency	63 Hz
Output Frequency	60 Hz
Waveform Type	Pure Sine Wave
Surge Energy Rating	1372 J
Circuit Breaker	Yes
Output Power Factor	0.9
Display & Graphics
Display	LCD
Management
Network Management	IS-UNITY-SNMP
Alarm	Overload
Interfaces/Ports
Serial Port	No
Network (RJ-45)	No
USB	Yes
EPO Port	Yes
Battery Information
Number of Batteries	4
Battery Characteristics	Valve-regulated, Non-spillable
Battery Chemistry	Lead Acid
Battery Size	6V
Battery Capacity	9000 mAh
Backup/Run Time (Full Load)	5 Minute
Backup/Run Time (Half Load)	13 Minute
Battery Life	5 Year
Typical Battery Recharge Time	6 Hour
Hot Swappable	Yes
Replaceable Battery	Yes
Environmental Conditions
Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Storage Temperature	-5°F (-20.6°C) - 122°F (50°C)
Maximum Operating Elevation	9842.52 ft
Physical Characteristics
Color Family	Black
Product Color	Black
Height	1.7"
Width	17.2"
Depth	17.7"
Rack Height	1U
Form Factor	Rack-mountable
Weight (Approximate)	36.40 lb
Miscellaneous
Package Contents	PSI5-1000RM1201UN 1000VA Rack-Mountable UPS Rack Mount Ears USB Cable Safety Manual Quick Installation Guide
Certifications & Standards	UL1778, 5th Ed. FCC Part 15 Class A ANSI C62.41 Cat. A, Level 3 ISTA 1A
Software Included	Free Download - Power Insight 2.2
Energy Star	No
Country of Origin	China
TAA Compliant	No
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	2 Year
Additional Warranty Information	2 year full (includes battery)
Directly Connected Equipment Guarantee	$400000
